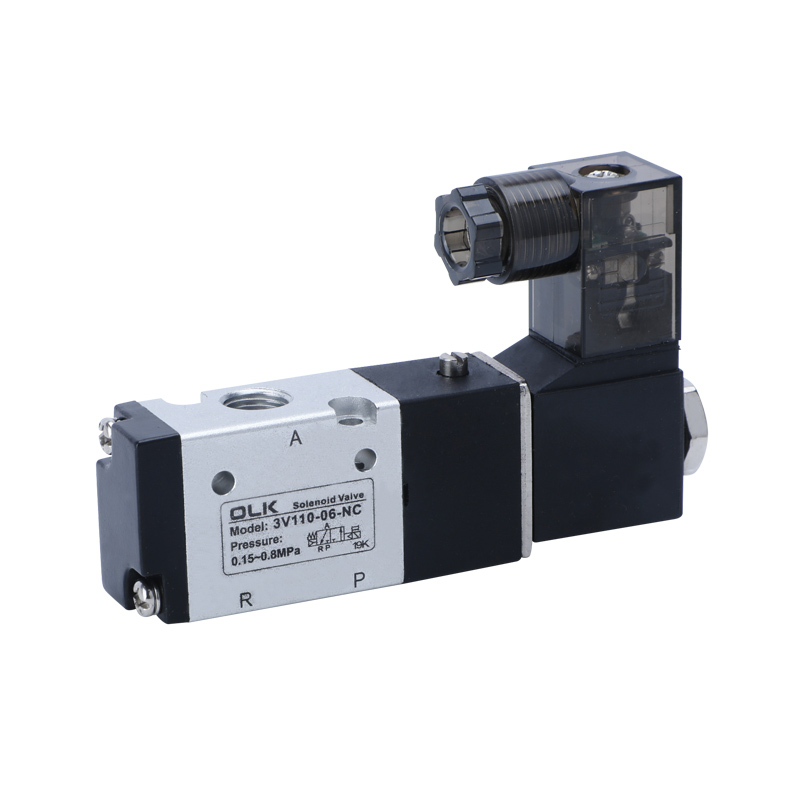

3v seri solenoid katve 3 cara

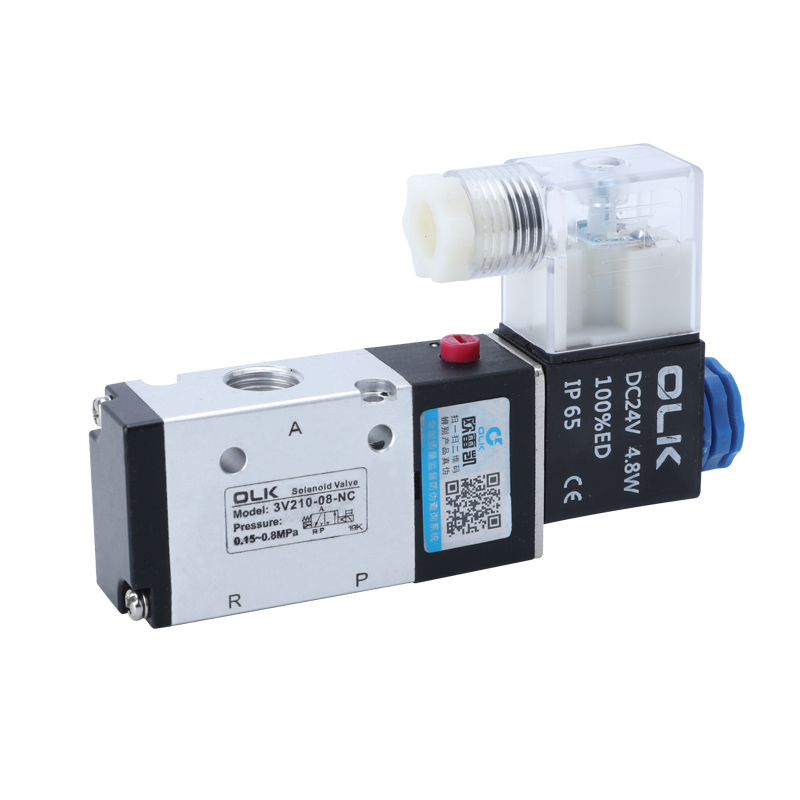

Model:3V210

Sampeyan bisa luwih yakin tuku 3v seri Solenoid Valve 3 cara saka pabrik kita lan kita bakal menehi layanan sing paling apik sawise sale lan kiriman pas wektune.

Kirim Pitakonan Unduh PDF

Deskripsi Produk

Ouang (OLK) Solenoid Valenoid Valenoid Solenoid Valenoid Valenoid 3, kalebu kategori katup sing dilakokno Pilot-Operasi, nampilake cepet respon lan operasi sing bisa dipercaya, cocog kanggo ngontrol silinder sing tunggal. Badan katup digawe saka aloi aluminium tahan karat, kanthi suhu dhuwur, kanthi cocog digunakake ing macem-macem lingkungan sing angel.

Bisa dicocogake karo skenario otomotif industri, kayata kontrol cairan lan konversi babagan macem-macem garis produksi otomatis, peralatan pneumatik, piranti medis, lsp.

Simbol:

Pesenan kode
3v	1	10	6	Ora	A
Model	Kode	Jinis katup	Ukuran Port	Tipe tumindak	Voltase	Ora: Tipe Din
3v: 2 posisi katup solenoid 3 cara	1: 100 seri	10: Tangan Solenoid Vlaveid Vlave 3/2	M5: M5	Ora: biasane ditutup	AC220V	L: jinis baris
	2: 200 seri	20: tumindak solenoid katup solenoid kaping pindho 3/2	06: G1 / 8	Ora: biasane mbukak	AC110V
	3: 300 seri		08: G1 / 4		AC24V
	4: 400 seri		10: G3 / 8		AC36V
			15: G1 / 2		DC12V
					DC24V

Ouangai Pilot-Operasi 3v Soleneid Valve 3 Cara Produk Cara

1. Konfigurasi tumindak langsung, ngalih responsif;

2. Pilihan sing kasedhiya kanggo jinis sing ditutup lan biasane;

3. Struktur mati coaxial, panyegel banget, tingkat aliran gedhe;

4. Ora perlu lubrication minyak;

5. Dilengkapi piranti manual kanggo gampang instalasi lan debugging;

6. Grosir voltase standar kasedhiya kanggo pilihan.

3v seri solenoid katve 3 cara data paramèter umum:

medium sing digunakake	Udhara (disaring liwat saringan luwih saka 40μm)
Tumindak	Jinis Pilot
Jumlah posisi	Loro posisi telung cara
Lubricating	ora perlu
Range Pressure MPA (PSI)	0.15~0.8 (21 ~ 114)
Resistensi Tekanan Dijamin	1.5MPA (215psi)
Bahan Biru	Aloi Aluminium
Voltase standar	AC220V, AC110V, AC24V, DC24V, DC12V
Gunakake Range Voltase	AC: ± 15% DC: ± 10%
Tingkat Perlindhungan	IP65 (din40050)
kelas resistance panas	Kelas b
Tipe sambungan	Tipe Soket, jinis outlet
Wektu Excitation	0,05 detik utawa kurang

3v seri solenoid katve 3 cara macem-macem parameter

model	Diameteripun port	Suhu suhu ° C	Frekuensi Olahraga Max	Aliran Cross-Sectional Area MM² (Nilai CV)	Konsumsi daya
3v110-m5	M5	-20~70	5 kaping / kapindho	5.5 (0.31)	AC: 3Va DC: 3w
3v120-m5	M5	-20~70	5 kaping / kapindho	5.5 (0.31)	AC: 3Va DC: 3w
3v110-06	G1 / 8	-20~70	5 kaping / kapindho	12.0 (0.67)	AC: 3Va DC: 3w

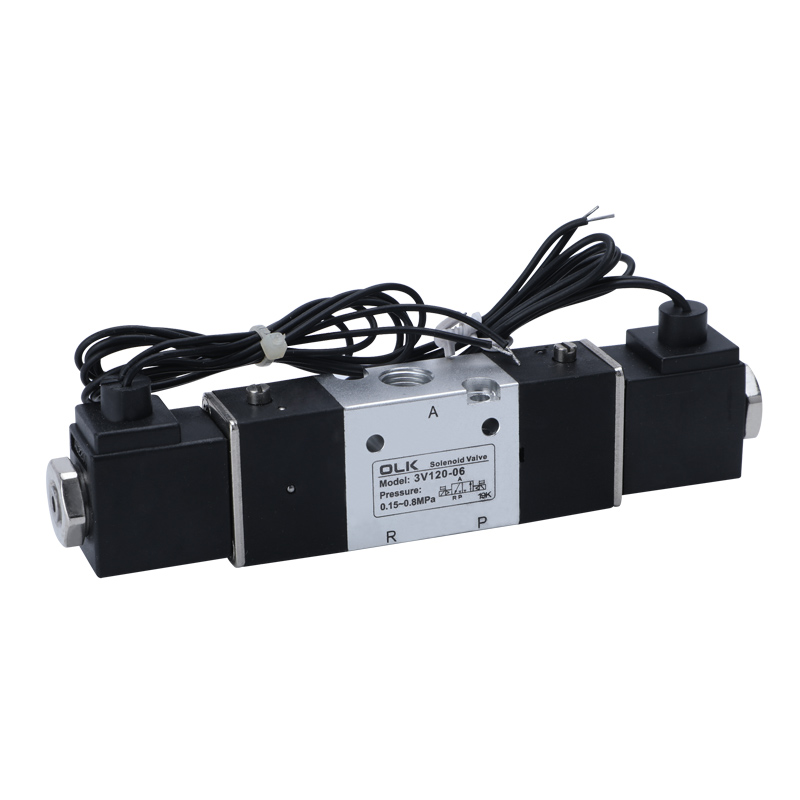

3v120-06	G1 / 8	-20~70	5 kaping / kapindho	12.0 (0.67)	AC: 3Va DC: 3w
3v210-06	Intake = outlet = g1 / 8	-20~70	5 kaping / kapindho	14.0 (0.78)	AC: 6Va DC: 4.8W
3v220-06	Intake = outlet = g1 / 8	-20~70	5 kaping / kapindho	14.0 (0.78)	AC: 6Va DC: 4.8W
3v210-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	16.0 (0.89)	AC: 6Va DC: 4.8W

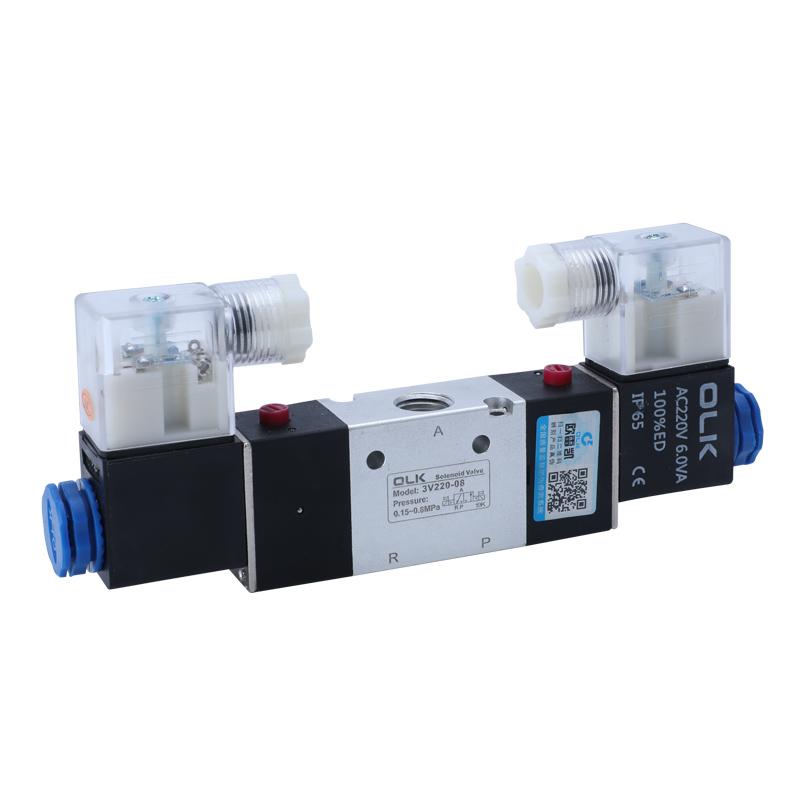

3v220-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	16.0 (0.89)	AC: 6Va DC: 4.8W
3v310-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	25,0 (1.39)	AC: 6Va DC: 4.8W
3v320-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	25,0 (1.39)	AC: 6Va DC: 4.8W
3v310-10	Intake = outlet = g3 / 8	-20~70	5 kaping / kapindho	30.0 (1.67)	AC: 6Va DC: 4.8W
3v320-10	Intake = outlet = g3 / 8	-20~70	5 kaping / kapindho	30.0 (1.67)	AC: 6Va DC: 4.8W
3v410-15	Intake = outlet = g1 / 2	-5~60	3 kaping / kapindho	50.0 (2.79)	AC: 6Va DC: 4.8W
3v420-15	Intake = outlet = g1 / 2	-5~60	3 kaping / kapindho	50.0 (2.79)	AC: 6Va DC: 4.8W
