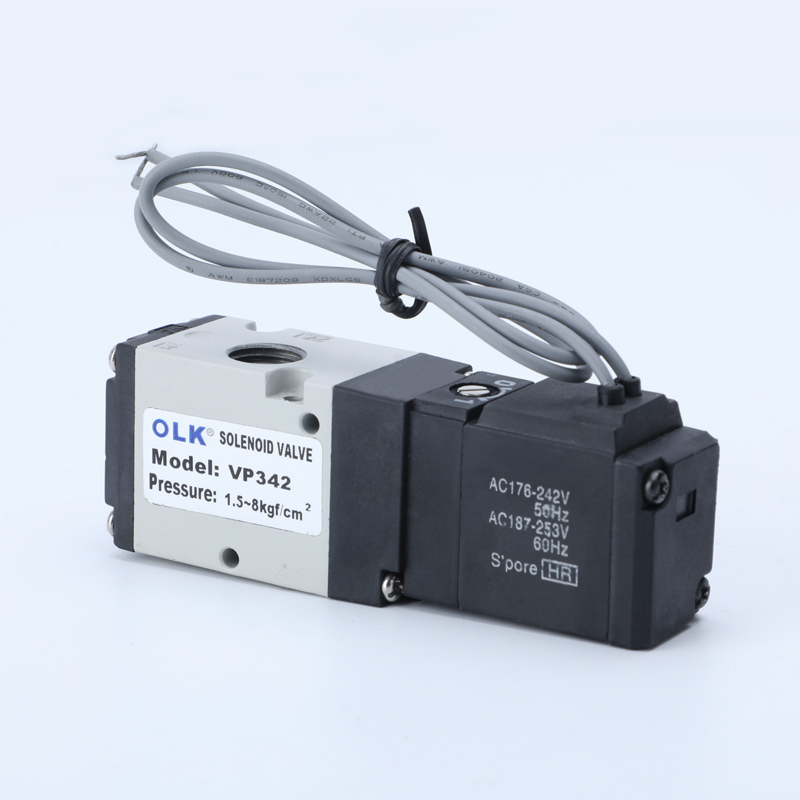

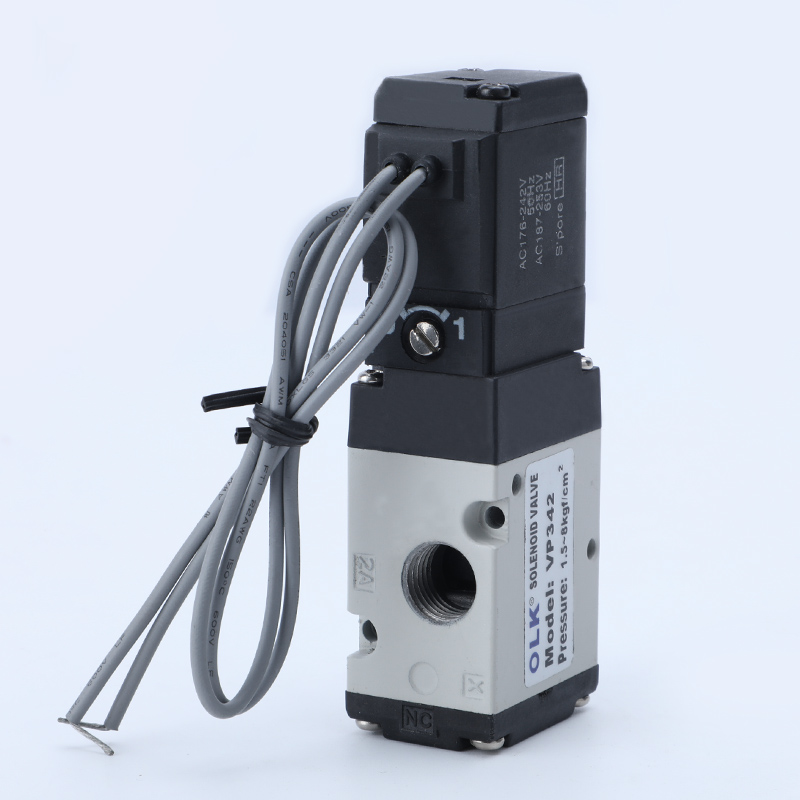

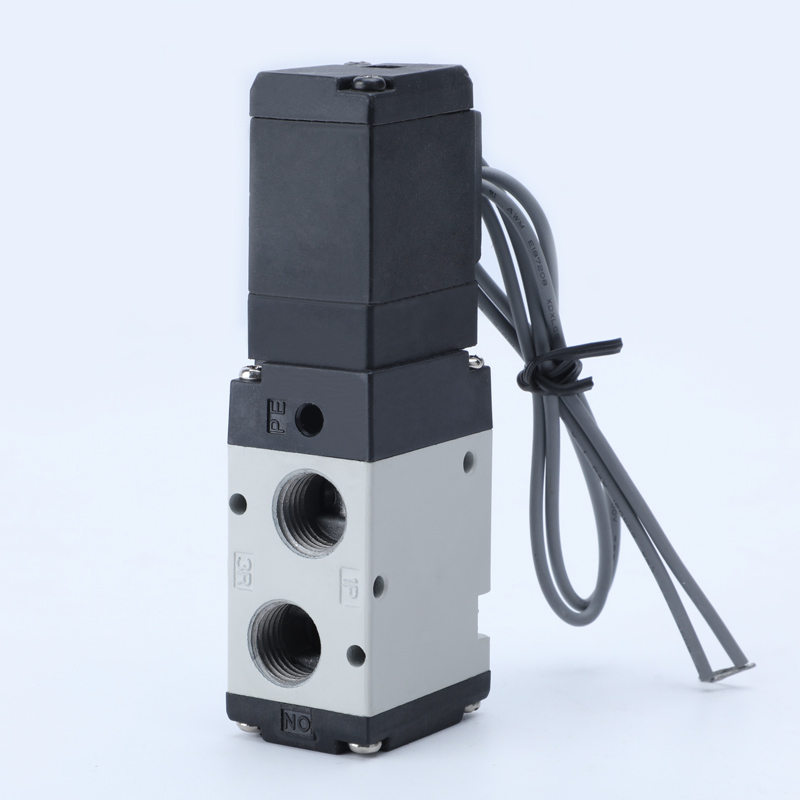

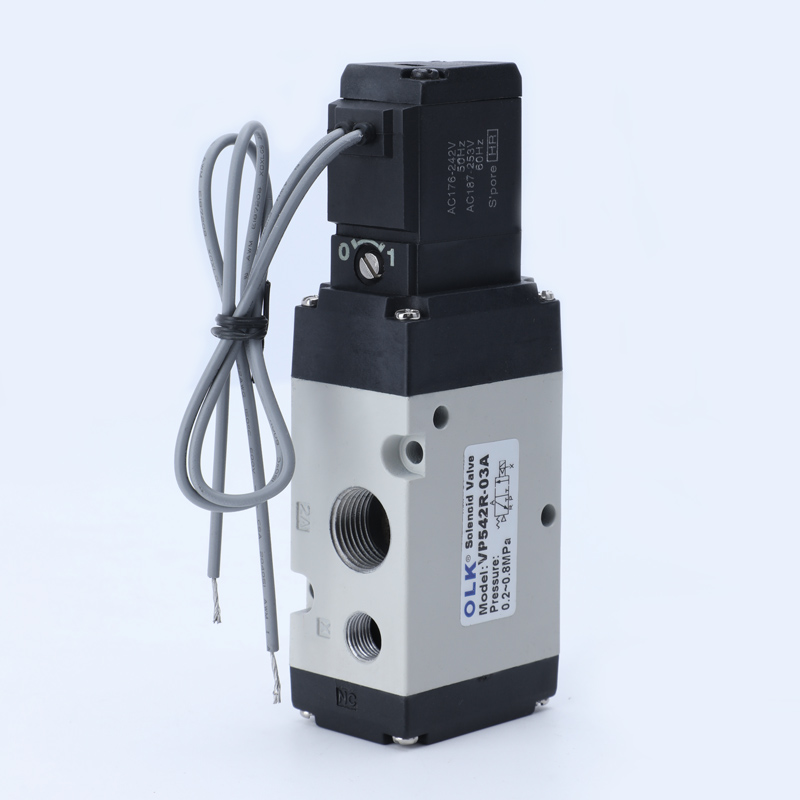

Ouleikai (OLK) VP Series Solenoid Valve 3 Way kasedhiya ing rong jinis kontrol: pilot internal lan pilot eksternal. Fungsi sing biasane mbukak lan biasane ditutup bisa diganti kanthi ngganti arah instalasi tutup ngisor. Seri VP nawakake macem-macem voltase standar kanggo pilihan.
Wigati! Aja nggunakake voltase ngluwihi kisaran sing ditemtokake kanggo ngindhari bebaya safety. Yen udud ora normal, bocor, utawa anomali liyane dideteksi karo katup, langsung mandek panggunaan, pedhot sumber daya, lan hubungi personel sales perusahaan OLK kanggo ngrembug layanan sawise-sales.
SIMBOL:
| Kode pesenan |
||||||||||
| VP | 3 | 4 | 2 |
|
1 | G | B |
|
A | |
| VP SERI | 3:3 SERI | Tipe akting |
|
MODE POILT | Tegangan | Metode Wiring |
Ngunci Alat Debug |
UKURAN PORT |
|
|
|
|
5:5 SERI | NC/NO |
|
Kosong: pilot internal | A: AC220V | G: LINE |
|
02:PT1/4 | Kosong: PT | A: NC |
|
|
|
|
|
R: pilot njaba | B: DC24V | E: Saka |
|
03:PT3/8 | T: NPT | B: ORA |
|
|
|
|
|
|
C: AC110V |
|
|
|
G: G |
|
|
|
|
|
|
|
E: AC24V |
|
|
|
|
|
|
|
|
|
|
|
F: DC12V |
|
|
|
|
|
Fitur produk:
1. mode Pilot: opsi njaba utawa internal kasedhiya.
2. struktur tutup Globe, gumunggung sealing banget, reaksi responsif, lan tingkat aliran dhuwur.
3. Operasi tanpa lubrication.
4. Integrable karo rakitan katup basa-dipasang, ngirit papan instalasi.
5. Dilengkapi piranti manual kanggo instalasi trep lan debugging.
6. Various ratings voltase standar kasedhiya kanggo pilihan.
|
medium kerja |
Udara (disaring liwat saringan luwih saka 40μm) |
|
Tumindak |
Tipe pilot |
|
nomer posisi |
Loro posisi telung cara |
|
lubricating |
ora perlu |
|
Range tekanan kerja MPa (psi) |
0.2~0.8 |
|
Dijamin tahan tekanan |
1.5MPa (215psi) |
|
Suhu kerja °C |
-10~50°C (ora beku) |
|
Frekuensi operasi MAX |
5 kaping/detik |
|
Bahan awak |
paduan aluminium |
|
Tegangan standar |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Gunakake sawetara voltase |
AC: ± 15％ DC: ± 10％ |
|
konsumsi daya |
AC: wiwitan 6VA, njaga 3VA, DC: 2.5W |
|
tingkat pangayoman |
IP65 (DIN40050) |
|
kelas tahan panas |
Kelas B |
|
Jinis sambungan |
Tipe soket DIN, jinis stopkontak |
|
Wektu kasenengan |
0,05 detik utawa kurang |
|

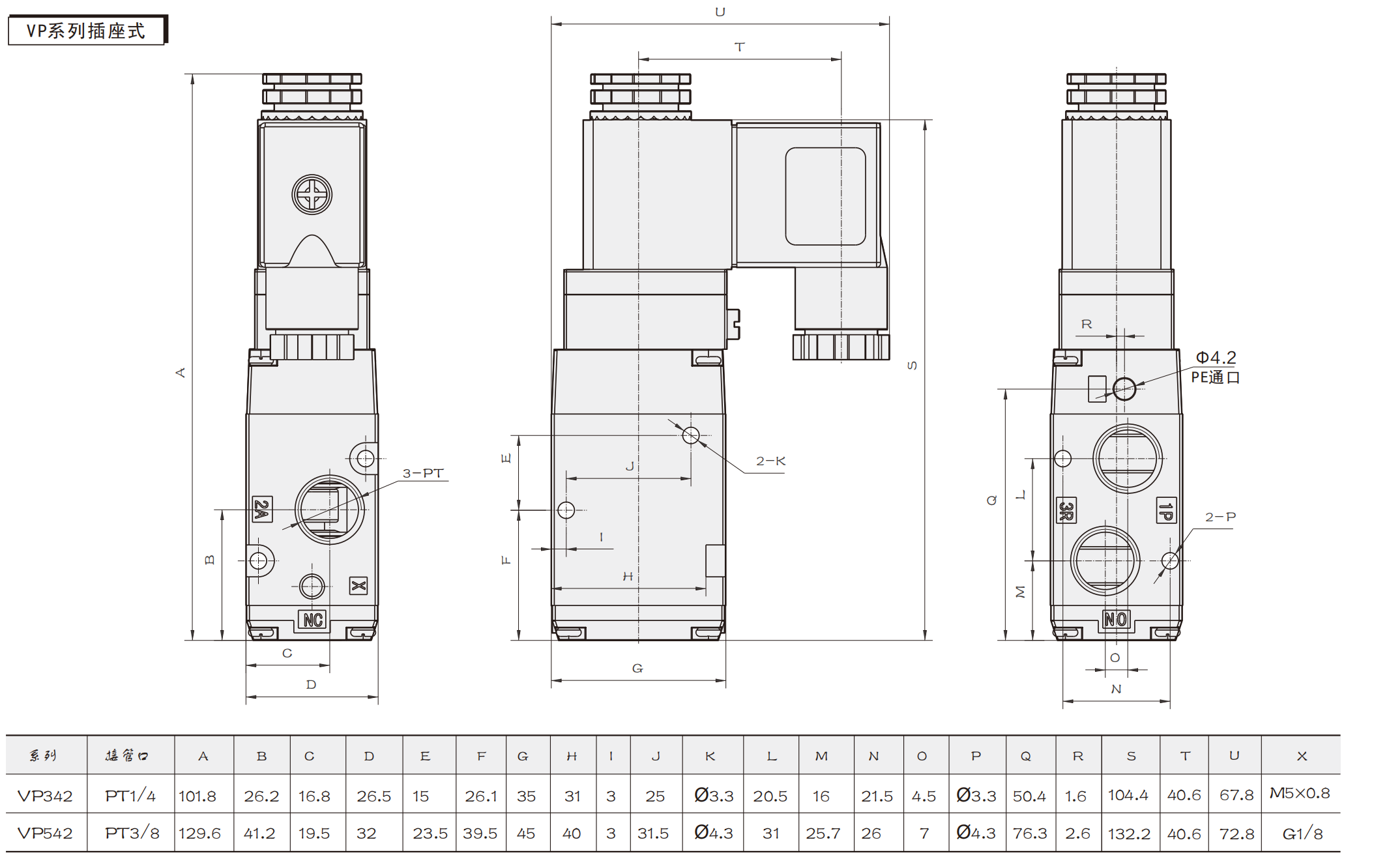

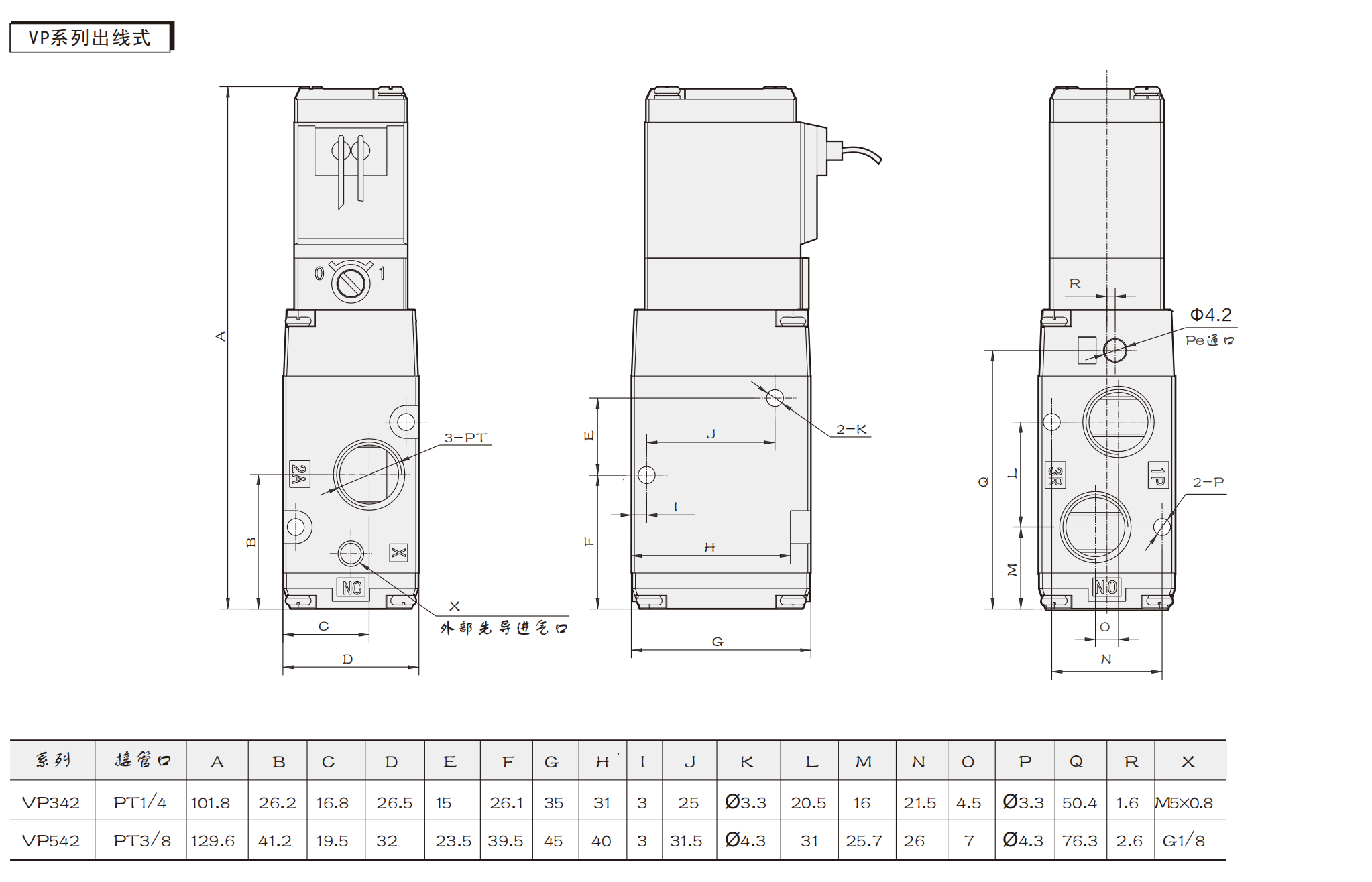

model |
Dhiameter port |
|
VP342 |
Intake = stopkontak = PT1/4 |
|
VP542 |
Intake = stopkontak = PT3/8 |
