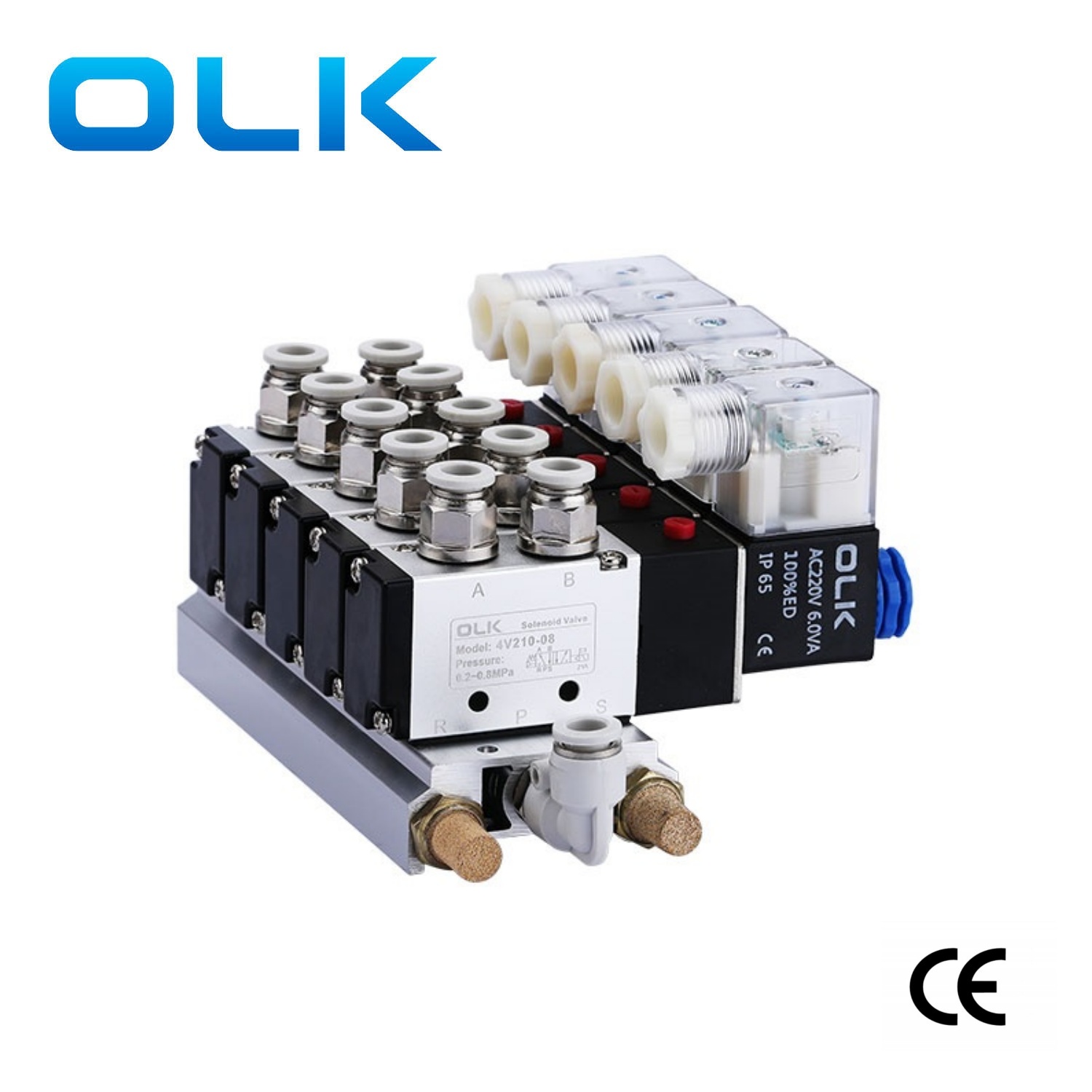

Serion 4V Solenoid katve katup 5 cara solenoid minangka valve arah cairan sing cocog kanggo udhara minangka medium sing digunakake.
Badan katup solena 5 cara 4V digawe saka campuran aluminium lan nggabungake bahan bermutu sing bermutu kayata kelas pilot pilot bledug, keprigelan pemasaran mitsubis, lan minyak pelumas sing ora bebas. Bisa njaga fungsine ing lingkungan sing digunakake. Katup iki ngalami undergone EMC lan LVD Tes Tatuhan Pematuhan lan entuk sertifikasi CE, rapat standar safety lan kualitas sing paling dhuwur.
Produk kasebut nampa warna tampilan sing disesuaikan, saéngga pangguna kanthi cepet ngerteni produk ing lingkungan sistem terpadu sing komplek.
Antarmana antarmuka standar kanggo katup solenoid seri 4V yaiku M5, G1 / 8, G3 / 8, G1 / 8, G1 / 2, kasedhiya ing Sett Di Integrasi kanthi gampang. Ana macem-macem pilihan kanggo voltase operasi, gumantung karo skenario aplikasi tartamtu, kanggo milih kekuwatan voltase sing cocog.
SERVESE4V Series Solenoid Valenoid Vallenoid Ouaikai (OLK) digunakake ing macem-macem skenario industri, auto kemasan, mesin medis, peralatan tekstil, kanthi produksi sing dipercaya.
Simbol:
| 4v | 2 | 10 | 08 | AC110V | Ex-P |
| Model | Kode | Jinis katup | Ukuran Port | Voltase | Cara wiring |
| 4v: 2 posisi 5 cara / 2 posisi 5 cara katup solenoid | 1: 100 seri | 10: Katup Solenoid Tunggal 5/2 | M5: M5X0.8 | A: AC22C | Kosong: sampeyan |
|
|
2: 200 seri | 20: Katup Solenoid Double 5/2 | 06: G1 / 8 | B: DC24V | I:Line |
|
|
3: 300 seri | 30c: Double solenoid 5/3 cara pusat ditutup | 08: G1 / 4 | C: AC110V |
|
|
|
4: 400 Sires | 30e: Pusat Exhaust Double 5/3 Cara | 10: G3 / 8 | E: AC24V |
|
|
|
|
30p: Pusat Tekanan Solenoid 5/3 Double | 15: G1 / 2 | F: DC12V |
|
|
|
|
|
|
|
|
Fitur Produk:
1. Mode pilot: Pilihan eksternal lan internal;
2 .. Struktur jinis piston, panyegel banget, tanggapan sensitif;
3. Ketemu katurahan solenoid nawakake telung fungsi tengah sing kudu dipilih:
4. Katon katup solenoid loro-posisi Dual-Kepala Feature Feature Features Feature Fitur
5. Bolongan internal sing diproses kanthi teknik khusus, resistensi geseruhan, tekanan wiwitan, urip layanan sing dawa;
6. Ora perlu lubrication minyak;

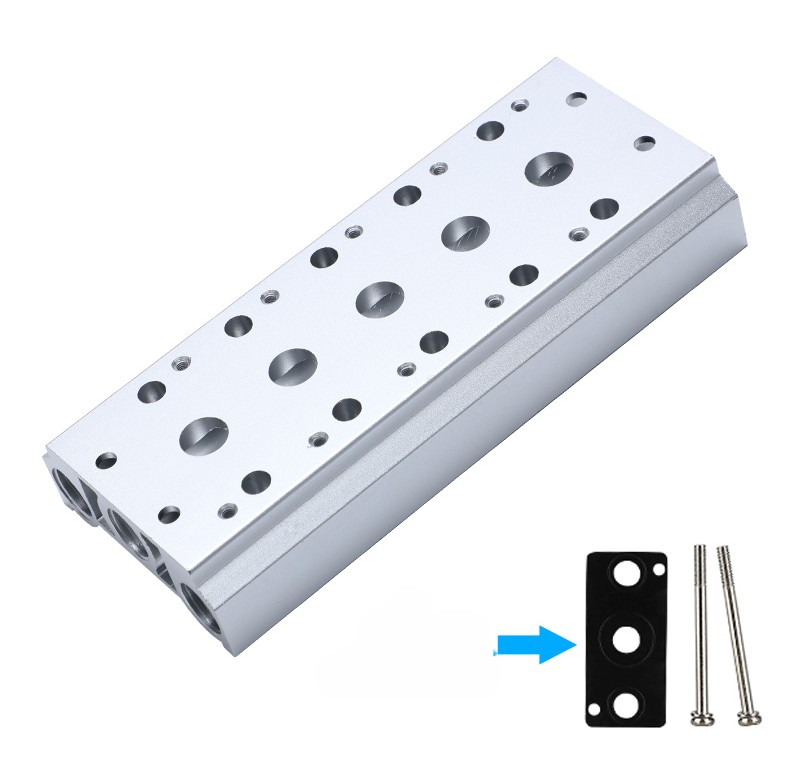

7.Nalika digabung karo Déwan Dalam Valve Déwan, Ngirit Spasi Instalasi;
8. Dilengkapi piranti manual kanggo instalasi gampang lan debugging;
9 .. Akeh tingkat voltase standar sing kasedhiya kanggo pilihan.
|
medium sing digunakake |
Udhara (disaring liwat saringan luwih saka 40μm) |
|
Tumindak |
Jinis Pilot |
|
Lubricating |
ora perlu |
|
Range Pressure MPA (PSI) |
0.15~0.8 (21 ~ 114) |
|
Resistensi Tekanan Dijamin |
1.5MPA (215psi) |
|
Suhu suhu ° C |
-20~70 |
|
Bahan Biru |
Aloi Aluminium |
|
Voltase standar |
AC220V, AC110V, AC24V, DC24V, DC12V |
|
Gunakake Range Voltase |
AC: ± 15% DC: ± 10% |
|
Konsumsi daya |
AC: 3Va DC: 3w |
|
Tingkat Perlindhungan |
IP65 (din40050) |
|
kelas resistance panas |
Kelas b |
|
Tipe sambungan |
Tipe Soket, jinis outlet |
|
Wektu Excitation |
5 kaping / kapindho |
|
model |
Diameteripun port |
Jumlah posisi |
frekuensi operasi paling dhuwur |
Wilayah salib-bagean MM² (nilai CV) |
|
4v110-m5 |
Intake = outlet = m5 |
2 posisi 5 cara |
5 kaping / kapindho |
5.5 (0.31) |
|
4v120-M5 |
Intake = outlet = m5 |
2 posisi 5 cara |
5 kaping / kapindho |
5.5 (0.31) |
|
4v130c-M5 |
Intake = outlet = m5 |
Telung posisi limang cara |
3 kaping / kapindho |
5.0 (0.28) |
|
4v130e-m5 |
Intake = outlet = m5 |
Telung posisi limang cara |
3 kaping / kapindho |
5.0 (0.28) |
|
4v130p-m5 |
Intake = outlet = m5 |
Telung posisi limang cara |
3 kaping / kapindho |
5.0 (0.28) |
|
4v110-06 |
Intake = outlet = g1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
12,0 (0.67) |
|
4v120-06 |
Intake = outlet = g1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
12,0 (0.67) |
|
4v130c-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
9.0 (0,50) |
|
4v130e-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
9.0 (0,50) |
|
4v130p-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
9.0 (0,50) |
|
4v210-06 |
Intake = outlet = g1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
14.0 (0.78) |
|
4v220-06 |
Intake = outlet = g1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
14.0 (0.78) |
|
4v230c-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v230e-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v230p-06 |
Intake = outlet = g1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v210-08 |
Inlet = outlet = G1 / 4 Exhaust = G1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
16.0 (0.89) |
|
4v220-08 |
Inlet = outlet = G1 / 4 Exhaust = G1 / 8 |
2 posisi 5 cara |
5 kaping / kapindho |
16.0 (0.89) |
|
4v230c-08 |
Inlet = outlet = G1 / 4 Exhaust = G1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v230e-08 |
Inlet = outlet = G1 / 4 Exhaust = G1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v230p-08 |
Inlet = outlet = G1 / 4 Exhaust = G1 / 8 |
Telung posisi limang cara |
3 kaping / kapindho |
12,0 (0.67) |
|
4v310-08 |
Intake = outlet = g1 / 4 |
2 posisi 5 cara |
4 / sec |
25,0 (1.40) |
|
4v320-08 |
Intake = outlet = g1 / 4 |
2 posisi 5 cara |
4 / sec |
25,0 (1.40) |
|
4v330c-08 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v330e-08 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v330p-08 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v310-10 |
Intake = outlet = g1 / 4 |
2 posisi 5 cara |
4 / sec |
30 (1.68) |
|
4v320-10 |
Intake = outlet = g1 / 4 |
2 posisi 5 cara |
4 / sec |
30 (1.68) |
|
4v330c-10 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v330e-10 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v330p-10 |
Inlet = outlet = G3 / 8 Exhaust = G1 / 4 |
Telung posisi limang cara |
3 kaping / kapindho |
18.0 (1.00) |
|
4v410-15 |
Intake = outlet = g1 / 2 |
2 posisi 5 cara |
3 kaping / kapindho |
50.0 (2.79) |
|
4v420-15 |
Intake = outlet = g1 / 2 |
2 posisi 5 cara |
3 kaping / kapindho |
50.0 (2.79) |
|
4v430c-15 |
Intake = outlet = g1 / 2 |
Telung posisi limang cara |
3 kaping / kapindho |
30 (1.68) |
|
4v430e-15 |
Intake = outlet = g1 / 2 |
Telung posisi limang cara |
3 kaping / kapindho |
30 (1.68) |
|
4v430p-15 |
Intake = outlet = g1 / 2 |
Telung posisi limang cara |
3 kaping / kapindho |
30 (1.68) |
FAQ:
1. Semono frekuensi minangka frekuensi 4v seri solenoid katup 5v?
Frekuensi aksara maksimal 5 kaping / kapindho.
2. Apa bisa seri 4v seri Solenoid 5 cara kudu suwe?
Ya, coil kita 100% ed.
3 .. Kepiye cara nambah umur katup solenoid 4v?
Pemisahan banyu minyak sing disaranake kanggo nyaring kelembapan lan reged ing udara
4. Apa koil solenoid blokir utawa antarmuka sendi?
Ora bakal kelakon amarga kumpulan bisa diatur kanthi ngilangi nut coil
5. Bedane antarane voltase AC lan DC?
DC saiki langsung, AC minangka gantian saiki. Umumé, listrik kluwarga yaiku AC220V
