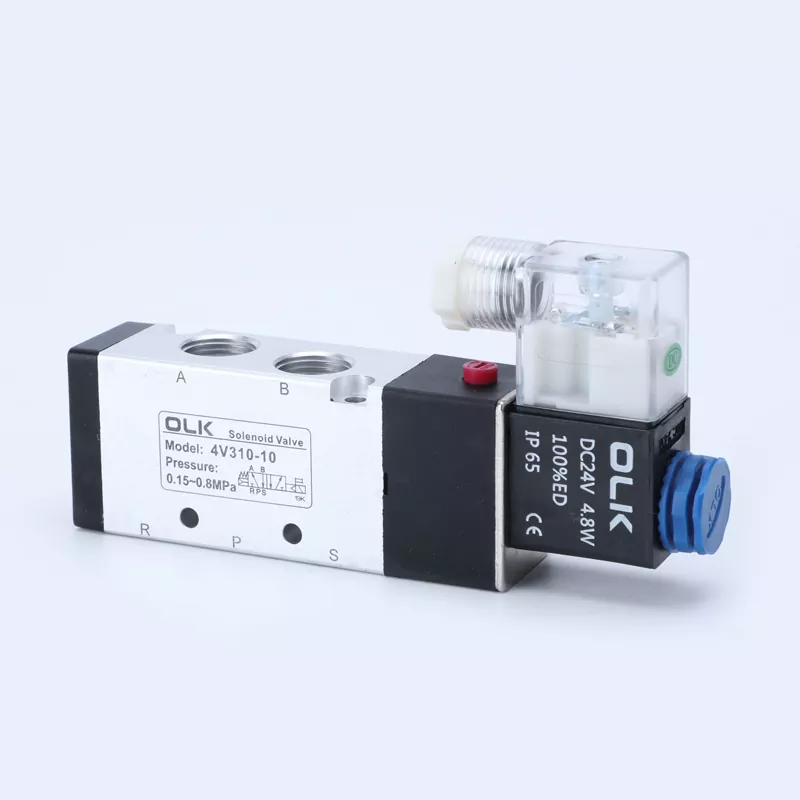

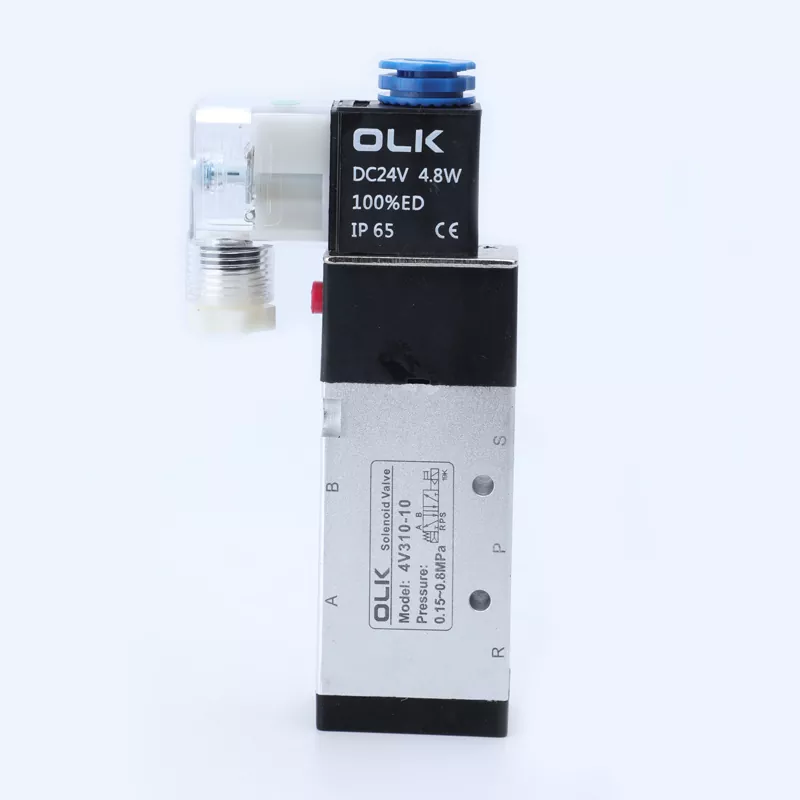

Olk 4V300 katup 5 cara, 5 / 2way, 5/3 cara katup solenio Pneumatik Katupan solenoid 4V300 lan tahan tahan, lan bisa digunakake kanggo wektu sing luwih suwe. Rintangan solenoid katup solenoid valenai cincin duwe stabilitas frekuensi dhuwur.
Tahan lama lan ora gampang / energi ngirit / energi lan rugi / Cocog kanggo macem-macem kesempatan
|
Pesenan kode |
|
|
|||
|
|
|
|
|||
|
4v |
3 |
10 |
10 |
AC110V |
|
|
Model |
Kode |
jinis katup |
Ukuran Port |
voltase |
Coil bukti jeblugan |
|

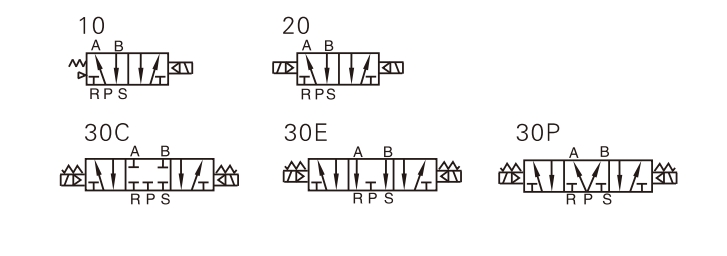

4v: Katup solenoid posisi2 (3) |
3: 300 seri |
10: Cara 5/2 Solenoid Tunggal |
08: G1 / 4 |
AC220V |
Ora: Tipe Din |
|
|
|

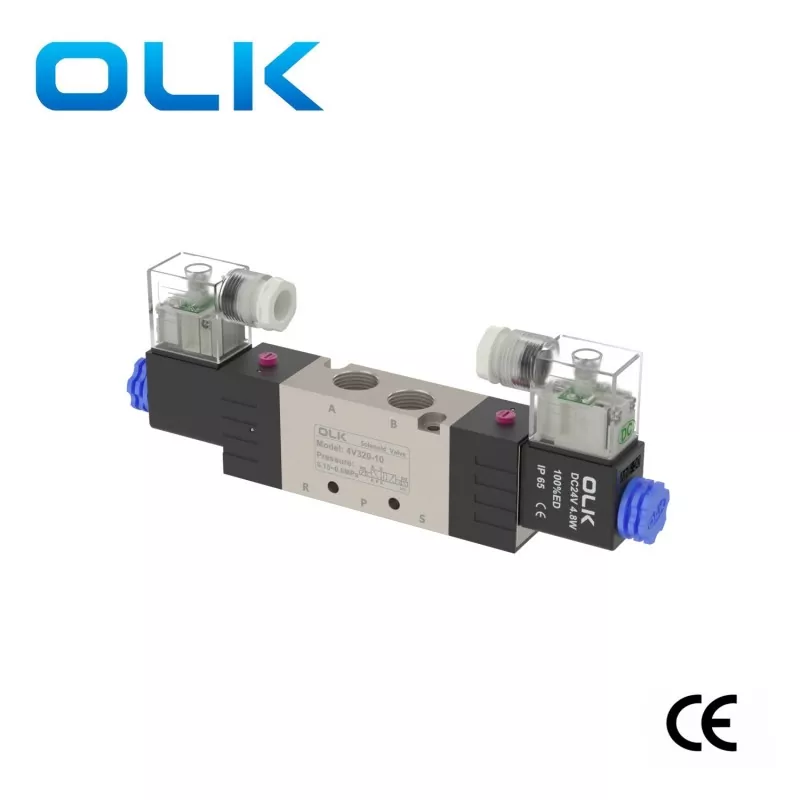

20: Katup Solenoid Double 5/2 |
10: G3 / 8 |
DC24V |
I: jinis baris |
|
|
|
30c: Pusat Tutup solenoid kaping pindho / 3way |
|
AC110V |
|
|
|
|
30e: Pusat Exhaust kaping pindho solve5 / 3way |
|
AC24V |
|
|
|
|
30p: Double solenoid katup katuron 5/3 cara tekanan |
|
DC12V |
|
|
Model |
4v310-08 4V320-08 |
4v330-08 4V330e-08 4V330p-08 |
4v310-10 4V320-10 |
4v330c-10 4V330e-10 4V330p-10 |
|
Medium sing digunakake |
Air (Filter liwat layar Filter saka 40μm) |
|||
|
Mode aksi |
Jinis Pilot Internal |
|||
|
Ukuran Port |
Inlet = outlet = port exhaust = g1 / 4 |
Inlet = outlet == G1 / 8 exhaust port = g1 / 4 |
||
|
Wilayah salib-efektif |
25mm² (CV = 1.4) |
18.bmm² (cv = 1) |
30.0mm² (CV = 1.68) |
18.bmm² (CV = 1.0) |
|
Posisi |
5/2 port |
5/3 port |
5/2 port |
5/2 port |
|
Range Tekanan |
0.15-0.8 MPA (21-14psi) |
|||
|
Meksa bukti |
1.5MPA (215psi) |
|||
|
Meksa kerja |
'-20-70 ℃ |
|||
|
Bahan Biru |
Aloi Aluminium |
|||
|
Lubrication |
Ora butuh |
|||
|
Frekuensi maksimal.operating |
5 kaping / kapindho |
3 kaping / kapindho |
5 kaping / kapindho |
3 kaping / kapindho |
|
Bobot |
4v310-08: 310g 4V320-08: 400g |
450 g |
4V310-10: 310g 4V320-10: 400g |
450 g |
