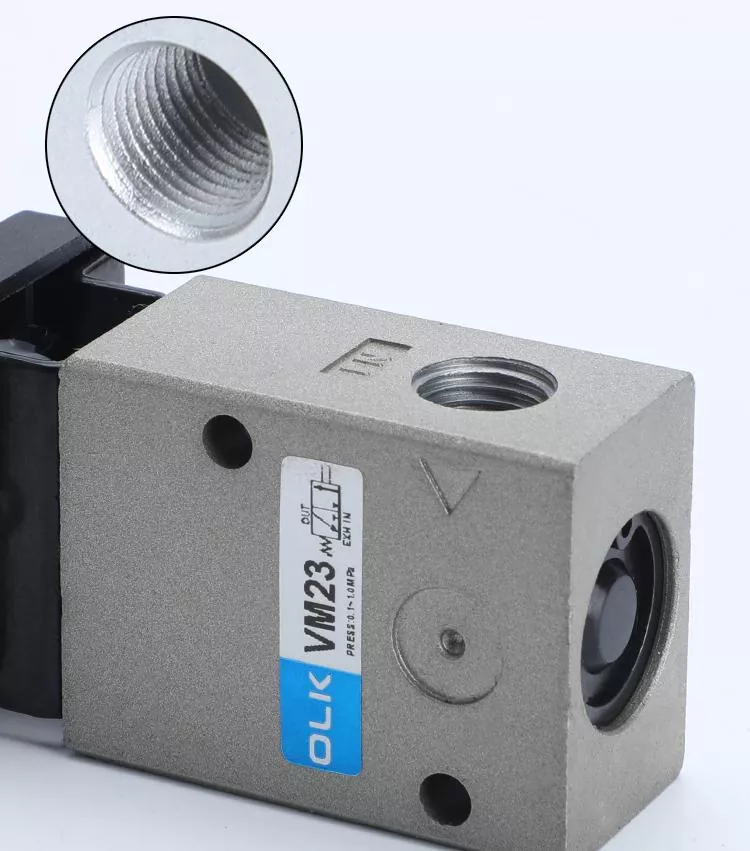

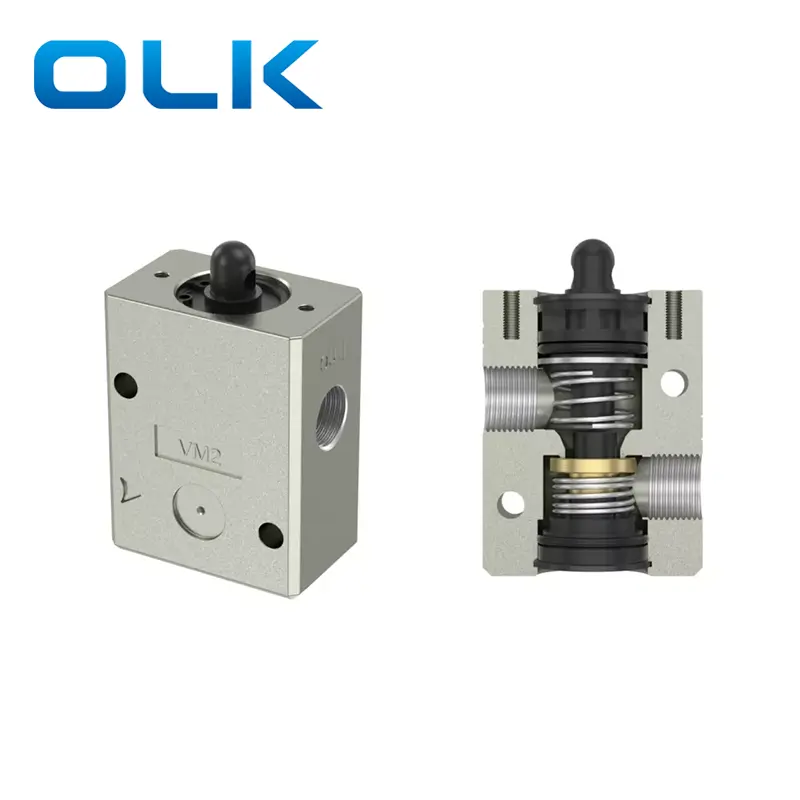

OUELIKAI (OLK) VM230 seri mekanik SMC-jinis SMC-jinis kasedhiya ing rong jinis fungsi: 3-posisi 3-cara. Plancongan udara VM230 seri udara VM230 teka ing ngisor ported. Ukuran benang kanggo port RC1 / 4.

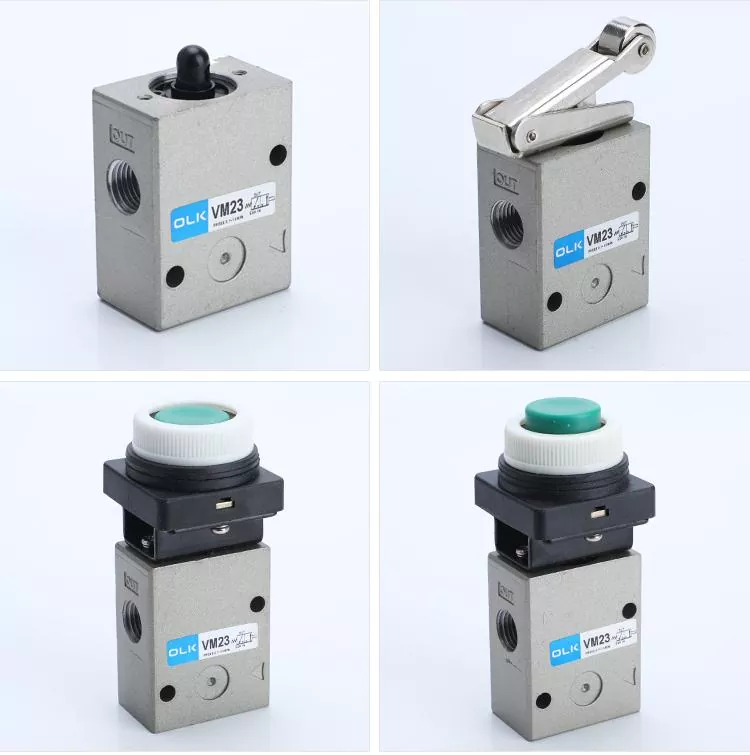

- dhasar (vm230-02-00)
- roller (vm230-02-01)

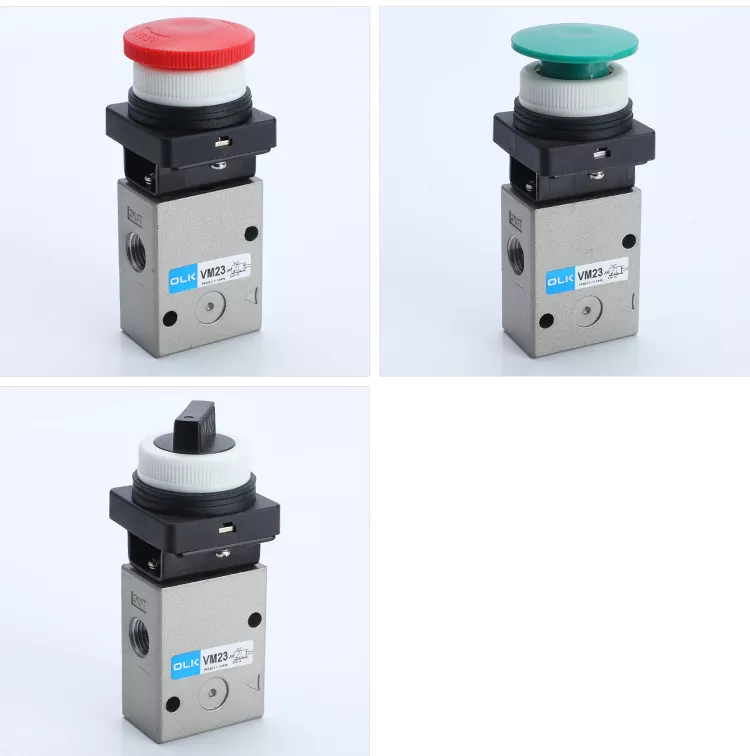

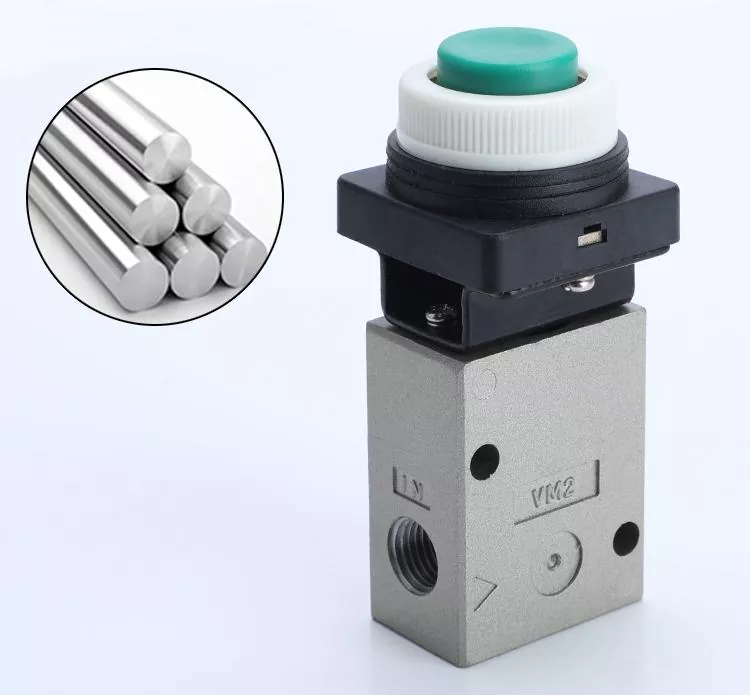

- tombol jamur (vm230-02-30)
- Tombol Kepala lengkap (VM230-02-3)
- Tombol Kepala Flat (VM230-02-33)
- tombol mandeg darurat (vm230-02-3)
- Knob (vm230-02-34)
Simbol:
Tombol kasedhiya ing patang warna: abang, ijo, ireng, lan kuning.
|
Pesenan kode |
||||||||
|
Vm2 |
3 |
0 |
_ |
02 |
_ |
01 |
_ |
S |
|
Model: Seri VM2 |
Jumlah port |
Arah pipa lan dhuwur plunger |
|
Ukuran Port: |
|
Tipe Aksi |
|
Suffix kanggo Actualator |
|
|
2: 2port |
0: Sisih ported / dawa |
|
02: PT1 / 4 |
|
00: dhasar |
|
S: roller baja keras |
|
|
3: 3port |
1: Sisih ported / cendhak |
|
|
|
01: Lever Roller |
|
R: tombol push abang |
|
|
|
2: ngisor ported / dawa |
|
|
|
30: Tombol push (jamur) |
|
B: Tombol Ireng Ireng |
|
|
|
3: ngisor ported / cendhak |
|
|
|
32: tombol push (lengkap) |
|
G: Tombol push ijo |
|
|
|
|
|
|
|
33: Tombol push (siram) |
|
Y: Tombol Push Kuning |
|
|
|
|
|
|
|
34: pamilih corèr (2 posisi) |
|
|
|
|
|
|
|
|
|
37: Pamilih Key (Stop Darurat) |
|
|
|
|
VM100 |
VM200 |
|
medium sing digunakake |
Gas udhara / inert |
Gas udhara / inert |
|
Tumindak |
Tindakan Langsung Langsung Eksternal |
Tindakan Langsung Langsung Eksternal |
|
Diameteripun port |
Sisih: G1 / 8 ngisor: M5X0.8 |
PT1 / 4 |
|
Jumlah posisi |
2 posisi3 cara |
2 posisi3 cara |
|
Lubricating |
ora perlu |
ora perlu |
|
Range Pressure MPA (PSI) |
-0.1.1.0 |
-0.1.1.0 |
|
Suhu suhu ° C |
-5~60 |
-5~60 |
|
Bahan Biru |
Aloi Aluminium |
Aloi Aluminium |
|
Wilayah salib-bagean (CV) |
2,5 mm² (0.14) |
19 mm² (1.0) |
