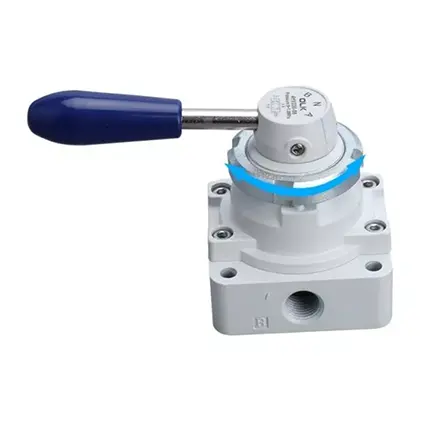

OUELAIKAI (OLK) 4HV Series papat port / papat-port papat-port Port-port loro-lorone diuripake kanthi muter pengungkit manual, nawakake rasa tactile sing apik lan operasi lancar.
Valasi operasi 4HV nampilake area aliran sing efektif lan kerugian tekanan sing sithik, sing mbantu nyuda panggunaan energi lan nambah efisiensi sajrone transfer cairan. Kajaba iku, nawakake rong jinis instalasi kanggo pangguna kanggo milih: Pemasangan panel lan instalasi ngisor, kanthi kacang sing kalebu instalasi.
Sakabèhé, Valk Oluikai (OLK) Manual Valve yaiku katup sing paling dhuwur lan ramalan sing digunakake ing macem-macem sektor industri. Kanggo informasi sing luwih rinci babagan katup manual 4HV, disaranake kanggo takon karo manual produk sing gegandhengan utawa ujar karo personel teknis profesional.
1. Nguripake lan entheng kanthi raos tactile sing apik, posisi sing akurat:
2. Area aliran sing efektif kanthi kerugian tekanan sing kurang;
3. Area aliran sing efektif;

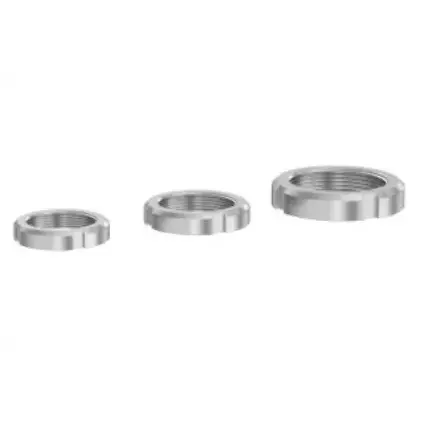

4. Loro cara instalasi sing kasedhiya: panel lan instalasi ngisor. Pamasangan panel dilengkapi karo Nuts sing dipasang.
|
Pesenan kode |
|||||
|
4HV |
2 |
30 |
__ |
8 |
S |
|
Model |
Seri |
Posisi |
|
Ukuran Port |
Jinis Instalasi: |
|
4hv: manual manual tangan 4HV Rotating katup |
2: 200 seri |
24: 2/4 port |
|
06: PT1 / 8 |
Kosong |
|
|
3: 300 seri |
34: 3/4 port |
|
08: PT1 / 4 |
S: panel mounting (karo nut katup) |
|
|
4: 400 seri |
|
|
10: pt3 / 8 |
|
|
|
|
|
|
15: PT1 / 2 |
|
|
|
|
|
|
20: PT3 / 4 |
|
|
medium sing digunakake |
Udhara (disaring liwat saringan luwih saka 40μm) |
|
Tumindak |
kontrol tangan |
|
Lubricating |
ora perlu |
|
Range Pressure MPA (PSI) |
0~1.0 (~ 145) |
|
Resistensi Tekanan Dijamin |
1.5MPA (215psi) |
|
Suhu suhu ° C |
-20~70 |
|

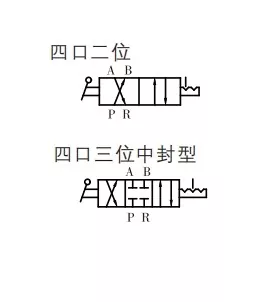

model |
Diameteripun port |
Jumlah posisi |
Wilayah salib-bagean MM² (nilai CV) |
|
4hv210-06 |
PT1 / 8 |
2 posisi 4 cara |
14.0 (0.78) |
|
4hv230-06 |
PT1 / 8 |
telung cara papat |
14.0 (0.78) |
|
4hv210-08 |
PT1 / 4 |
2 posisi 4 cara |
14.0 (0.78) |
|
4hv230-08 |
PT1 / 4 |
telung cara papat |
14.0 (0.78) |
|
4hv310-08 |
PT1 / 4 |
2 posisi 4 cara |
30.0 (1.67) |
|
4hv330-08 |
PT1 / 4 |
telung cara papat |
30.0 (1.67) |
|
4hv310-10 |
Pt3 / 8 |
2 posisi 4 cara |
33.0 (1.83) |
|
4hv330-10 |
Pt3 / 8 |
telung cara papat |
33.0 (1.83) |
|
4hv410-15 |
PT1 / 2 |
2 posisi 4 cara |
88.0 (4.89) |
|
4hv430-15 |
PT1 / 2 |
telung cara papat |
88.0 (4.89) |
|
4hv410-20 |
Pt3 / 4 |
2 posisi 4 cara |
95.0 (5.27) |
|
4hv430-20 |
Pt3 / 4 |
telung cara papat |
95.0 (5.27) |
|
Model: |
Thread: |
|
4hv200 |
M35x1.5 |
|
4hv300 |
M40X1.5 |
|
4hv400 |
M52x1.5 |
|
|
|
|
Olk Pneumatic Art Valves Valves - 5 model mbandhingake |
|||||||||
|
Foto |
|
|
|
|
|
|
|
|
|
|
Model Olk |
4hv210 / 310/410/230/330/430 |
|
HV200A / B |
|
HV-02/03/04 |
|
HV400-02 / 03/04 |
|
K34r6-8 / l / d |
|
Posisi |
2 posisi 4 cara |
|
3 Posisi 4 cara |
|
3 Posisi 4 cara |
|
3 Posisi 4 cara |
|
3 Posisi 4 cara |
|
|
3 Posisi 4 cara |
|
|
|
|
|
|
|
|
|
Ukuran Port |
RC1 / 8,1 / 4,1 / 8,1 / 2,3 / 4 |
|
PT1 / 4 |
|
PT1 / 4, PT3 / 8, PT1 / 2 |
|
PT1 / 4, PT3 / 8, PT1 / 2 |
|
G1 / 4 |
|
Fitur Produk |
Dipasang panel |
|
A: Antarmuka Quadrilateral B: Antarmuka sisih loro, kanthi atenuasi swara ing sisih ngisor |
|
|
|
|
|
Kothong: siji bolongan ing sisih siji l: rong bolongan ing sisih ngelawan; D: papat bolongan ing ngisor; |
|
|
|
|
|
|
|
|
|
|
|
|
Ngalahake |
Gagang sing bisa dicopot |
|
Gagang sing bisa dicopot |
|
Gagang sing bisa dicopot |
|
Ngalahake plastik / plastik |
|
Gagang sing bisa dicopot, gagang anti-scald |
|
|
|
|
|
|
|
|
|
|
|
|
Dimensi dhasar |
200 Series: 62 mm |
|
61.3 mm |
|
74 mm |
|
74 mm |
|
55 mm |
|
|
|
|
HV200A |
|
|
|
|
|
K34r6-8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HV200B |
|
|
|
|
|
K34r6-8l |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K34r6-8d |
|
|
|
|
|
|
|
|
|
|
|
Apa fitur ing katup kontrol tangan 4HV?
Katup tangan 4hv bisa dadi panel panel.
Pira posisi sing bisa dipilih ing katup manual 4HV?
2 posisi 4 cara lan 3 posisi 4 cara rong jinis bisa dipilih.
