3r Series Operasi Valve 3 Cara

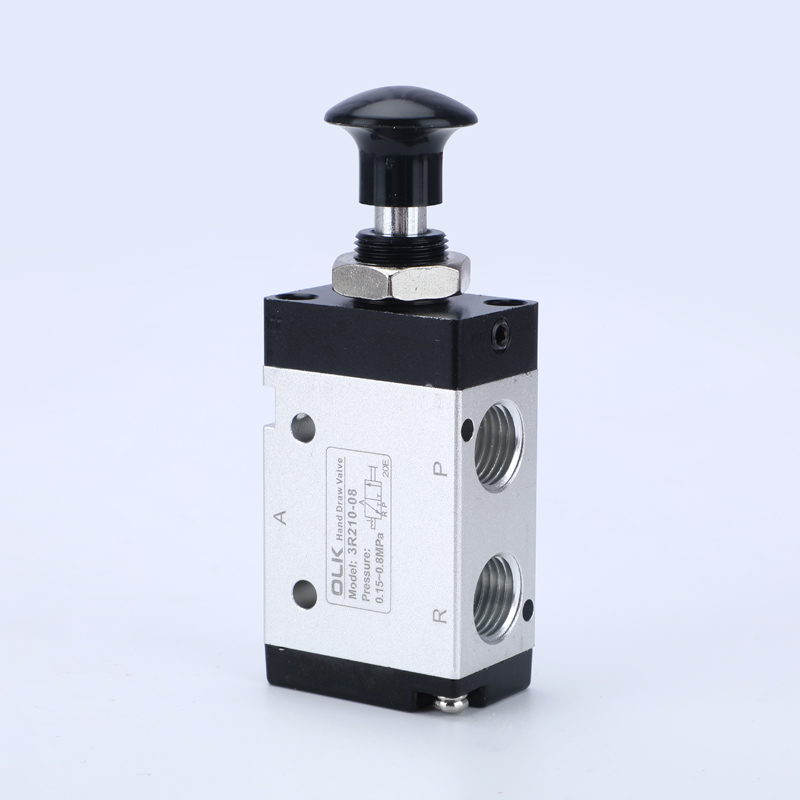

Model:3R210-08

Minangka Professional 3R Series Operation Valered Valered Valered Valered 3, sampeyan bisa njamin tuku katup tangan 3r saka pabrik lan OLK bakal menehi layanan sing paling apik sawise sale lan kiriman pas wektune.

Kirim Pitakonan

Deskripsi Produk

OUELAIKAI (OLK) wis ngasilake katup lever tangan tangan 3r Seri wiwit taun 2003, sing bisa ngganti tAC udara - jinis katup seri 3L. Katup sing dioperasekake tangan 3r ngontrol arah kanthi operasi manual langsung. Katup telung arah rong arah duwe siji inlet, siji outlet, lan siji port exhaust. Inlet kasebut dilengkapi layar Filter kanggo mbusak reged saka udhara, nyegah kontaminasi lan leakage udara cincin sealing. The aluminum valve body surface is sandblasted, and the interfaces are burr-free, with multiple pipe diameters to choose from (M5, G1/8, G1/4, G3/8, G1/2).

Symbol Symbol Indeall 3r Symbol:

Kode pesenan:
3r	2	10	08
Model:	Seri:	Fungsi:	Ukuran Port:
3R: 3/2 cara tangan tangan	1: 100 seri	10: 2 posisi	100 seri: 06: G1 / 8
	2: 200 seri		200 Series: 06: G1 / 8
	3: 300 lires		200 Series: 08: G1 / 4
			300 seri: 08: G1 / 8
			300 seri: 10: G3 / 8

OLK 3R Seri Series Olker Cocog 3 Cara Produk Karo

1. Operasi manual, coaxial karo sumbu kanggo posisi sing gampang lan tepat, mesthekake linuwih.

2. Struktur jinis piston kanthi nyolong, ukuran kompak, entheng, lan genyelly Gampang.

3 .. Bolongan internal diproses kanthi teknik khusus, nyebabake resistensi geseruhan sing minimal lan umur lengkap.

4. Ora mbutuhake lubrication minyak.

5 .. Instalasi gampang kanthi macem-macem posisi sing dipasang, nggampangake panggunaan sing trep.

Valve Uploaded tangan 3r 3r Cara Parameter Umum

medium sing digunakake	Udhara (disaring liwat saringan luwih saka 40μm)
Tumindak	Tindakan langsung manual
Jumlah posisi	Loro posisi telung cara
Lubricating	ora perlu
Range Pressure MPA (PSI)	0~0.8 (0 ~ 114)
Resistensi Tekanan Dijamin	1.5MPA (215psi)
Suhu suhu ° C	-20~70
Bahan Biru	Aloi Aluminium

Beda paramèter

model	Diameteripun port	Aliran Cross-Sectional Area MM² (Nilai CV)
3r110-M5	M5	5.5 (0.3)

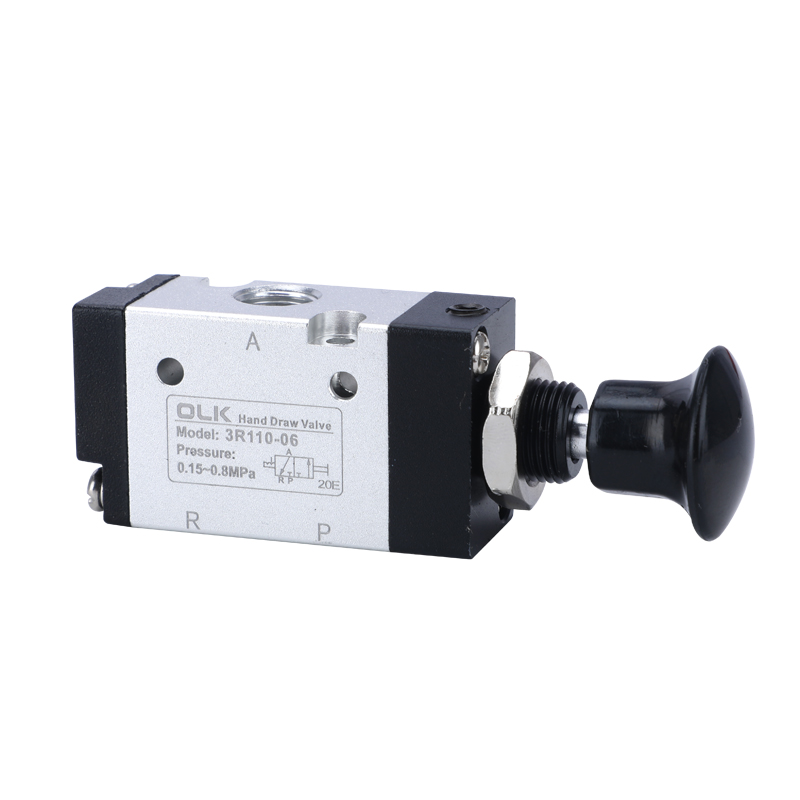

3r110-06	G1 / 8	12.0 (0.67)
3r210-06	G1 / 8	14.0 (0.78)
3r210-08	G1 / 4	16.0 (0.89)
3R310-08	G1 / 4	25,0 (1.39)

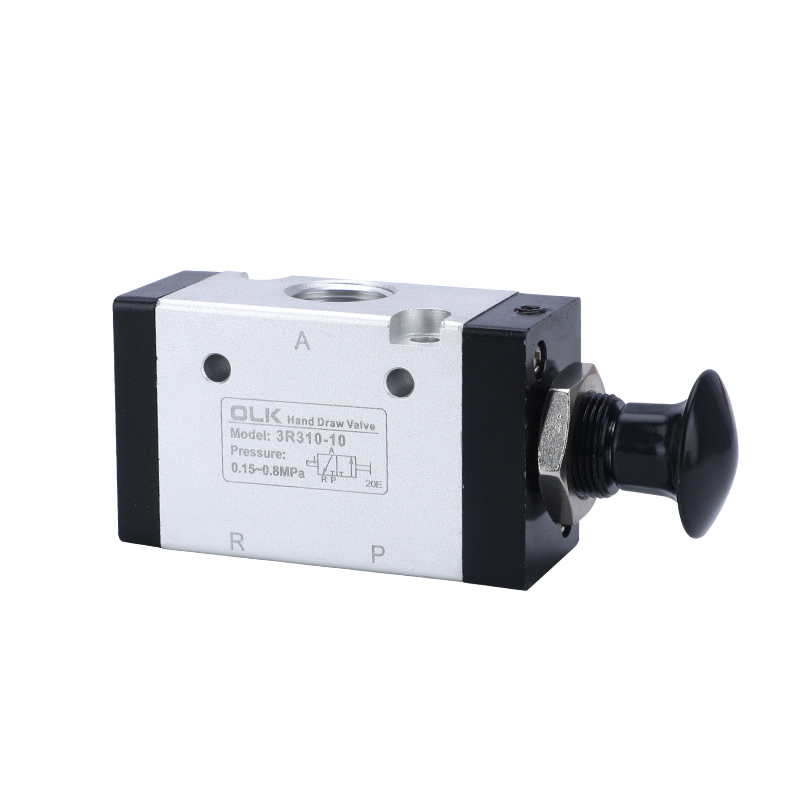

3R310-10	G3 / 8	30.0 (1.67)
