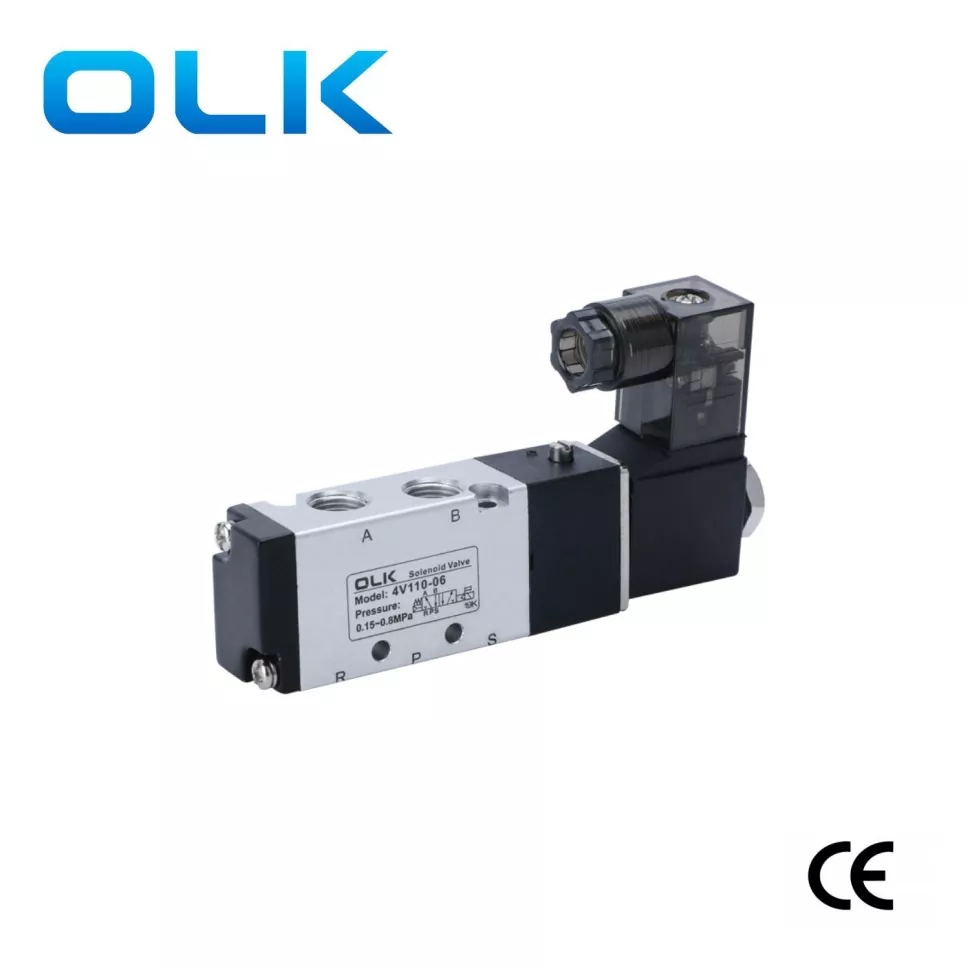

OLK 4V100 solenoid katve 5 cara, 5/2 cara katup solenoid pneumatic liwati sertifikasi CE minangka ukuran katon paling cilik, kanthi desain kompak 1/8 '' '. 4v100 katup solenoid cocog kanggo sistem pneumatik sing luwih cilik kanthi tarif aliran ngisor. Ditrapake kanggo piranti cilik utawa silinder cilik sing mbutuhake kontrol sing tepat.
|
Pesenan kode |
|
|
|
|
|
|
4v |
1 |
10 |
6 |
AC110V |
|
|
Model |
Kode |
jinis katup |
Ukuran Port |
voltase |
Coil bukti jeblugan |
|
4v: Katup solenoid posisi2 (3) |
1: 100 seri |
10: Cara 5/2 Solenoid Tunggal |
M5: M5X0.8 |
AC220V |

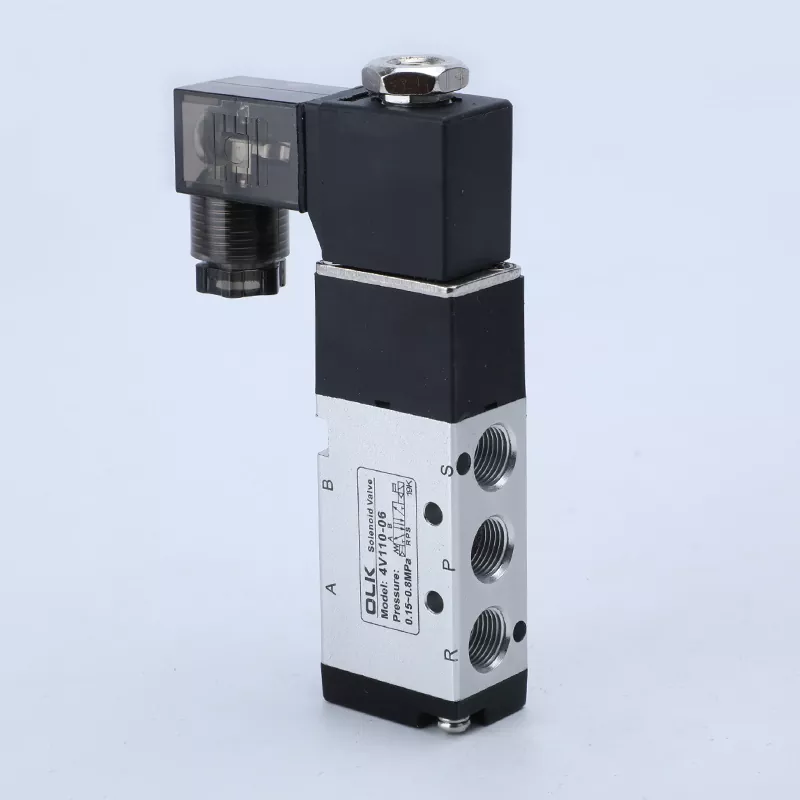

Ora: Tipe Din |
|
|
|
20:double solenoid valve 5/2 way |
06: 1/8 '' |
DC24V |

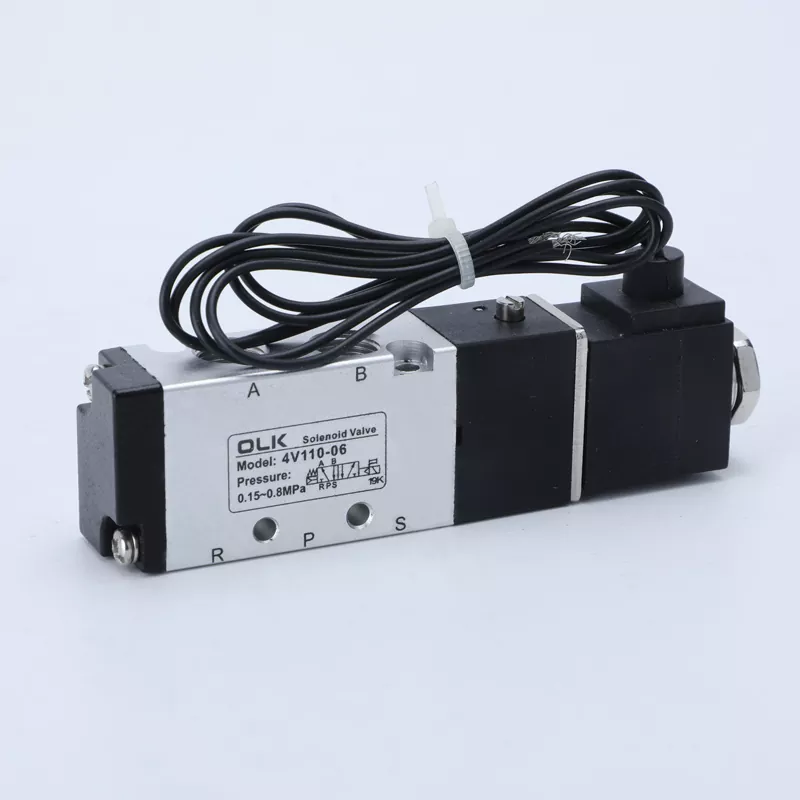

I: jinis baris |
|
|
|
30c: Pusat Tutup solenoid kaping pindho / 3way |
|
AC110V |
|
|
|
|
30e: Pusat Exhaust kaping pindho solve5 / 3way |
|
AC24V |
|
|
|
|
30p: Double solenoid katup katuron 5/3 cara tekanan |
|
DC12V |
|
|
Model |
4v110-M5 4V120-M5 |
4V130C-M5 4V130E-M5 4V130P-M5 |
4v110-06 4v120-06 |
4v130c-06 4V130e-06 4V130p-06 |
|
Medium sing digunakake |
Air (Filter liwat layar Filter saka 40μm) |
|||
|
Mode aksi |
Jinis Pilot Internal |
|||
|
Ukuran Port |
Inlet = outlet = port exhaust = m5 |
Inlet = outlet == G1 / 8 |
||
|
Wilayah salib-efektif |
5.5mm² (CV = 0.31) |
5.0mm² (CV = 0.28) |
12.0mm² (CV = 0.67) |
9.0mm (CV = 0.5) |
|
Posisi |
5/2 port |
5/3 port |
5/2 port |
5/2 port |
|
Range Tekanan |
0.15-0.8 MPA (21-14psi) |
|||
|
Meksa bukti |
1.5MPA (215psi) |
|||
|
Meksa kerja |
'-20-70 ℃ |
|||
|
Bahan Biru |
Aloi Aluminium |
|||
|
Lubrication |
Ora butuh |
|||
|
Frekuensi maksimal.operating |
5 kaping / kapindho |
3 kaping / kapindho |
5 kaping / kapindho |
3 kaping / kapindho |
|
Bobot |
4v110-M5: 130g 4v120-M5: 175g |
200 g |
4v110-06: 120g 4v120-06: 175g |
200 g |
