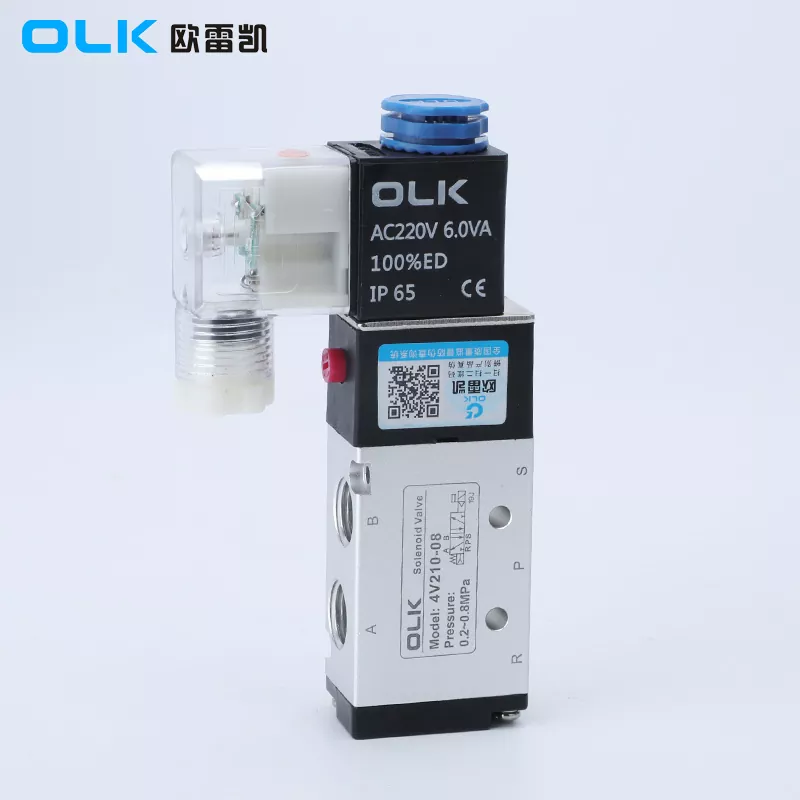

OLK 4V200 katup 5 cara, 5/2 Waydand 5 / 3way katup solenoid solenoid Solenioid.Telpon lan port exhaust dipérang dadi G1 / 4 lan G1 / 8. Tingkat aliran gas ngliwati pas kanggo sistem pneumatik ukuran medium. Iki bisa digabung karo basis pulo Valve kanggo nyimpen instalasi komponen kontrol, mesin soda, etc. ouangumai 4v210-08 digawe saka kapasitas taunan nganti rong yuta. Iku mung produk bintang sing populer

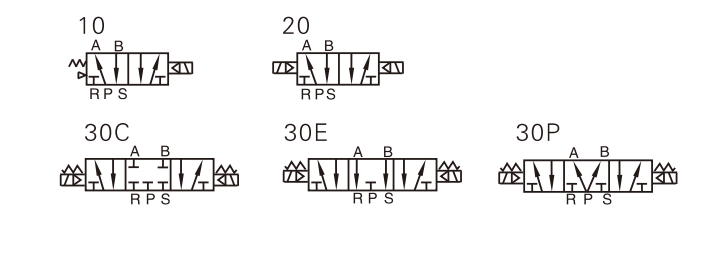

Simbol Seri 4V200:
|
Pesenan kode |
|
|
|||
|
|
|
|
|||
|
4v |
2 |
10 |
6 |
AC110V |
|
|
Model |
Kode |
jinis katup |
Ukuran Port |
voltase |
Coil bukti jeblugan |
|
4v: Katup solenoid posisi2 (3) |
2: 200 seri |
10: Cara 5/2 Solenoid Tunggal |
06: G1 / 8 |
AC220V |
Ora: Tipe Din |
|
|
|

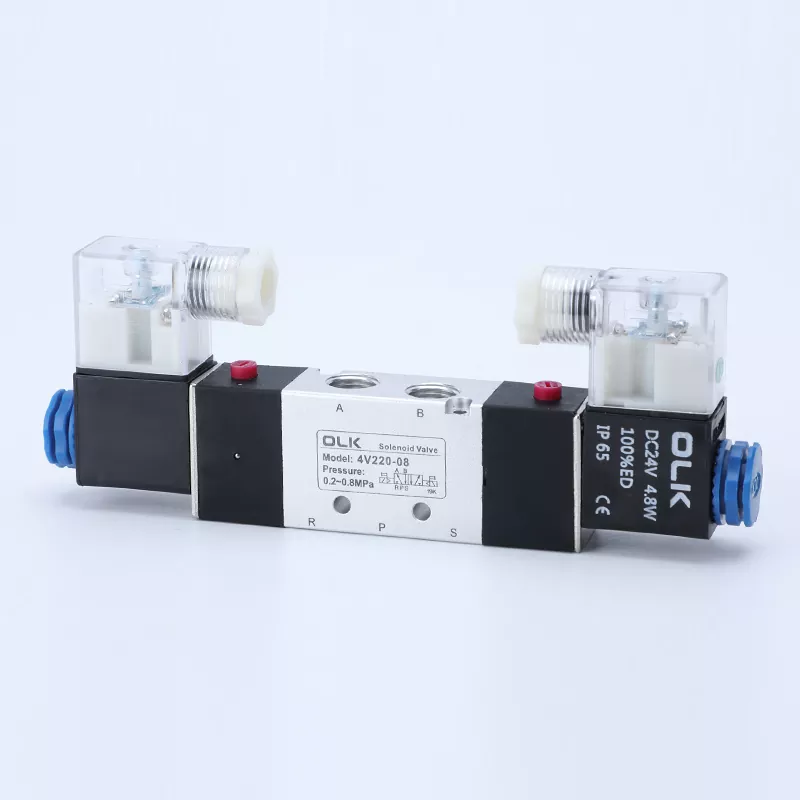

20: Katup Solenoid Double 5/2 |
06: G1 / 4 |
DC24V |
I: jinis baris |
|
|
|
30c: Pusat Tutup solenoid kaping pindho / 3way |
|
AC110V |
|
|
|
|
30e: Pusat Exhaust kaping pindho solve5 / 3way |
|
AC24V |
|
|
|
|
30p: Double solenoid katup katuron 5/3 cara tekanan |
|
DC12V |
|
|
Model |
4v210-06 4V220-06 |
4v230c-06 4V230e-06 4V230p-06 |
4v210-08 4V220-08 |
4v230c-08 4V230e-08 4V230p-08 |
|
Medium sing digunakake |
Air (Filter liwat layar Filter saka 40μm) |
|||
|
Mode aksi |
Jinis Pilot Internal |
|||
|
Ukuran Port |
Inlet = outlet = port exhaust = g1 / 8 |
Inlet = outlet = G1 / 4 port exhaust = G1 / 8 |
||
|
Wilayah salib-efektif |
14.0mm² (CV = 0.78) |
12.0mm² (CV = 0.67) |
16.0mm² (CV = 0.89) |
12.0mm² (CV = 0.67) |
|
Posisi |
5/2 port |
5/3 port |
5/2 port |
5/2 port |
|
Range Tekanan |
0.15-0.8 MPA (21-14psi) |
|||
|
Meksa bukti |
1.5MPA (215psi) |
|||
|
Meksa kerja |
'-20-70 ℃ |
|||
|
Bahan Biru |
Aloi Aluminium |
|||
|
Lubrication |
Ora butuh |
|||
|
Frekuensi maksimal.operating |
5 kaping / kapindho |
3 kaping / kapindho |
5 kaping / kapindho |
3 kaping / kapindho |
|
Bobot |
4v210-06: 220 g 4V220-06: 320 g |
360 g |
4v210-08: 220 g 4v220-08: 320 g |
360 g |
FAQ:
Apa diameter antarmuka saka katup solenoid 4v210-08?
Inlet lan outlet yaiku G1 / 4, lan port exhaust yaiku G1 / 8
Fungsi Muffler Tower Menara BSL / BSLM Muffler Kepala Flat?
Muffler Tower Tower BSL / BSLM Muffler bisa nyuda swara lan nyegah bledug ora mlebu katup solenoid
Kepiye njaga lan layanan katup solenoid?
Kanggo nglanjutake layanan layanan saka katup 4v200 solenoid, lubrication diwenehake liwat piranti mistan minyak nalika panggunaan komponen internal sing disebabake dening operasi sing ana ing njero ruangan lan luwih dawa layanan.
Apa fungsi tombol ing ngisor Coil katup solenoid?
Tombol katup 4v210 yaiku 'override manual' sing digunakake kanggo manual ngalih inti katup lan ngalihake outlet udara

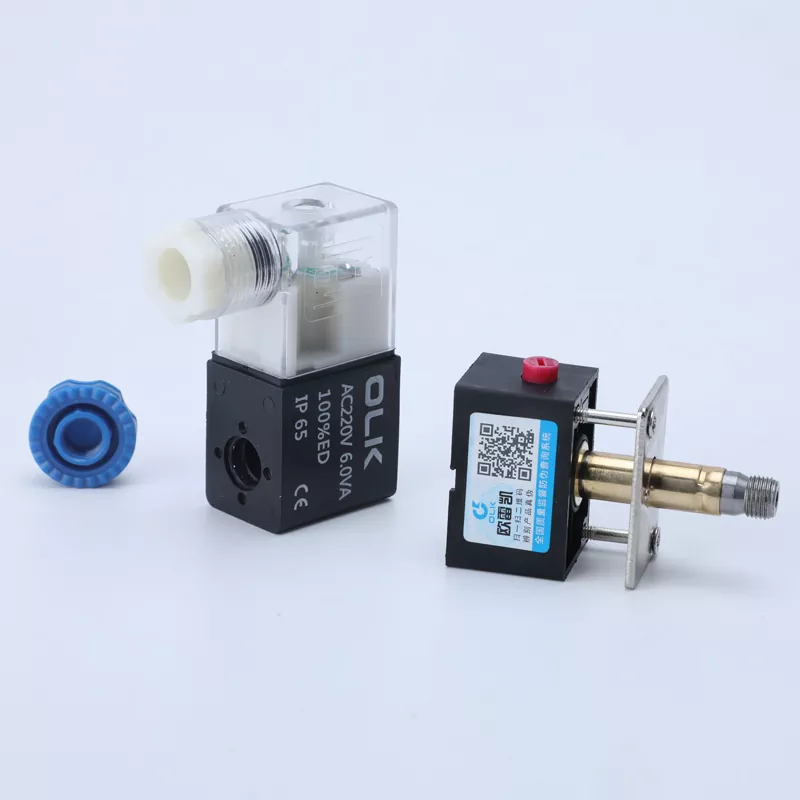

Apa koil blok port?

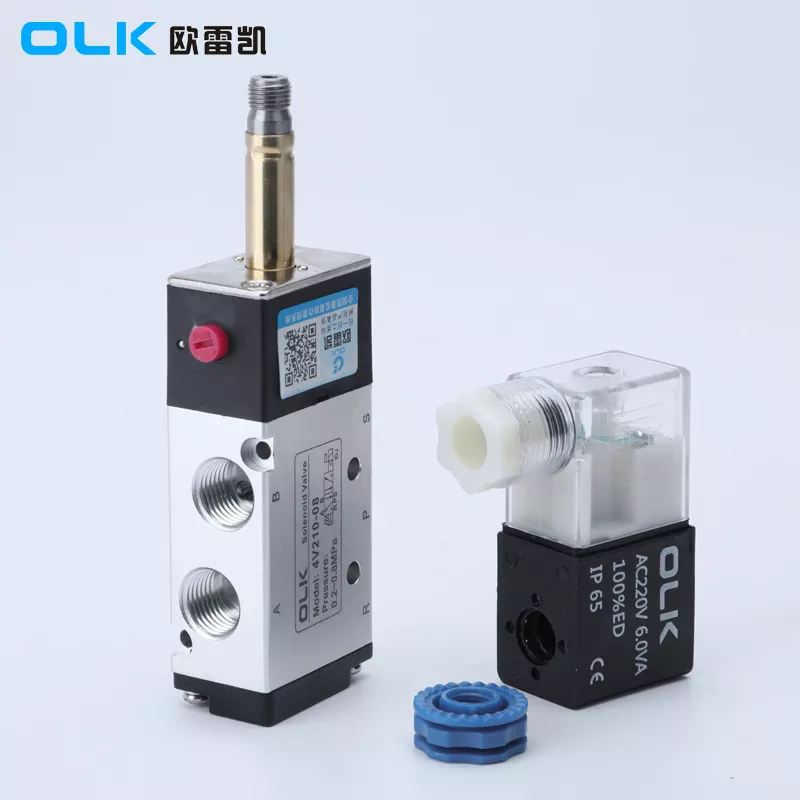

Coil kasebut bisa dicopot utawa diputer kanthi ora ngilangi nut coil-merek Olk biru.
