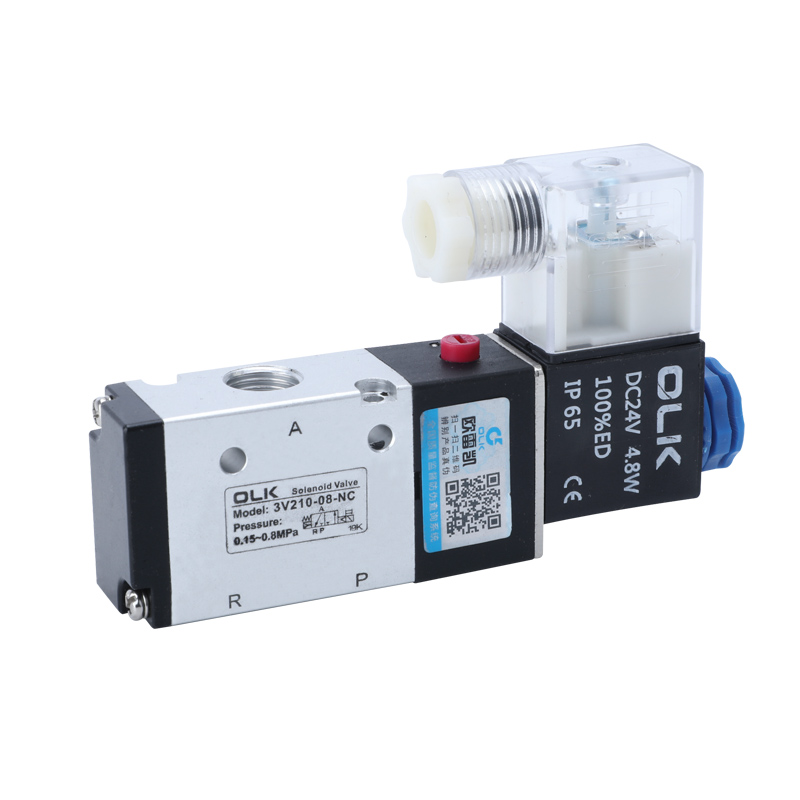

Katup katek 3v

Minangka Professional Valve 3v-Manifold, sampeyan bisa njamin tuku 3v solenoid grup saka pabrik lan Olk bakal menehi layanan sing paling apik sawise sale lan kiriman pas wektune.

Brand:
OLK
Position:
2 Position 3 Way
Port size:
M5,G1/8,G1/4,G3/8,G1/2
Initial State:
NO,NC

Kirim Pitakonan

Deskripsi Produk

Katup 3v-Manifold awak sing kuwat duwe umur dawa lan cocog kanggo kontrol listrik listrik lan pneumatik.it gampang diinstal lan njaga. Nduwe macem-macem aplikasi, kayata peralatan industri, peralatan medis, mesin ngombe, ngilangake banyu, akurasi kebon kebon, lan liya-liyane akurasi kebon, lan bisa dipercaya kanggo kahanan kerja.

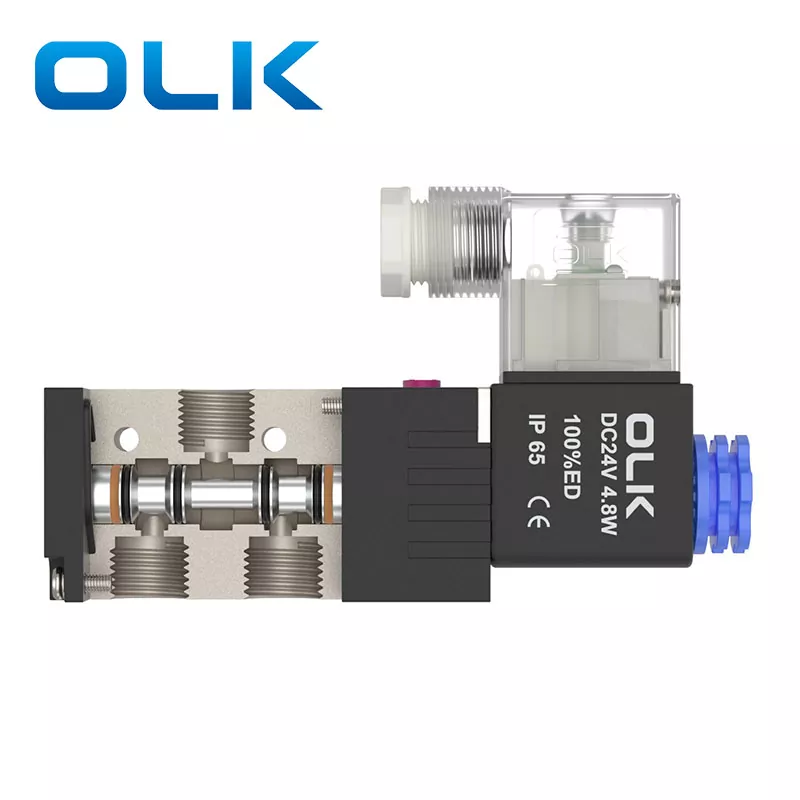

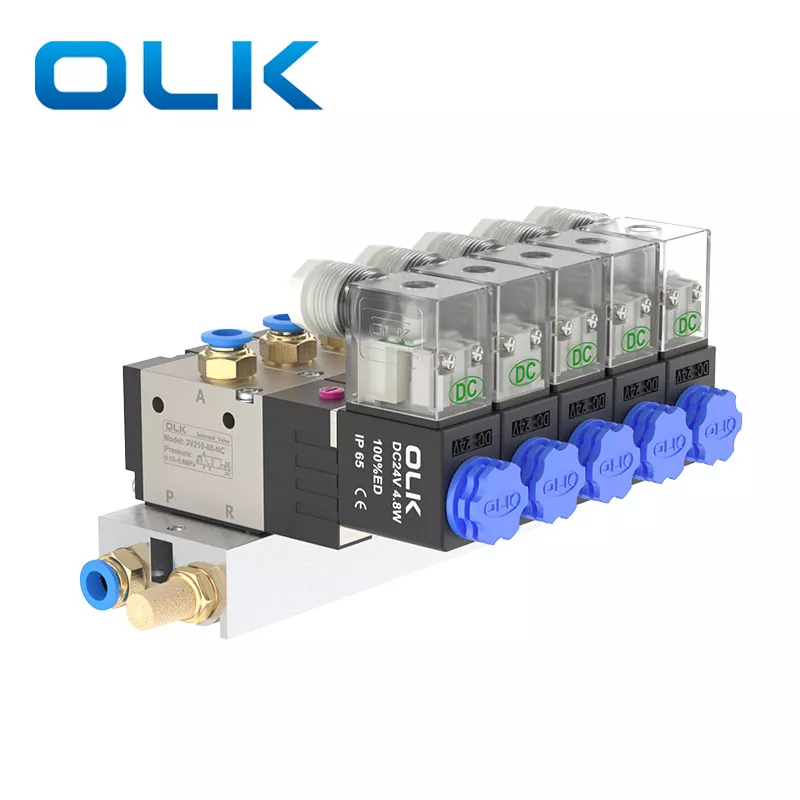

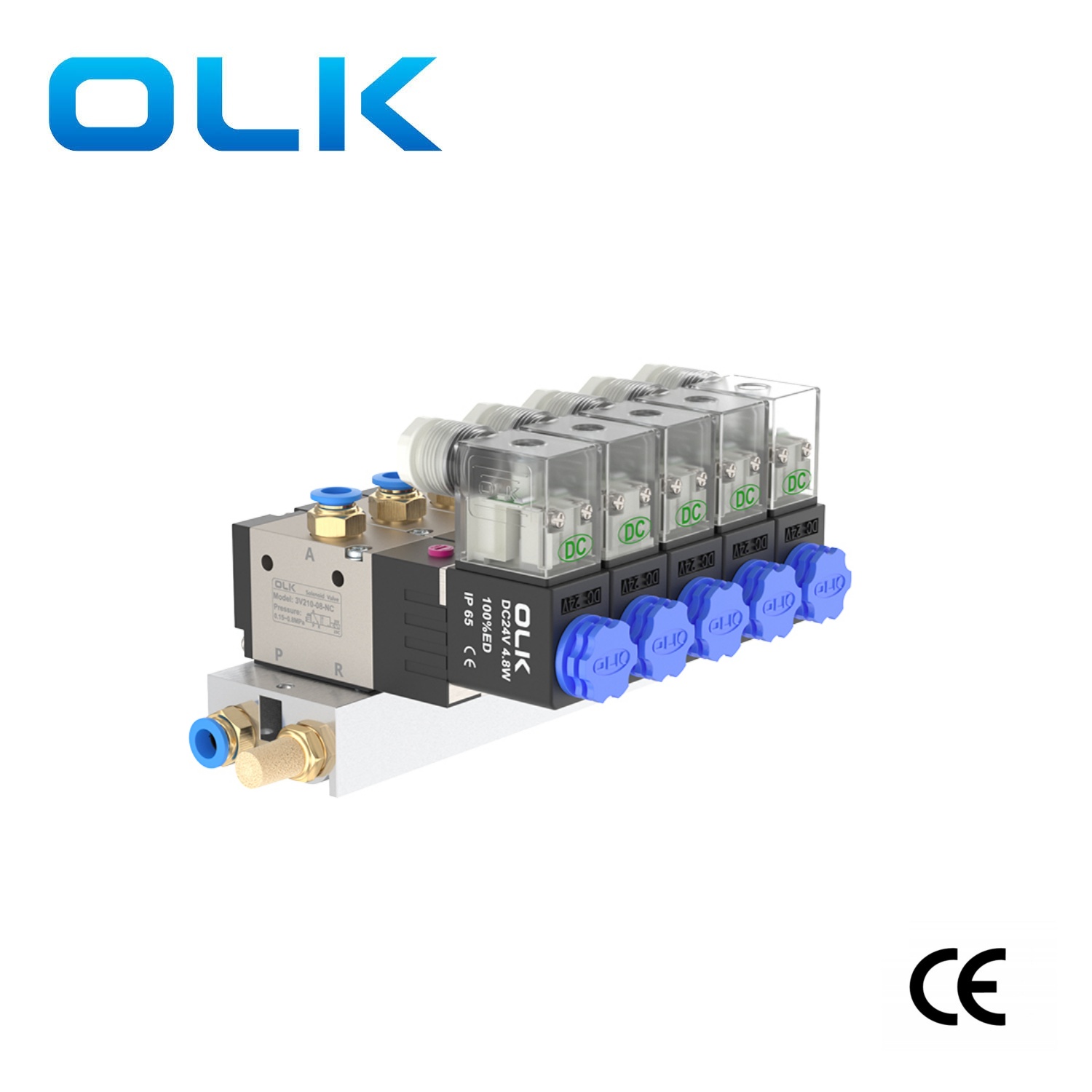

3v seri bus valve

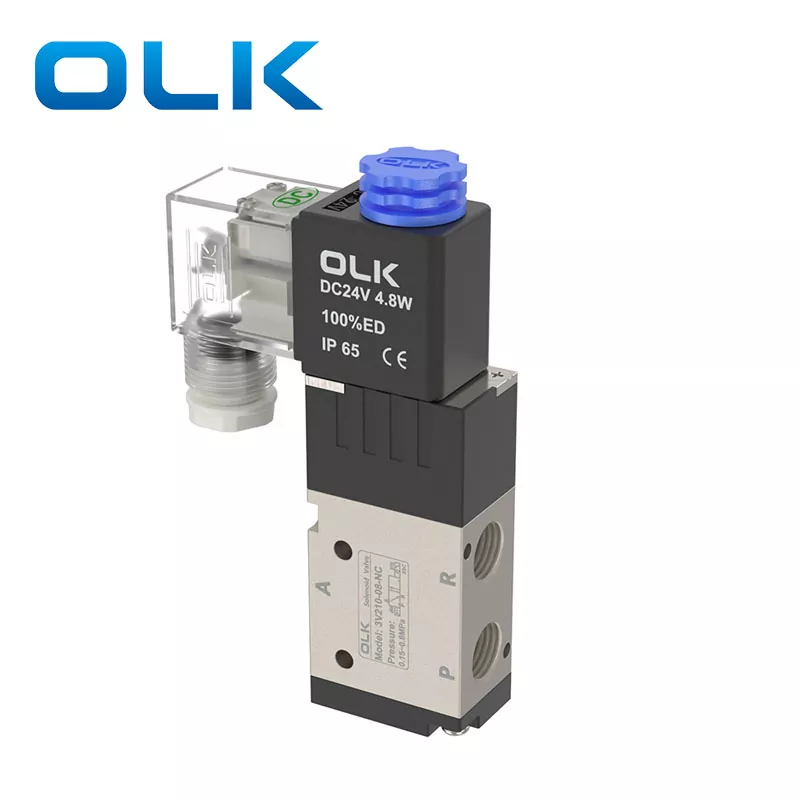

3v katup katup

3v katup stabilitas lan meja kuantitas:

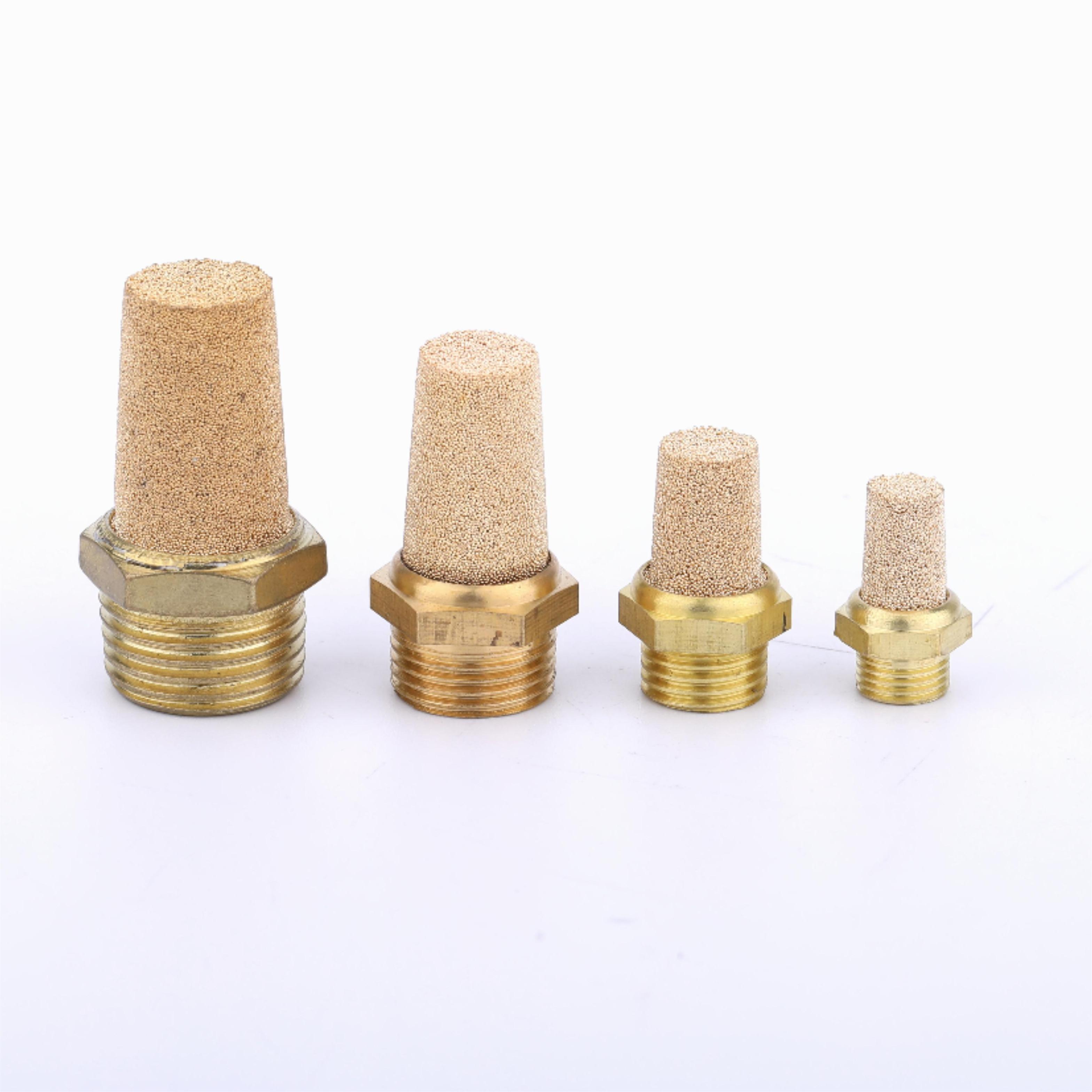

		Muffler	plug	Pl8-02	PC8-02	Board Bus	3v solenoid vlave

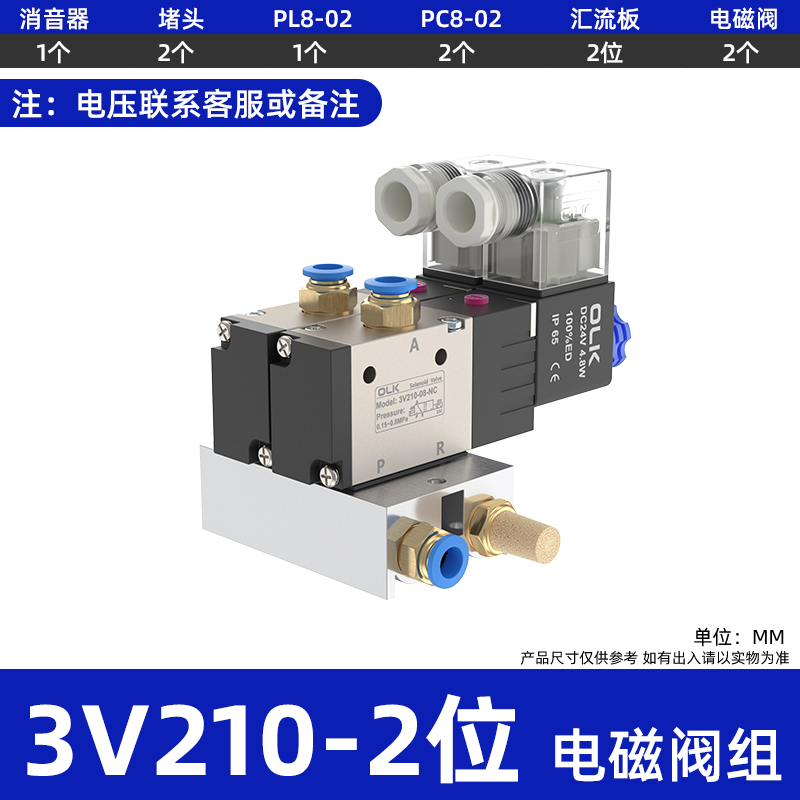

AC220V, AC110V, AC24V, DC24V, DC12V	3v110-2f 3v210-2f 3v310-2f	1	2	1	2	2	2

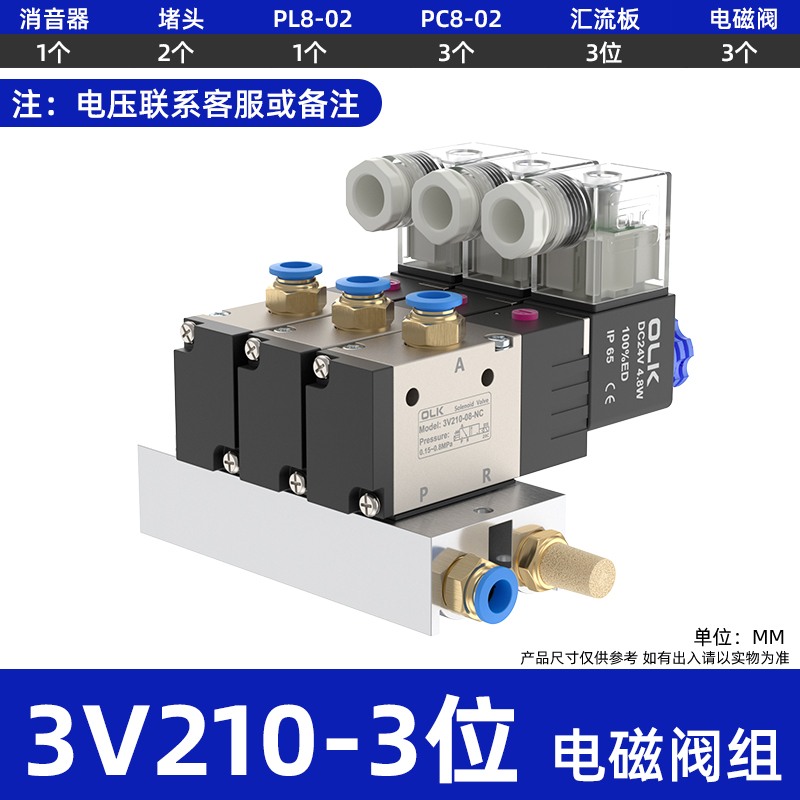

	3v110-3f 3v210-3f 3v310-3f	1	2	1	3	3	3

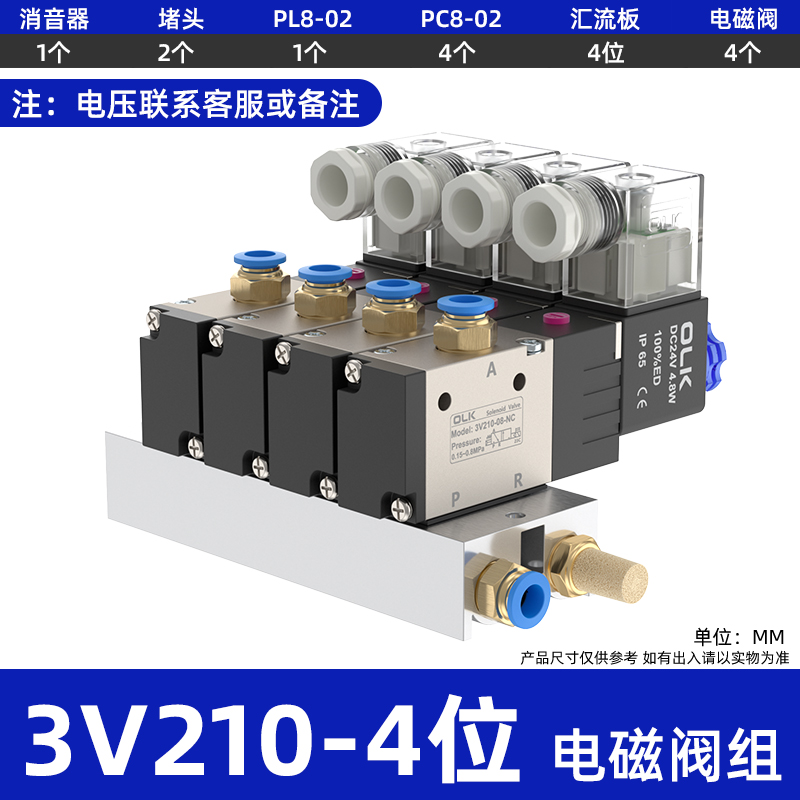

	3v110-T10-T. 3v210-4-v 3v310-T.STF	1	2	1	4	4	4

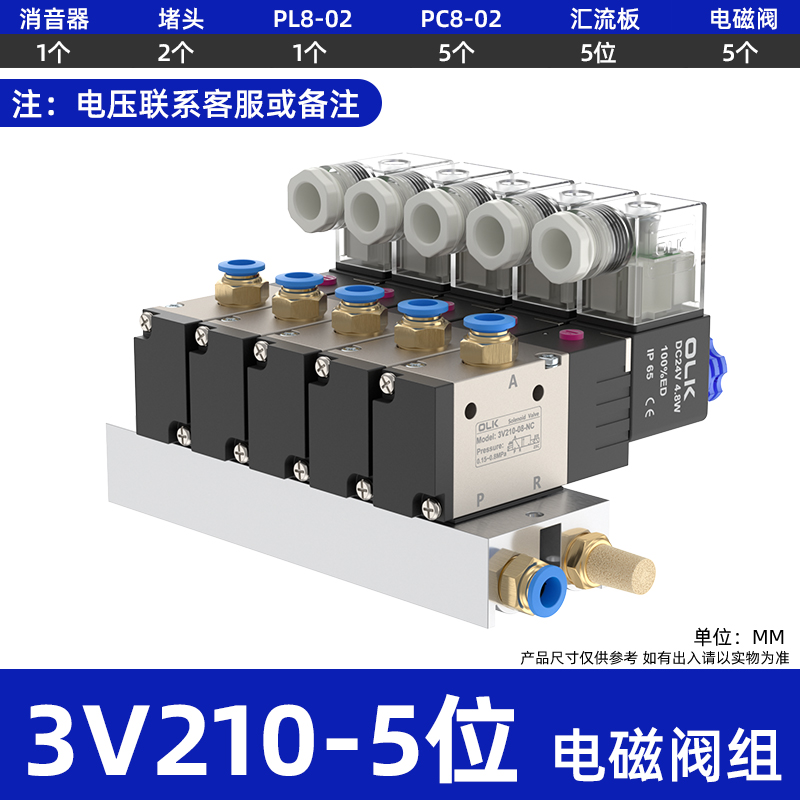

	3v110-5f 3v210-5f 3v310-5f	1	2	1	5	5	5

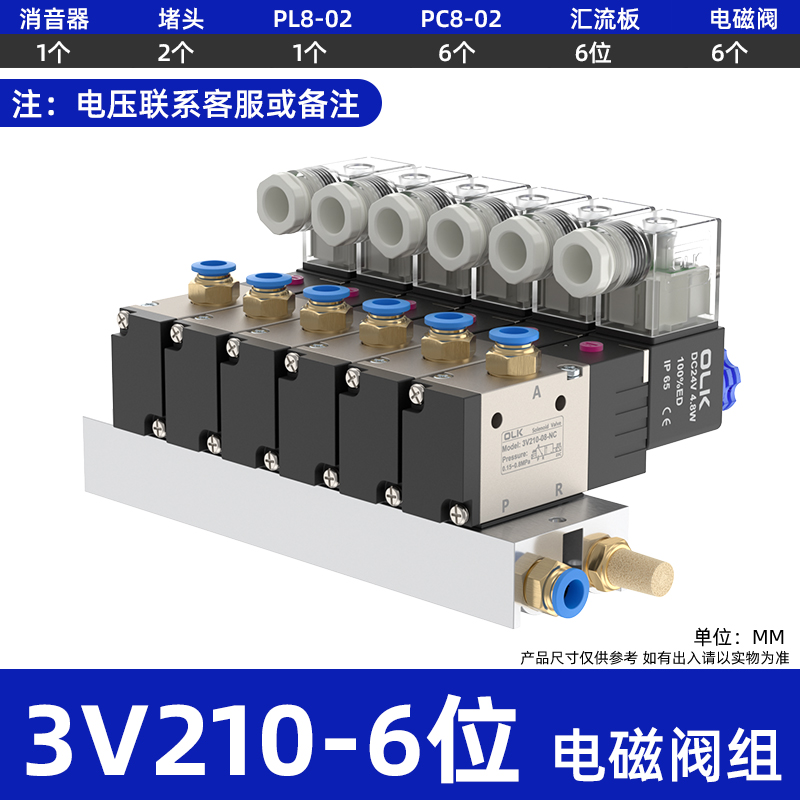

	3v110-6f 3v210-6f 3v310-6f	1	2	1	6	6	6

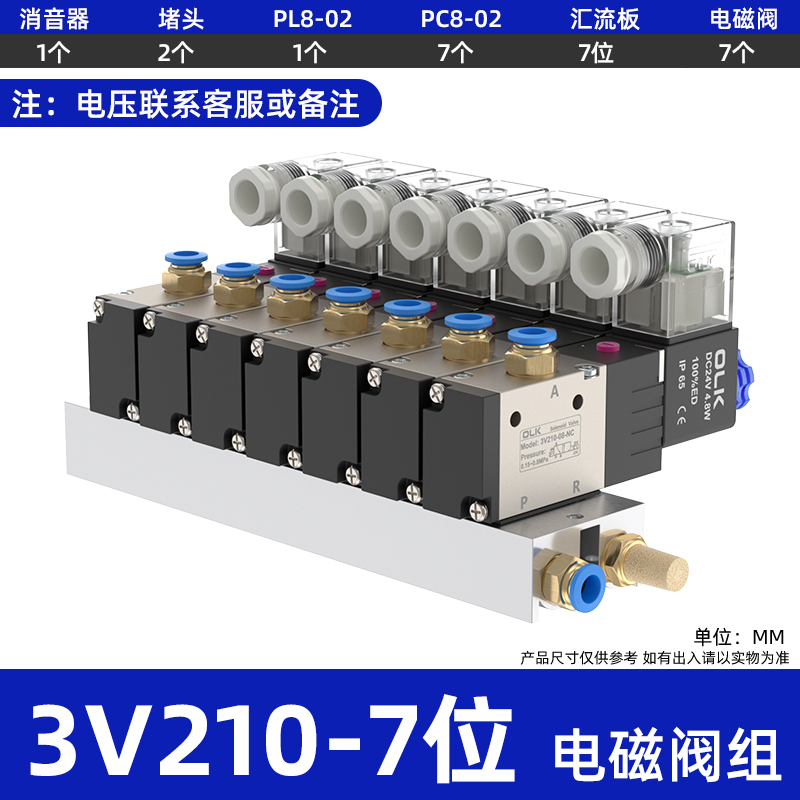

	3v110-7f 3v210-7f 3v310-7f	1	2	1	7	7	7

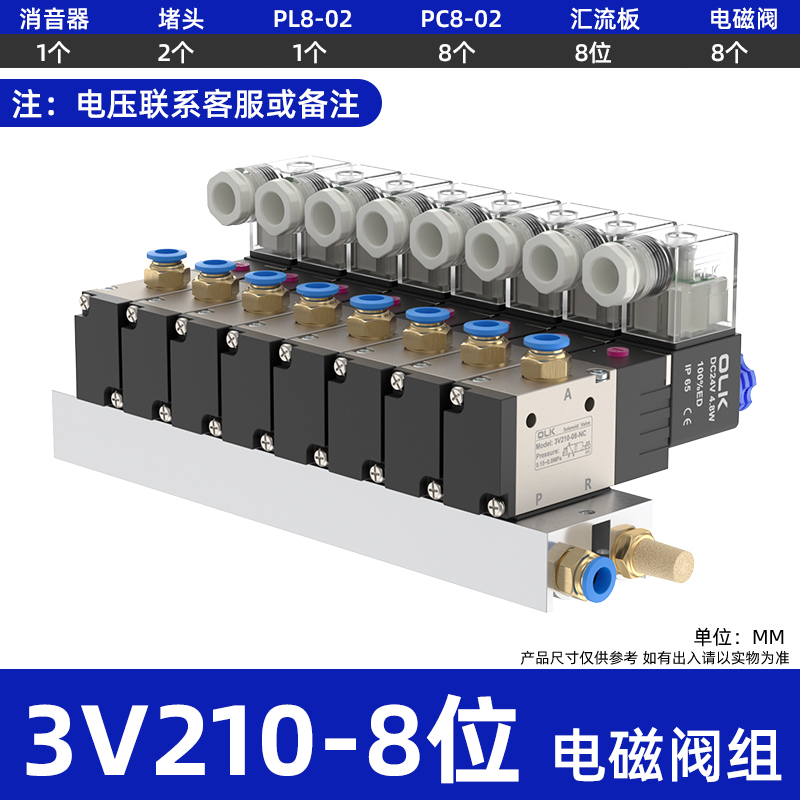

	3v110-8f 3v210-8f 3v310-8f	1	2	1	8	8	8

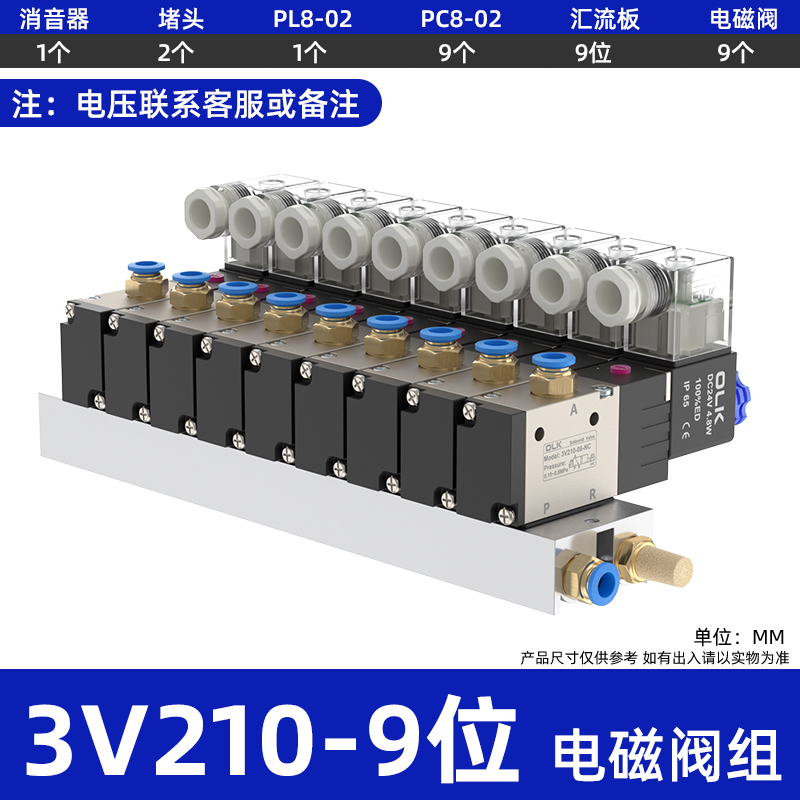

	3v110-9f 3v210-9f 3v310-9f	1	2	1	9	9	9
	Board Bus 3v210-10f 3v310-10f	1	2	1	10	10	10

3v 3v-manifold Valve Valve umum data paramèter:

medium sing digunakake	Udhara (disaring liwat saringan luwih saka 40μm)
Tumindak	Jinis Pilot
Jumlah posisi	Loro posisi telung cara
ora perlu	ora perlu
Range Pressure MPA (PSI)	0.15~0.8 (21 ~ 114)
Resistensi Tekanan Dijamin	1.5MPA (215psi)
Bahan Biru	Aloi Aluminium
Voltase standar	AC220V, AC110V, AC24V, DC24V, DC12V
Gunakake Range Voltase	AC: ± 15% DC: ± 10%
Tingkat Perlindhungan	IP65 (din40050)
kelas resistance panas	Kelas b
Tipe sambungan	Tipe Soket, jinis outlet
Wektu Excitation	0,05 detik utawa kurang

3v-manifold katup macem-macem paramèter

model	Diameteripun port	Suhu suhu ° C	Frekuensi Olahraga Max	Aliran Cross-Sectional Area MM² (Nilai CV)	Konsumsi daya
3v110-m5	M5	-20~70	5 kaping / kapindho	5.5 (0.31)	AC: 3Va DC: 3w
3v120-m5	M5	-20~70	5 kaping / kapindho	5.5 (0.31)	AC: 3Va DC: 3w
3v110-06	G1 / 8	-20~70	5 kaping / kapindho	12.0 (0.67)	AC: 3Va DC: 3w
3v120-06	G1 / 8	-20~70	5 kaping / kapindho	12.0 (0.67)	AC: 3Va DC: 3w
3v210-06	Intake = outlet = g1 / 8	-20~70	5 kaping / kapindho	14.0 (0.78)	AC: 6Va DC: 4.8W
3v220-06	Intake = outlet = g1 / 8	-20~70	5 kaping / kapindho	14.0 (0.78)	AC: 6Va DC: 4.8W
3v210-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	16.0 (0.89)	AC: 6Va DC: 4.8W
3v220-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	16.0 (0.89)	AC: 6Va DC: 4.8W
3v310-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	25,0 (1.39)	AC: 6Va DC: 4.8W
3v320-08	Intake = outlet = g1 / 4	-20~70	5 kaping / kapindho	25,0 (1.39)	AC: 6Va DC: 4.8W
3v310-10	Intake = outlet = g3 / 8	-20~70	5 kaping / kapindho	30.0 (1.67)	AC: 6Va DC: 4.8W
3v320-10	Intake = outlet = g3 / 8	-20~70	5 kaping / kapindho	30.0 (1.67)	AC: 6Va DC: 4.8W
3v410-15	Intake = outlet = g1 / 2	Muffler	3 kaping / kapindho	50.0 (2.79)	AC: 6Va DC: 4.8W
3v420-15	Intake = outlet = g1 / 2	Muffler	3 kaping / kapindho	50.0 (2.79)	AC: 6Va DC: 4.8W

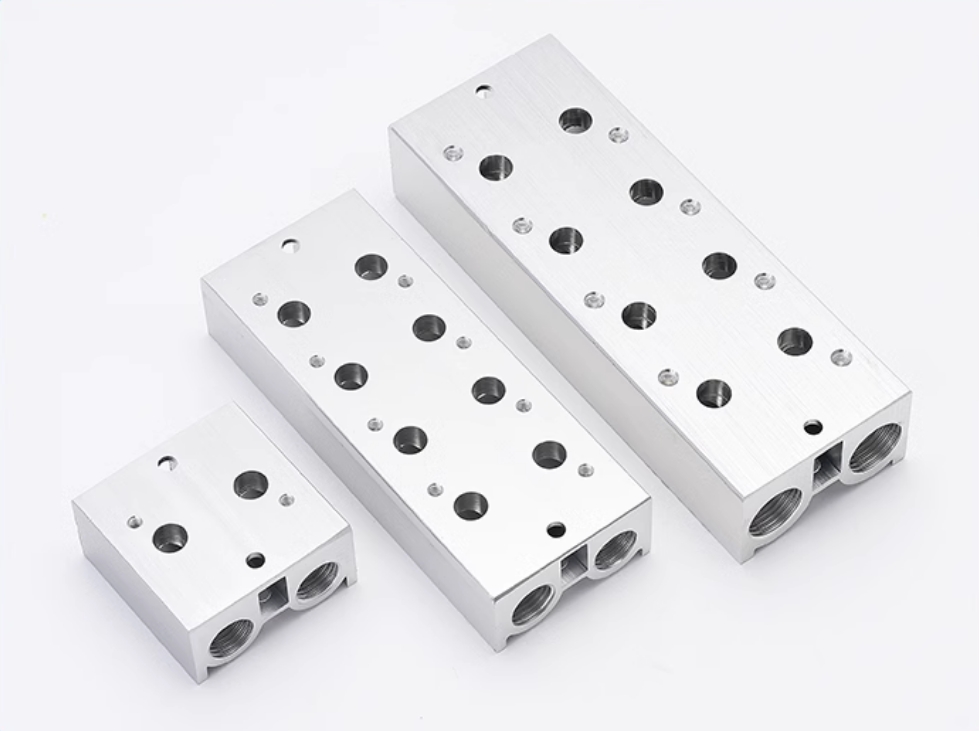

3v katup stabilitas lan meja kuantitas: Kita Nyedhiyani Layanan Majelis (Katve + Manifold + Fittings)

	Katup solenoid 3v	3v Mainfold	Pc Pasting	Tipe Tipe Tipe
