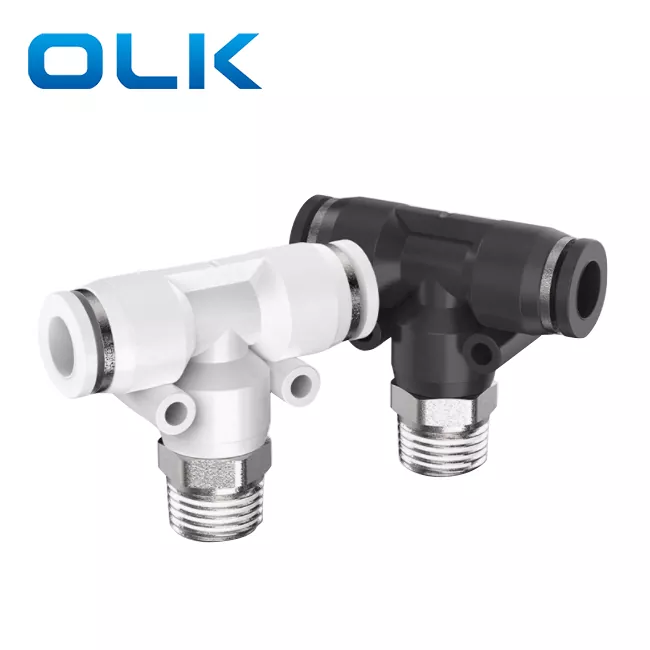

Pb Branch Tee Push ing Pas Tube

OLK minangka salah sawijining cabang China PB sing misuwur ing produsen lan Produsen pas tabung. Pabrik kita spesialisasi ing manufaktur cabang PB nyurung ing pas tabung. Sugeng rawuh kanggo tuku pb branch tee nyurung tabung saka OLK. Saben panjaluk saka para pelanggan wis mangsuli sajrone 24 jam.

Kirim Pitakonan

Deskripsi Produk

Pb Branch Tee nyurung ing pas tabung yaiku paseksi lurus union sing digunakake kanggo nyambungake rong tabung ing sistem pneumatik, njamin panyapihan sing bisa dipercaya lan bisa dipercaya.

Fitur Key Pasting PB: Instalasi Push-to-Sambungake kanthi cepet lan Gampang; Sambungan tabung dual-mburi langsung

Pesenan kode
Pb	8	-	01
Model	Ukuran tabung (metrik)		Jinis benang (benang tabung 55 °)
PB Series Fitting PB	4: 4mm		01: G1 / 8
	6: 6mm		02: G1 / 4
	8: 8mm		03: G3 / 8
	10: 10mm		04: G1 / 2
	12: 12mm
	14: 14mm
	16: 16mm

Pb Branch Tee Push Ing Tube Potongan Umum Parameter Dhasar

Cairan	Udhara / Banyu (Kondisi) / Vacuum
Tekanan operasi	0-1.0MPA
Tekanan Vacuum	-100kpa (10 Torr)
Suhu operasi	-10-60 ℃
Bahan	Nylon (PA), polyurethane (PU)

Pb Branch Tee Push ing Parameter Ikatan Ikatan TUBE

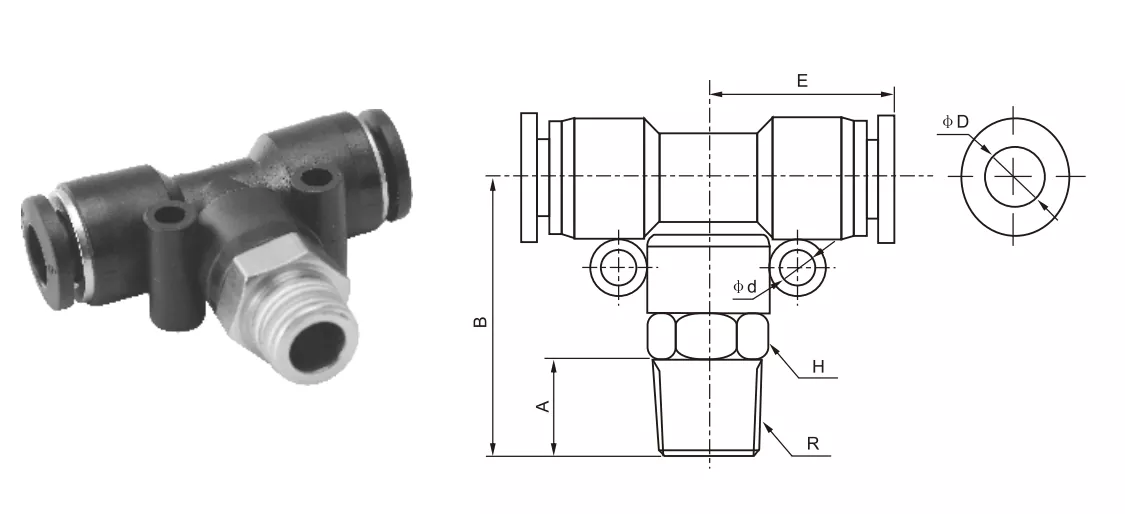

Pas tabung tabung inci	Iklan Tube Metri	φd	R	A	B	E	H2	φd
PB5 / 32-M5	PB4-M5	4	M5	4.5	25.4	18.6	10	/
PB5 / 32-01	PB4-01	4	R1 / 8	7	25.4	18.6	10	/
PB5 / 32-02	PB4-02	4	R1 / 4	9	27.8	18.6	14	/
PB1 / 4-M5	PB6-M5	6	M5	4.5	26.8	20.8	12	3.5
PB1 / 4-01	PB6-01	6	R1 / 8	6.5	37.6	20.8	12	3.5
PB1 / 4-02	PB6-02	6	R1 / 4	9	30	20.8	14	3.5
PB1 / 4-03	PB6-03	6	R3 / 8	10	30.6	20.8	17	3.5
PB1 / 4-04	PB6-04	6	R1 / 2	10	32.5	20.8	21	3.5
PB5 / 16-01	PB8-01	8	R1 / 8	8	31.5	22.9	14	4.5
PB5 / 16-02	PB8-02	8	R1 / 4	10	33	22.9	14	4.5
PB5 / 16-03	PB8-03	8	R3 / 8	10	33.6	22.9	17	4.5
PB5 / 16-04	PB8-04	8	R1 / 2	11	35	22.9	21	4.5
PB3 / 8-01	PB10-01	10	R1 / 8	8	37	27.8	17	4
PB3 / 8-02	PB10-02	10	R1 / 4	10	38	27.8	17	4
PB3 / 8-03	PB10-03	10	R3 / 8	10	38	27.8	17	4.5
PB3 / 8-04	PB10-04	10	R1 / 2	11	39	27.8	21	4.5
PB1 / 2-01	PB12-01	12	R1 / 8	8	37.5	29.5	19	5
PB1 / 2-02	PB12-02	12	R1 / 4	10	40	29.5	19	5
PB1 / 2-03	PB12-03	12	R3 / 8	10	40	29.5	19	5
PB1 / 2-04	PB12-04	12	R1 / 2	11	41	29.5	21	5
	PB14-03	16	R3 / 8	11	46.3	34.5	24	4
	PB14-04	16	R1 / 2	12	47.3	34.5	27	4

Ing sendi pneumatik, struktur tee (t-berbentuk sing umum dibedakake

Jeneng / Tipe	Katrangan Struktur Antarmuka
Run Tee (Pd)	AIRFLOW utama langsung, lan cabang dipimpin kanthi vertikal
Cabang tee (pb)	Loro antarmuka sing ana ing sudhut sing pas, siji ing cabang "t"
Tee sing padha	Telung port kanthi ukuran sing padha
