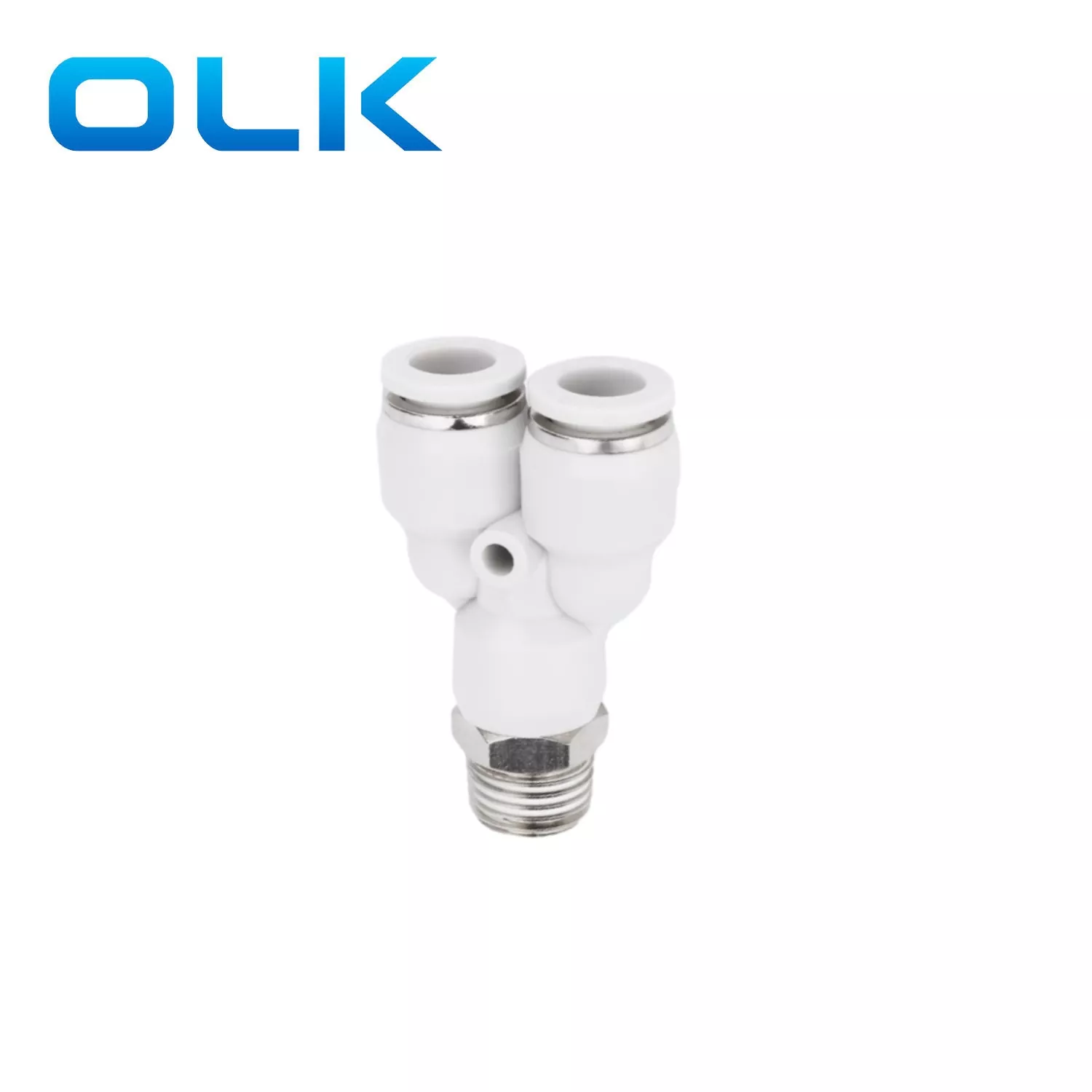

PX Y Ketik desain tabung push-to-sambung.Easy instalasi.Iku tampilan sakabèhé Y-berbentuk Y, kanthi arah aliran sing luwih lancar sing luwih cocog kanggo aliran udara. Lan cara path utama otomatis disambungake. Biasane digunakake kanggo pamisahan gas utawa pipa bantu ing sistem pneumatik.
PX digawe saka tembaga lan ora cacat sing gampang.
|
Pesenan kode |
|||
|
Px |
8 |
- |
01 |
|
Model |
Ukuran tabung (metrik) |
|
Jinis benang (benang tabung 55 °) |
|
PX Series Fapt |
4: 4mm |
|
01: G1 / 8 |
|
|
6: 6mm |
|
02: G1 / 4 |
|
|
8: 8mm |
|
03: G3 / 8 |
|
|
10: 10mm |
|
04: G1 / 2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|

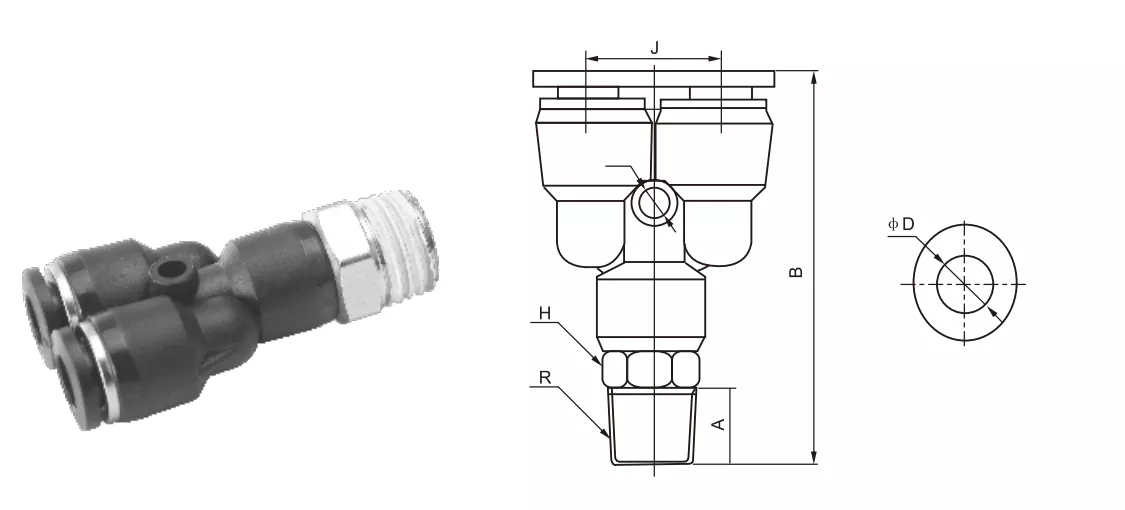

PX Y Tipe Push-In Tube
|
Cairan |
Udhara / Banyu (Kondisi) / Vacuum |
|
Tekanan operasi |
0-1.0MPA |
|
Tekanan Vacuum |
-100kpa (10 Torr) |
|
Suhu operasi |
-10-60 ℃ |
|
Bahan |
Nylon (PA), polyurethane (PU) |
|
Pas tabung tabung inci |
Iklan Tube Metric |
φd |
R |
A |
B |
E |
J |
φd |
|
PX5 / 32-M5 |
Px4-m5 |
4 |
M5 |
4.5 |
42.5 |
10 |
10.8 |
2.5 |
|
PX5 / 32-01 |
Px4-01 |
4 |
R1 / 8 |
7 |
43 |
10 |
10.8 |
2.5 |
|
PX5 / 32-02 |
Px4-02 |
4 |
R1 / 4 |
9 |
44 |
14 |
10.8 |
3 |
|
PX1 / 4-M5 |
Px6-m5 |
6 |
M5 |
4.5 |
41.5 |
12 |
13.4 |
3.5 |
|
PX1 / 4-01 |
Px6-01 |
6 |
R1 / 8 |
6.5 |
46 |
12 |
13.4 |
3.5 |
|
PX1 / 4-02 |
Px6-02 |
6 |
R1 / 4 |
9 |
48.5 |
14 |
13.4 |
3.5 |
|
PX1 / 4-03 |
Px6-03 |
6 |
R3 / 8 |
10 |
49 |
17 |
13.4 |
3.5 |
|
PX1 / 4-04 |
Px6-04 |
6 |
R1 / 2 |
10 |
51 |
21 |
13.4 |
3.5 |
|
PX5 / 16-01 |
Px8-01 |
8 |
R1 / 8 |
8 |
51 |
14 |
15.8 |
4 |
|
PX5 / 16-02 |
Px8-02 |
8 |
R1 / 4 |
10 |
52.5 |
14 |
15.8 |
4 |
|
PX5 / 16-03 |
Px8-03 |
8 |
R3 / 8 |
10 |
53.5 |
17 |
15.8 |
4 |
|
PX5 / 16-04 |
Px8-04 |
8 |
R1 / 2 |
11 |
55 |
21 |
15.8 |
4 |
|
PX3 / 8-01 |
Px10-01 |
10 |
R1 / 8 |
8 |
56.5 |
17 |
19 |
4 |
|
PX3 / 8-02 |
Px10-02 |
10 |
R1 / 4 |
10 |
58 |
17 |
19 |
4 |
|
PX3 / 8-03 |
Px10-03 |
10 |
R3 / 8 |
10 |
58 |
17 |
19 |
4 |
|
PX3 / 8-04 |
Px10-04 |
10 |
R1 / 2 |
11 |
59 |
21 |
19 |
4 |
|
PX1 / 2-01 |
Px12-01 |
12 |
R1 / 8 |
8 |
62 |
19 |
21.5 |
4 |
|
PX1 / 2-02 |
Px12-02 |
12 |
R1 / 4 |
10 |
70 |
19 |
21.5 |
4.5 |
|
PX1 / 2-03 |
Px12-03 |
12 |
R3 / 8 |
10 |
70 |
19 |
21.5 |
4.5 |
|
PX1 / 2-04 |
Px12-04 |
12 |
R1 / 2 |
11 |
65 |
21 |
21.5 |
4 |
|
|
PX16-03 |
16 |
R3 / 8 |
11 |
|
|
|
|
|
|
PX16-04 |
16 |
R1 / 2 |
12 |
|
|
|
|
|

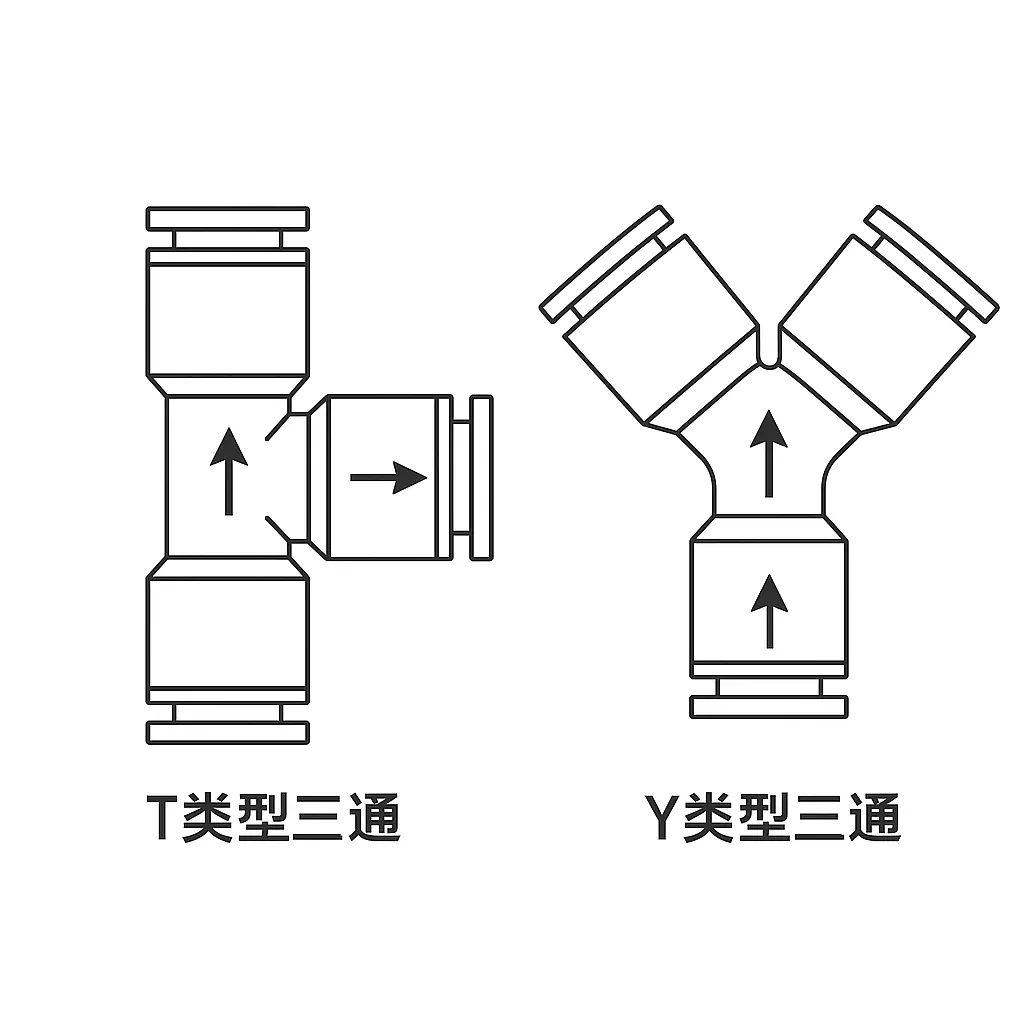

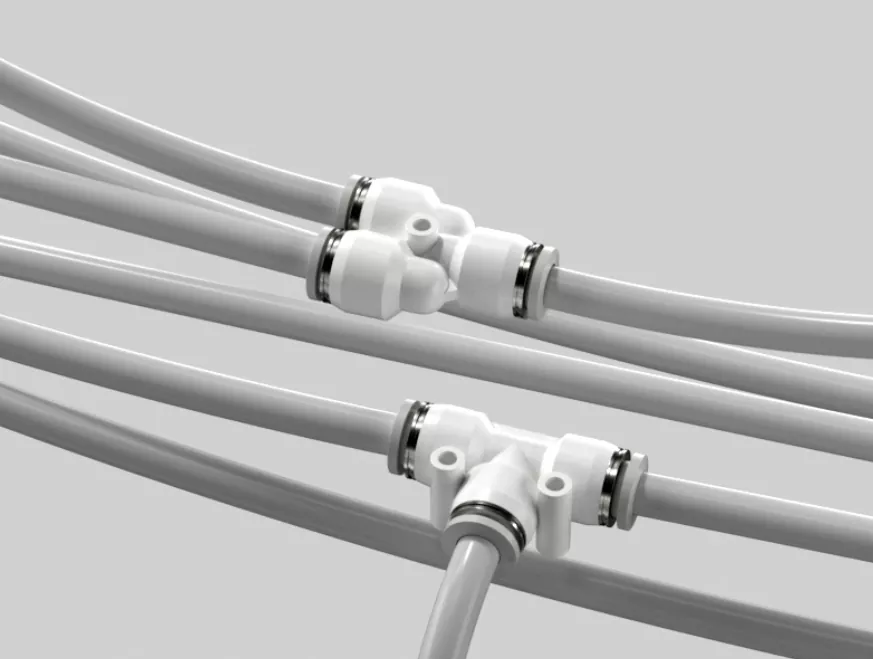

Persamaan lan bedane antara tabung tabung tabung Y-Y-Y: |
|
|
Celengan Tee (PB, PD) |
THE3 Cara Preumatic pass kaya struktur "T" lan intersect ing sudut 90 ° |
|
Y Fitting (PX) |
THE3 Cara Paskah Kaya "Y" Struktur Aliran Lansmooth, Aliran Foroir sing Luwih Apik |
|
Dibandhingake karo papan sing cocog karo T-shapedairic, fittingflow konektor y-shapedair licik lan kurang resistensi |
|
Apa ciri-ciri sing cocog karo Y Jinis dibandhingake karo jinis pneumatik?
Dibandhingake karo radhang pneumatik T-berbentuk, aliran ukuran konektor udara y-berbentuk iki luwih lancar lan kurang resistensi
Apa tekanan operasi px y tabung
Tekanan operasi pneumatik px yaiku 0-1.bada.
