PG Reducer Union Straight Push In Tube Fitting

Model:PG6-4

Sampeyan bisa yakin kanggo tuku PG Reducer Union Straight Push In Tube Fitting saka pabrik kita lan kita bakal menehi layanan sawise-sale paling apik lan pangiriman pas wektune.

Brand:
OLK
Type:
Reducer Union Straight
Color:
Black,White,Blue

Kirim Pitakonan

Deskripsi Produk

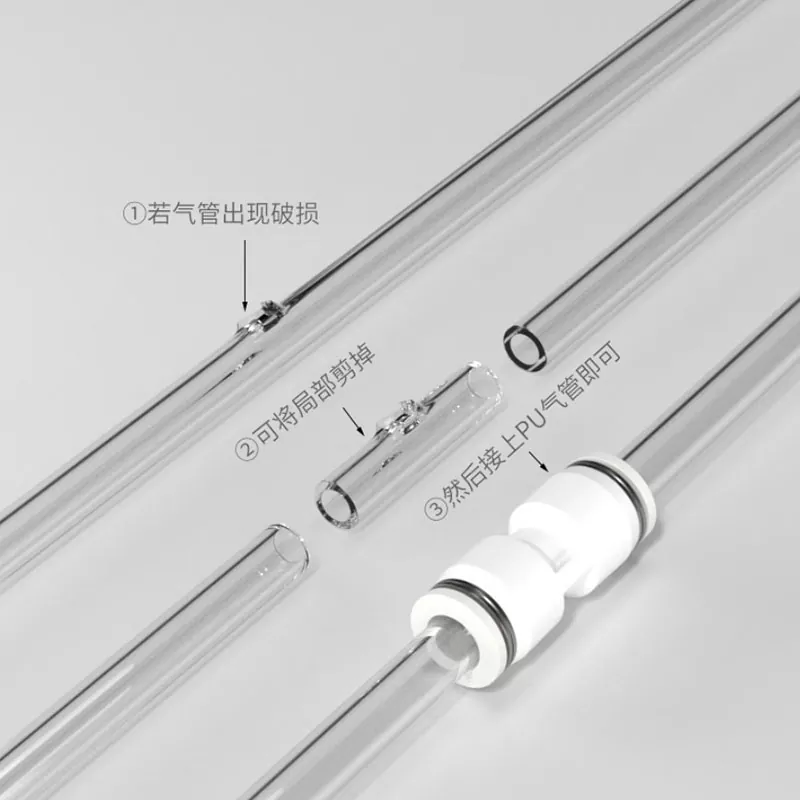

OLK merek PG Reducer Union Straight Push In Tube Fitting digunakake kanggo nyambungake tabung udara kanthi diameter beda, kayata 6mm nganti 4mm. Iku cocok kanggo spasi nyenyet utawa nalika transisi ukuran dibutuhake.

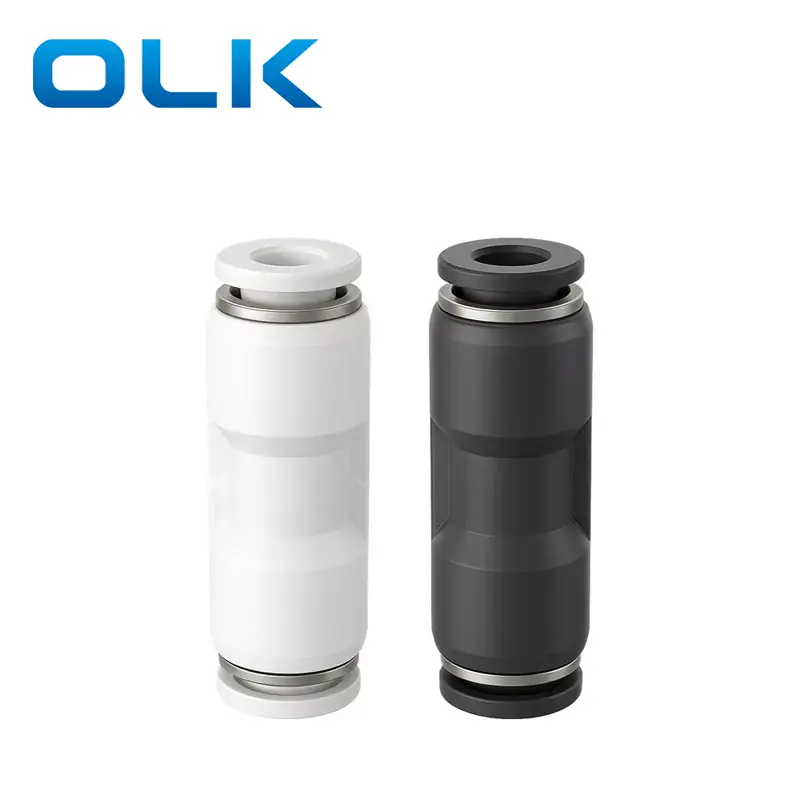

Konektor kasedhiya ing telung werna: biru, putih, lan ireng.

Kode pesenan
PG	8	--	01
Model	Ukuran tabung (metrik)		Ukuran tabung (metrik)
PG seri pas	4: 4mm		4: 4mm
	6: 6mm		6: 6mm
	8: 8mm		8: 8mm
	10:10 mm		10:10 mm
	12:12 mm		12:12 mm
	14:14 mm		14:14 mm
	16:16 mm		16:16 mm

PG Reducer Union Straight Push In Tube Fitting Umum paramèter dhasar

Cairan	Udara/banyu (kondisional)/vakum
Tekanan operasi	0-1.0Mpa
Tekanan vakum	-100Kpa (10 Torr)
Suhu operasi	-10-60 ℃
Bahan	NYLON(PA),Polyurethane(PU)

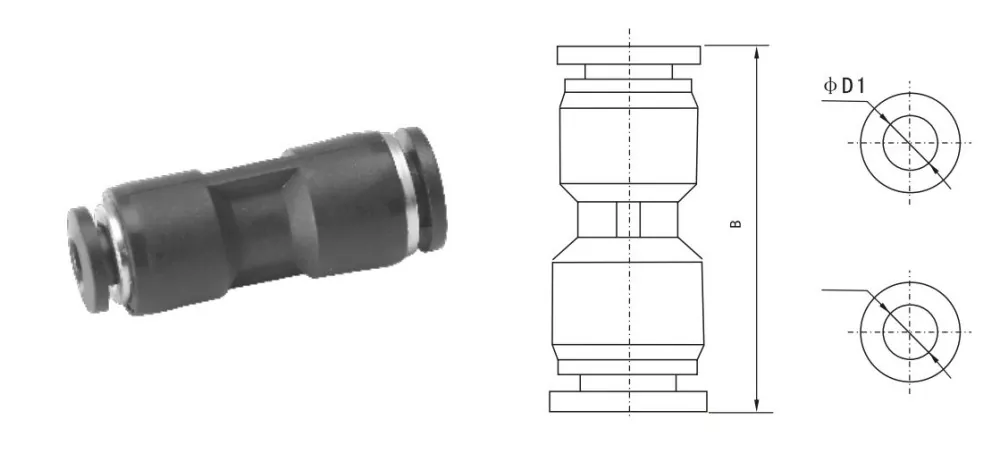

PG Reducer Union Straight Push In Tube Fitting Parameter dimensi Outline

Fitting Tabung Inch	MetricTube Fitting	φD1	φD2	B
PG1/4-5-32	PG6-4	6	4	35
PG5/16-1/4	PG8-6	8	6	35.5
PG3/8-5/16	PG10-8	10	8	38
PG1/2-13/8	PG12-10	12	10	47
	PG16-12	12	12	47.5
PG2/6-5/32	PG8-4	8	4	47.5
PG3/8-1/4	PG8-4	10	6	67
PG1/2-5/16	PG12-8	12	8	67

Referensi Konversi Ukuran Utas Imperial Umum
Ukuran Imperial	Kira-kira. Metrik (mm)	Formula Konversi
1/8	3,2 mm	1÷8×25.4=3.175
5/32	3,97 mm	5÷32×25.4=3.97
1/4	6,35 mm	1÷4×25.4=6.35
5/16	7,94 mm	5÷16×25.4=7.94
3/8	9,53 mm	3÷8×25.4=9.53
1/2	12,7 mm	1÷2×25.4=12.7
