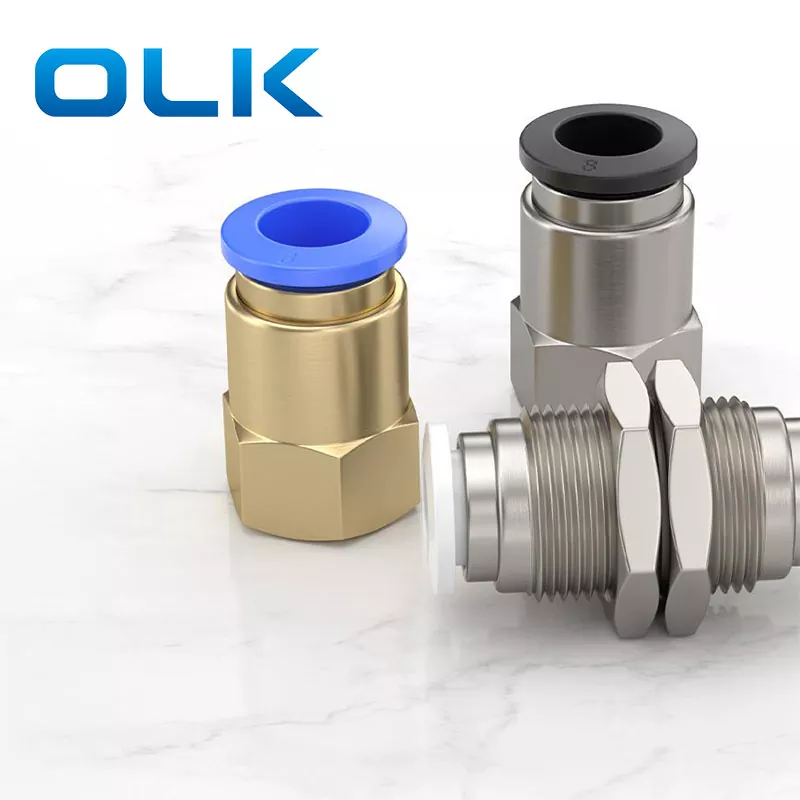

Brand:
OLKType:
Femal BSPT Thread (R Thread ) StraightColor:

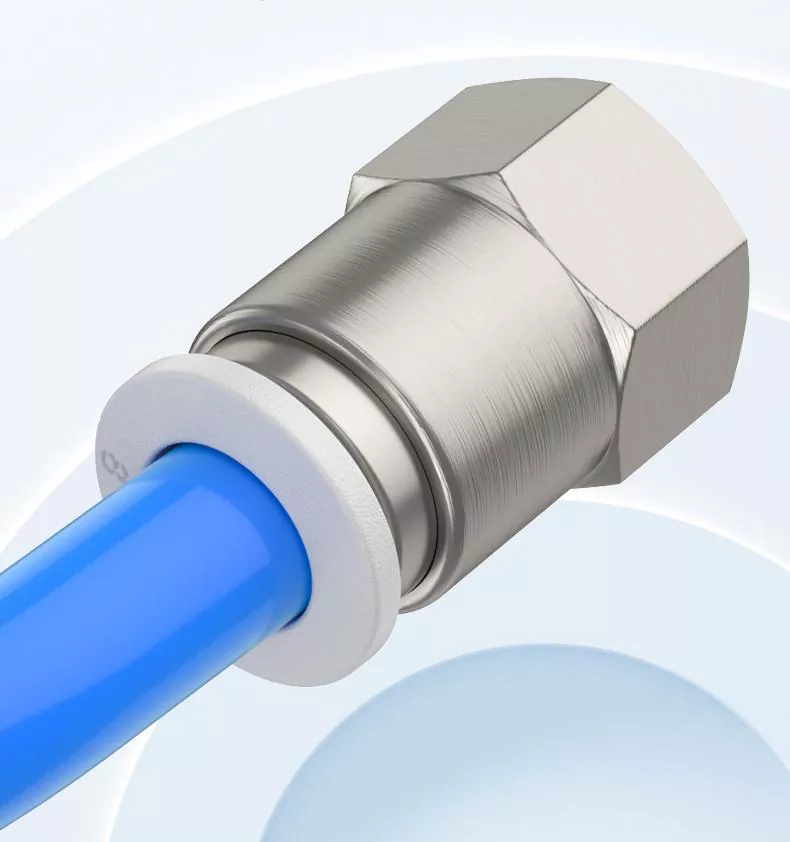

Black,White,BluePCF Female Straight Push In Tube Fitting lan PC thread lanang terus push in tube fitting kabeh kalebu jinis dhasar push-in-fitting.Nanging PCF iku Utas R wadon straight.Internal thread digunakake kanggo nyambungake komponen Utas external, lan mburi tabung selipan disambungake menyang hose.Loro-lorone ndhukung sawetara standar Utas, nggawe selipan selang lan mbusak Fesh internal Female Fitting produk, lan fitur PC Fitting internal Fesh. wangun bisa luwih cendhek lan dipasang luwih kompak
|
Kode pesenan |
|||
|
PCF |
8 |
-- |
01 |
|
Model |
Ukuran tabung (metrik) |
|
Tipe Utas (Utas tabung lurus 55°) |
|
PCF seri pas |
4: 4mm |
|
01:G1/8 |
|
|
6: 6mm |
|
02:G1/4 |
|
|
8: 8mm |
|
03:G3/8 |
|
|
10:10 mm |
|
04:G1/2 |
|
|
12:12 mm |
|
|
|
|
14:14 mm |
|
|
|
|
16:16 mm |
|
|
|
Cairan |
Udara/banyu (kondisional)/vakum |
|
Tekanan operasi |
0-1.0Mpa |
|
Tekanan vakum |
-100Kpa (10 Torr) |
|
Suhu operasi |
-10-60 ℃ |
|
Bahan |
NYLON(PA),Polyurethane(PU) |
|
Fitting Tabung Inch |
Fitting Tube Metrik |

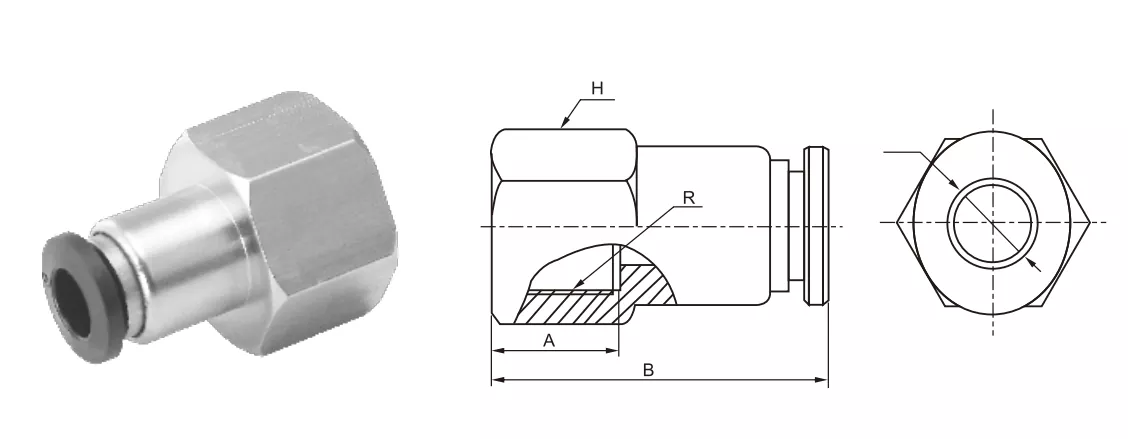

φD |
R |
A |
B |
H |
|
PCF5/32-M5 |
PCF4-M5 |
4 |
M5 |
6.5 |
24.4 |
10 |
|
PCF5/32-01 |
PCF4-01 |
4 |
R1/8 |
9 |
26.6 |
10 |
|
PCF5/32-02 |
PCF4-02 |
4 |
R1/4 |
11 |
28.8 |
15 |
|
PCF1/4-M5 |
PCF6-M5 |
6 |
M5 |
6.5 |
24 |
12 |
|
PCF1/4-01 |
PCF6-01 |
6 |
R1/8 |
9 |
28 |
12 |
|
PCF1/4-02 |
PCF6-02 |
6 |
R1/4 |
11 |
30 |
15 |
|
PCF1/4-03 |
PCF6-03 |
6 |
R3/8 |
12 |
30.5 |
19 |
|
PCF1/4-04 |
PCF6-04 |
6 |
R1/2 |
12.5 |
31.5 |
24 |
|
PCF5/16-01 |
PCF8-01 |
8 |
R1/8 |
9 |
28.5 |
14 |
|
PCF5/16-02 |
PCF8-02 |
8 |
R1/4 |
11 |
30.5 |
15 |
|
PCF5/16-03 |
PCF8-03 |
8 |
R3/8 |
12 |
31 |
19 |
|
PCF5/16-04 |
PCF8-04 |
8 |
R1/2 |
12.5 |
32.5 |
24 |
|
PCF3/8-01 |
PCF10-01 |
10 |
R1/8 |
9 |
32.4 |
17 |
|
PCF3/8-02 |
PCF10-02 |
10 |
R1/4 |
11 |
34 |
17 |
|
PCF3/8-03 |
PCF10-03 |
10 |
R3/8 |
12 |
34 |
19 |
|
PCF3/8-04 |
PCF10-04 |
10 |
R1/2 |
12.5 |
35 |
24 |
|
PCF1/2-01 |
PCF12-01 |
12 |
R1/8 |
9 |
35 |
19 |
|
PCF1/2-02 |
PCF12-02 |
12 |
R1/4 |
11 |
35 |
19 |
|
PCF1/2-03 |
PCF12-03 |
12 |
R3/8 |
12 |
35 |
19 |
|
PCF1/2-04 |
PCF12-04 |
12 |
R1/2 |
12.5 |
36.5 |
24 |
|
|
PCF16-03 |
16 |
R3/8 |
16.5 |
46.4 |
24 |
|
|
PCF16-04 |
16 |
R1/2 |
18 |
48.4 |
32 |
|
|
PC |
PCF |
|
Jinis |
Push-in-konektor |
|
|
Dhukungan jinis thread |
BSPT / NPT / Metrik |
|
|
Utas |
lanang |
wadon |
|
Instalasi |
Screw ing bolongan Utas utawa silinder lan ends peralatan liyane |
Screw menyang silinder externally Utas utawa joints |
|
Aplikasi |
Model universal sing paling umum, disenengi, dilengkapi peralatan benang internal |
Digunakake kanggo nyambungake karo fitting Utas njaba utawa ing kahanan karo syarat papan dhuwur |
|
Dipasang ing awak silinder utawa katup (silinder duwe benang internal), ujung benang disambungake menyang peralatan, lan selang dipasang kanggo digunakake |
Sambungake stopkontak udhara katup kontrol utawa katup solenoid (kanthi benang eksternal) lan ndandani piranti kasebut nganggo benang internal, lan lebokake selang ing ujung liyane. |
|
|
Mbutuhake kekuatan ngunci kuwat utawa syarat sealing luwih, asring digunakake magepokan karo sealant thread utawa O-ring |
Amarga papan sing winates, mung benang internal sing bisa digunakake kanggo sambungan. Bisa nyuda dawa gabungan sakabèhé |
|
Apa aplikasi pneumatik cocok kanggo PCF Female Straight Push In Tube Fitting?
Iku kudu sambungan aksesoris Utas external karo syarat papan dhuwur
Apa sing kudu digatekake nalika nggunakake sambungan konektor PCF?
Tekanan operasi ora bisa ngluwihi 1.0MPa
