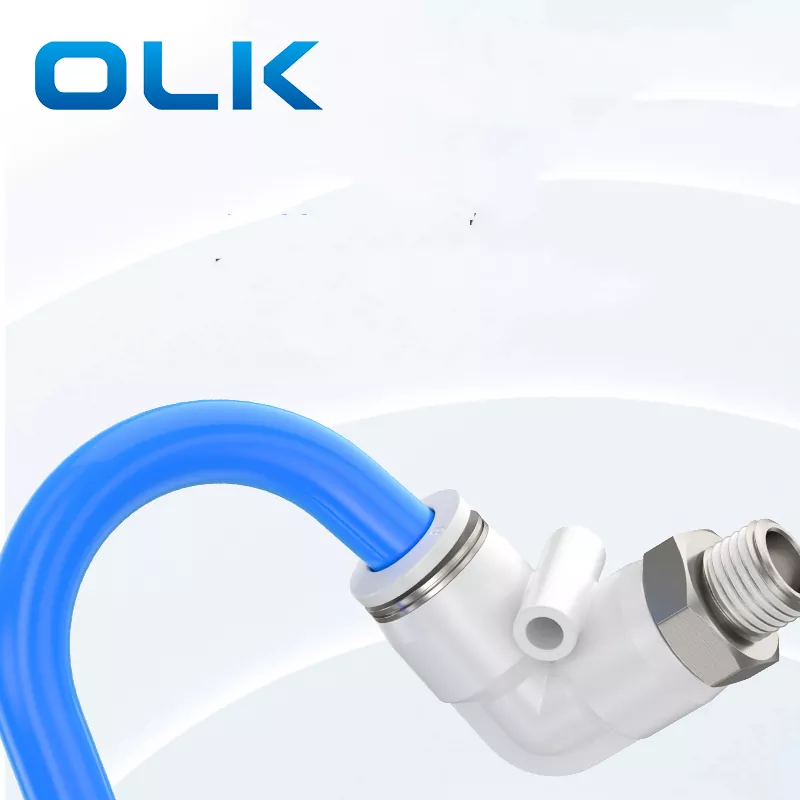

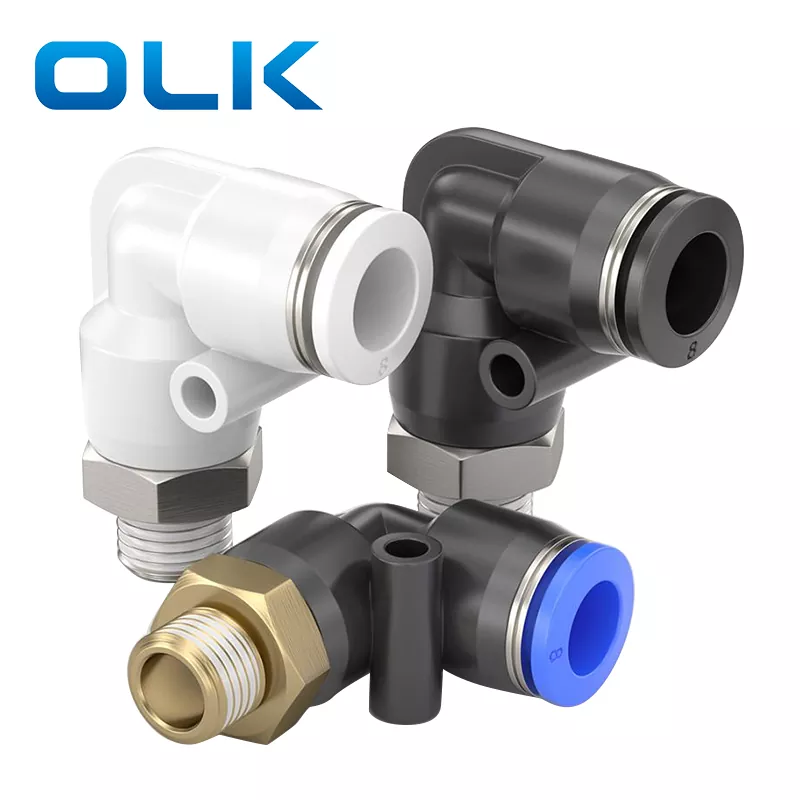

Penggemung PL Push ing pas tabung tabung minangka konektor sikut abang 90 derajat kanggo digunakake ing ruang sing diputiran utawa ing ngendi pangalihan tubing dibutuhake.
Fitur Produk: Struktur Kompak, cocog kanggo papan cilik; desain setir sisih tengen, trep kanggo tracheal wiring
|
Pesenan kode |
|||
|
Pl |
8 |
- |
01 |
|
Model |
Ukuran tabung (metrik) |
|
Jinis benang (benang tabung 55 °) |
|
|
4: 4mm |
|
01: G1 / 8 |
|
|
6: 6mm |
|
02: G1 / 4 |
|
|
8: 8mm |
|
03: G3 / 8 |
|
|
10: 10mm |
|
04: G1 / 2 |
|
|
12: 12mm |
|
|
|
|
14: 14mm |
|
|
|
|
16: 16mm |
|
|
|
Cairan |
Udhara / Banyu (Kondisi) / Vacuum |
|
Tekanan operasi |
0-1.0MPA |
|
Tekanan Vacuum |
-100kpa (10 Torr) |
|
Suhu operasi |
-10-60 ℃ |
|
Bahan |
Nylon (PA), polyurethane (PU) |
|
Pas tabung tabung inci |
Iklan Tube Metric |
φd |
R |
A |
B |
H |
E |
φd |
|
PL5 / 32-M5 |
Pl4-m5 |
4 |
M5 |
4.5 |
25 |
10 |
19.7 |
/ |
|
PL5 / 32-01 |
Pl4-01 |
4 |
R1 / 8 |
7 |
26.5 |
10 |
19.7 |
/ |
|
PL5 / 32-02 |
Pl4-02 |
4 |
R1 / 4 |
9 |
28 |
14 |
19.7 |
/ |
|
Pl1 / 4-M5 |
Pl6-m5 |
6 |
M5 |
4.5 |
27.5 |
12 |
20.8 |
3.5 |
|
Pl1 / 4-01 |
Pl6-01 |
6 |
R1 / 8 |
7 |
27.5 |
12 |
20.8 |
3.5 |
|
Pl1 / 4-02 |
Pl6-02 |
6 |
R1 / 4 |
9 |
29.5 |
14 |
20.8 |
3.5 |
|
PL1 / 4-03 |
PL6-03 |
6 |
R3 / 8 |
10 |
30.5 |
17 |
20.8 |
3.5 |
|
PL1 / 4-04 |
PL6-04 |
6 |
R1 / 2 |
11 |
32 |
21 |
20.8 |
3.5 |
|
PL5 / 16-01 |
Pl8-01 |
8 |
R1 / 8 |
8 |
31.7 |
14 |
23.5 |
4.5 |
|
PL5 / 16-02 |
Pl8-02 |
8 |
R1 / 4 |
10 |
33.8 |
14 |
23.5 |
4.5 |
|
PL5 / 16-03 |
Pl8-03 |
8 |
R3 / 8 |
10 |
33.8 |
17 |
23.5 |
4.5 |
|
PL5 / 16-04 |
Pl8-04 |
8 |
R1 / 2 |
11 |
35.5 |
21 |
23.5 |
4.5 |
|
PL3/8-01 |
Pl10-01 |
10 |
R1 / 8 |
8 |
35.5 |
17 |
27.4 |
4.5 |
|
PL3 / 8-02 |
Pl10-02 |
10 |
R1 / 4 |
10 |
37.5 |
17 |
27.4 |
4.5 |
|
PL3 / 8-03 |
Pl10-03 |
10 |
R3 / 8 |
10 |
38 |
17 |
27.4 |
4.5 |
|
PL3 / 8-04 |
Pl10-04 |
10 |
R1 / 2 |
11 |
38.6 |
21 |
27.4 |
4.5 |
|
Pl1 / 2-01 |
Pl12-01 |
12 |
R1 / 8 |
8 |
38 |
19 |
30.3 |
5 |
|
Pl1 / 2-02 |
Pl12-02 |
12 |
R1 / 4 |
10 |
39.5 |
19 |
30.3 |
5 |
|
Pl1 / 2-03 |
Pl12-03 |
12 |
R3 / 8 |
10 |
40.5 |
19 |
30.3 |
5 |
|
Pl1 / 2-04 |
Pl12-04 |
12 |
R1 / 2 |
11 |
42 |
21 |
30.3 |
5 |
|
|
PL14-03 |
14 |
R3 / 8 |
12 |
42.5 |
24 |
30.3 |
4 |
|
|
PL14-04 |
14 |
R1 / 2 |
15 |
45 |
24 |
30.3 |
4 |
|
|
Pl16-03 |
16 |
R3 / 8 |
15 |
50 |
24 |
34 |
4 |
|
|
Pl16-04 |
16 |
R1 / 2 |
15 |
50.5 |
27 |
34 |
4 |
|

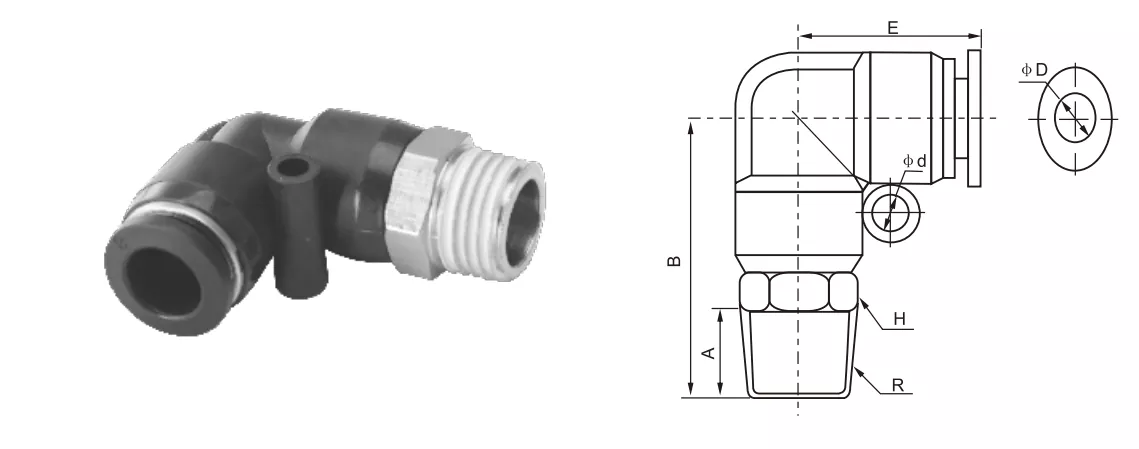

Jeneng / Tipe |
Katrangan Struktur Antarmuka |
|
Sikut pc |
Sendhi pipa mbengkongake ing sudut ° 90 °, lan mburi liyane wis disingkatake internal |
|
PL Elow |
Siji mburi dipasang lan mburi liyane duwe benang eksternal 90 ° |
|
Siku PV |
Loro-lorone pungkasane jinis sisipan tube, kanthi bend 90 ° |
Apa bahan sing digawe konektor sing digawe?
Tembaga
Apa jeneng bagean peralatan sing nyambungake?

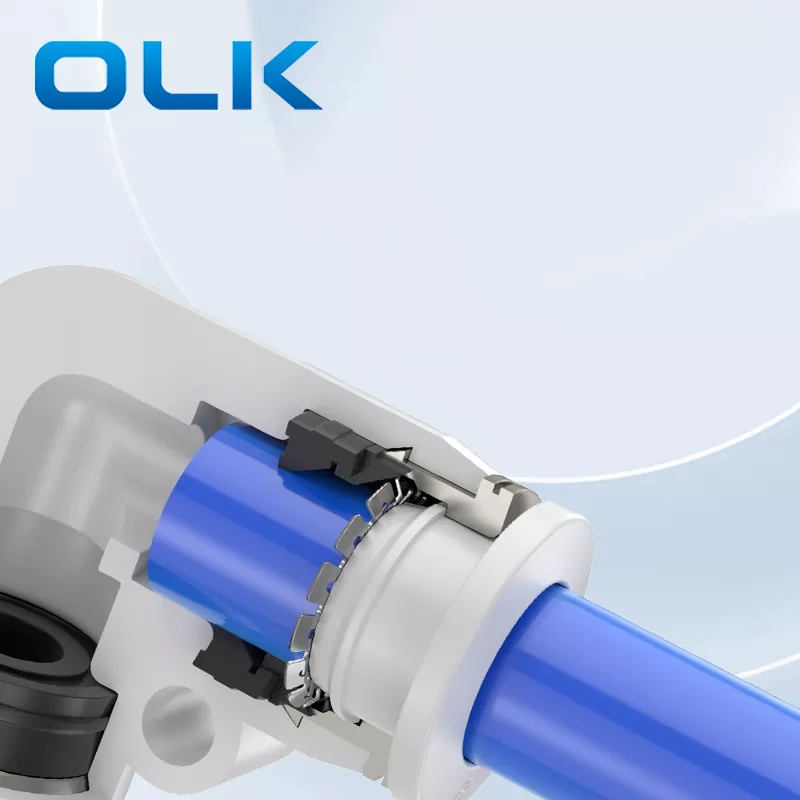

Tube Nyambung cepet kanthi cepet struktur internal: Rilis, Setel Kartu Alloy, Kunci Clip Spring, Lockle Lengan, Clasp Sealing High, Plastik Kekuwatan
Apa jinis planggaran?
Iki minangka Utas Metric, M nggambarake.
Apa tegese 'Elbow' ing pas pneumatic?
Fittow sikut: pas pneumatik sing ngidini tabung kanggo ngganti arah, biasane ing sudut 90 derajat.
