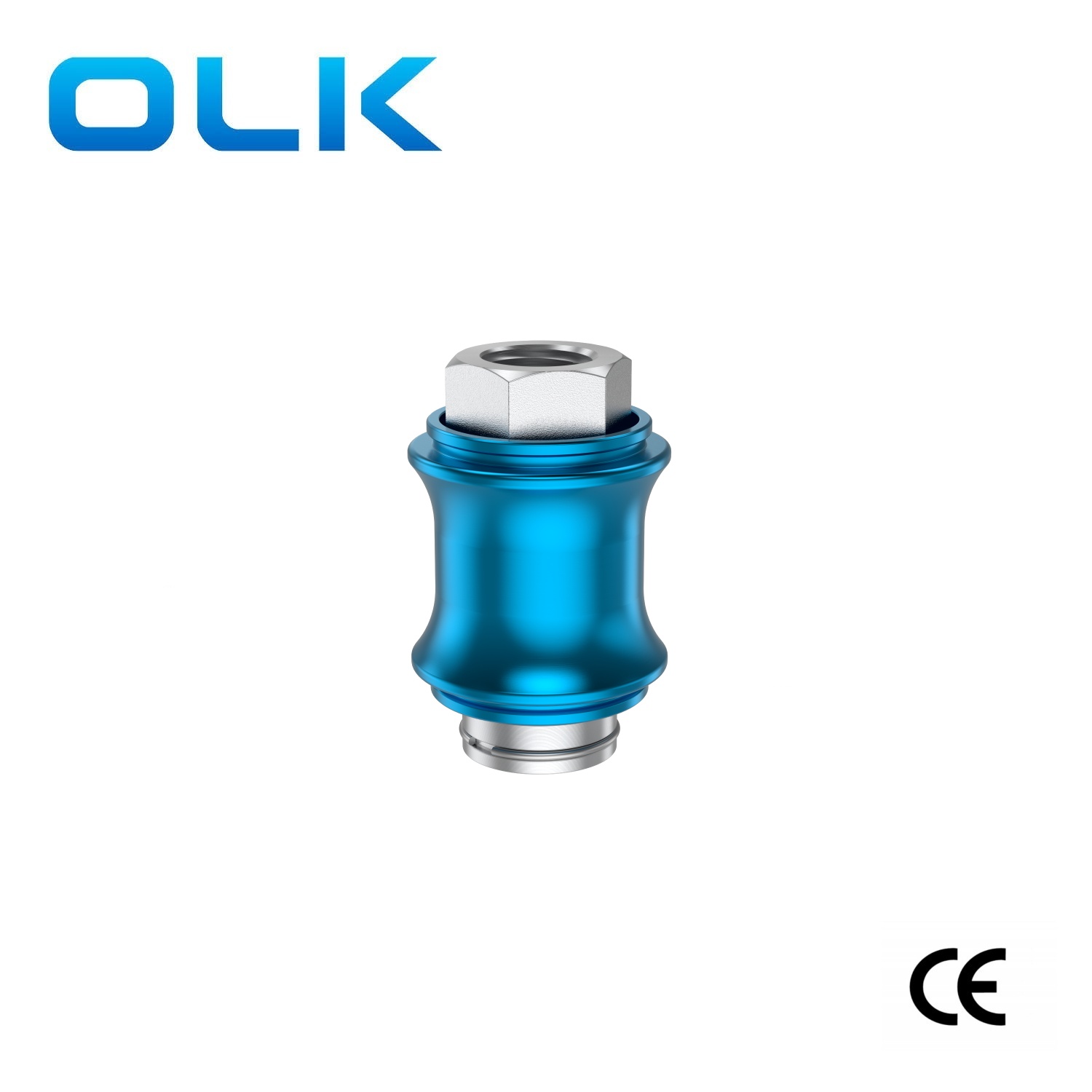

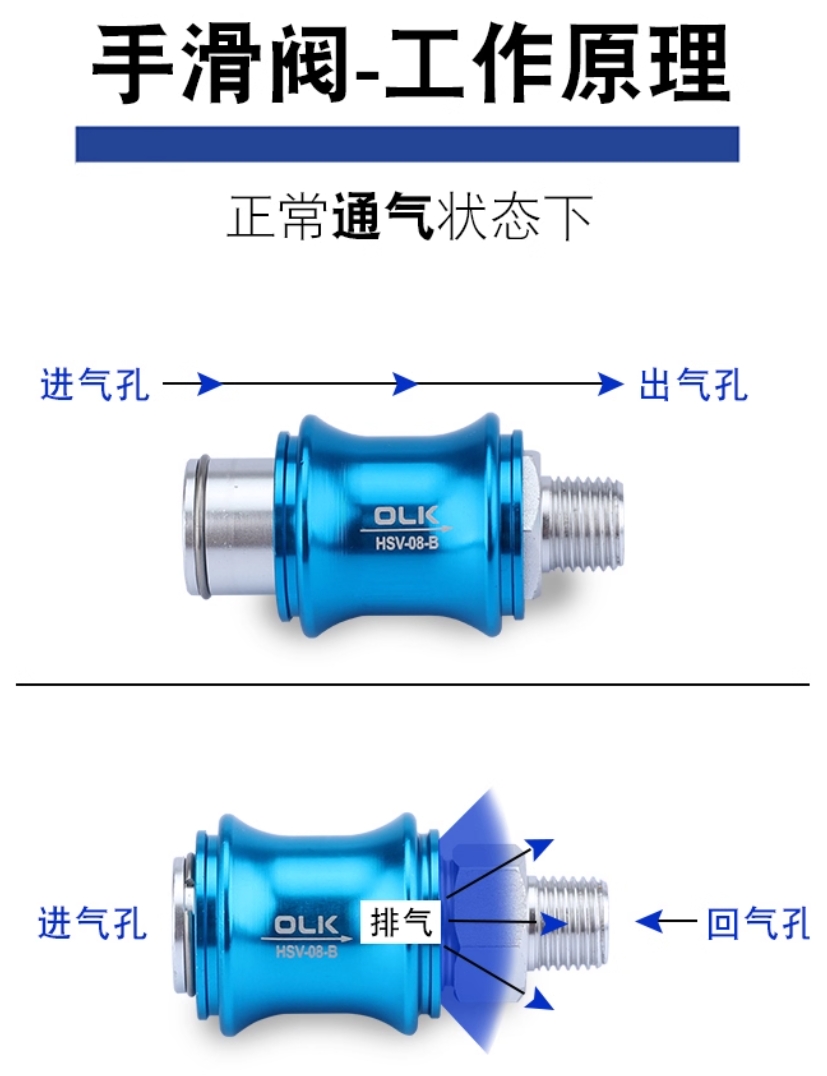

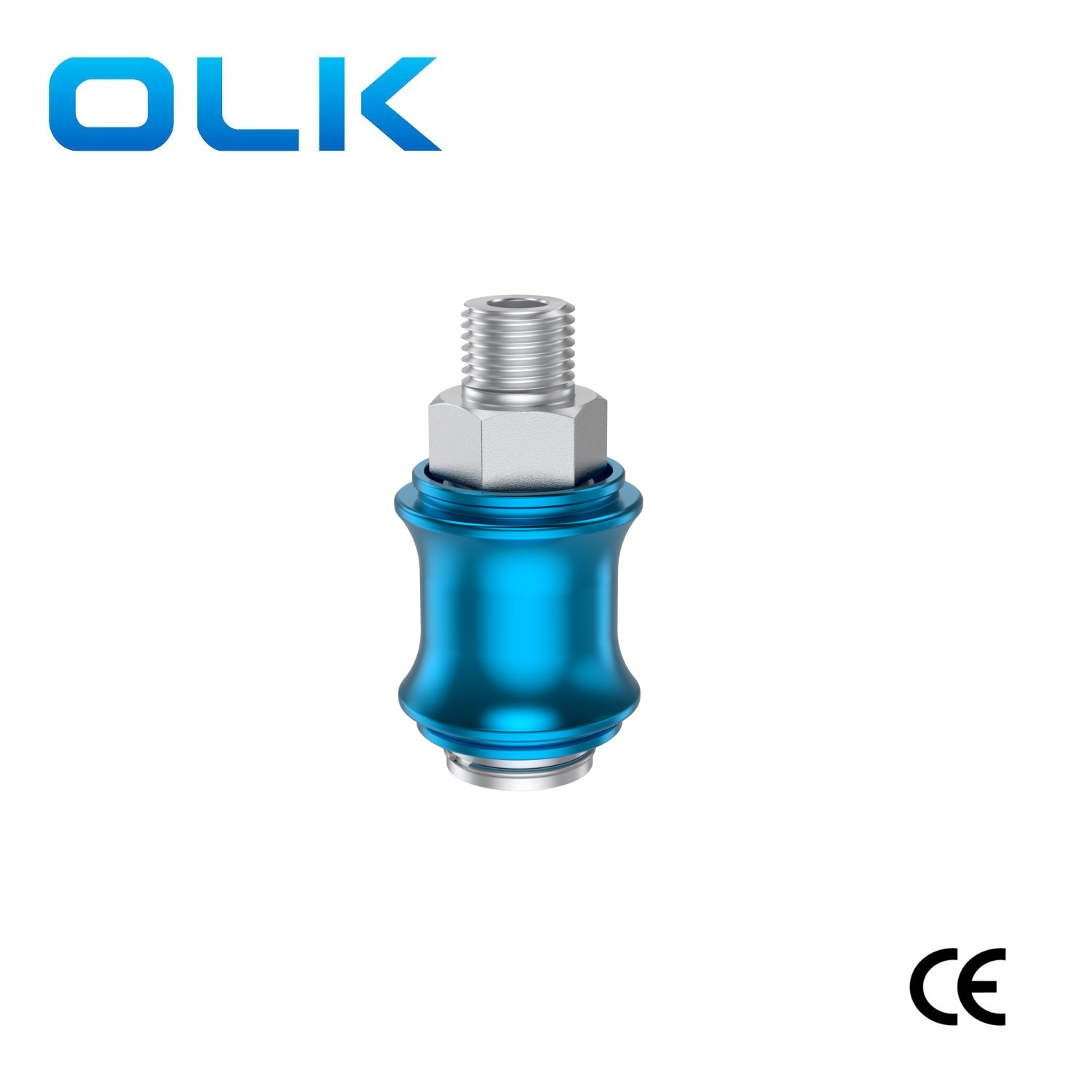

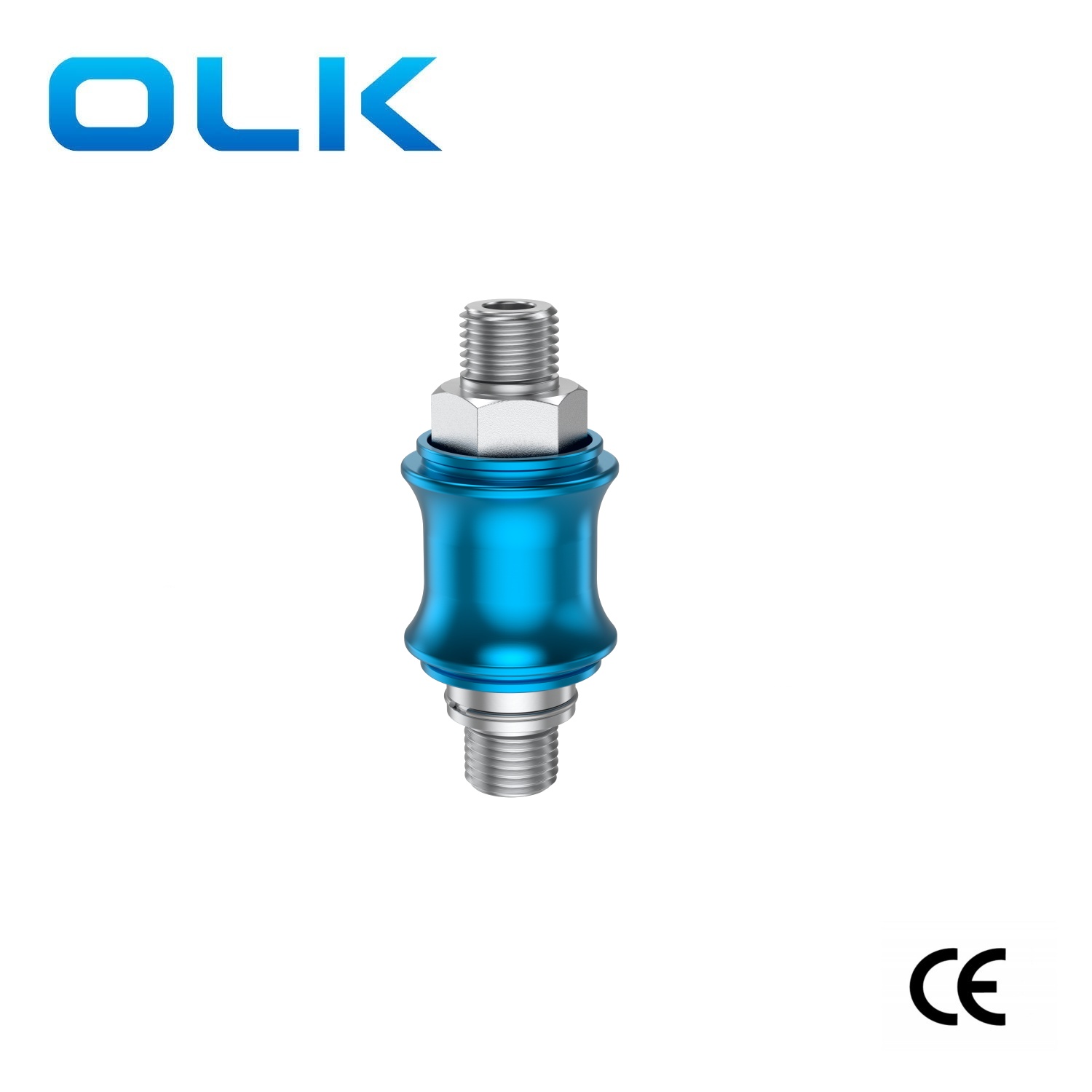

OLK minangka pabrikan profesional, kita pengin nyedhiyani sampeyan kanthi kualitas HSV Series Series Series Valve 3. HSVER (OLK) Series HSV 2/3 katerangan slide tangan operasi kanthi manual kanggo ngoper. Dheweke nampilake struktur sing gampang tanpa komponen kontrol listrik sing komplek, nawakake operasi manual fleksibel lan panyegelan sing apik. Kanthi macem-macem sambungan benang internal lan eksternal, sing cocog digunakake ing macem-macem sistem piping. Ukuran kompak katup geser tangan HSV ngidini instalasi gampang, kanthi cocog kanggo skenario kanthi papan sing winates.
HSV Series 2/3 Klambi geser tangan duwe macem-macem aplikasi, sing kalebu macem-macem lapangan industri lan sipil kayata bahan kimia, petrokimia, kayata cairan, utawa ngganti arah aliran.

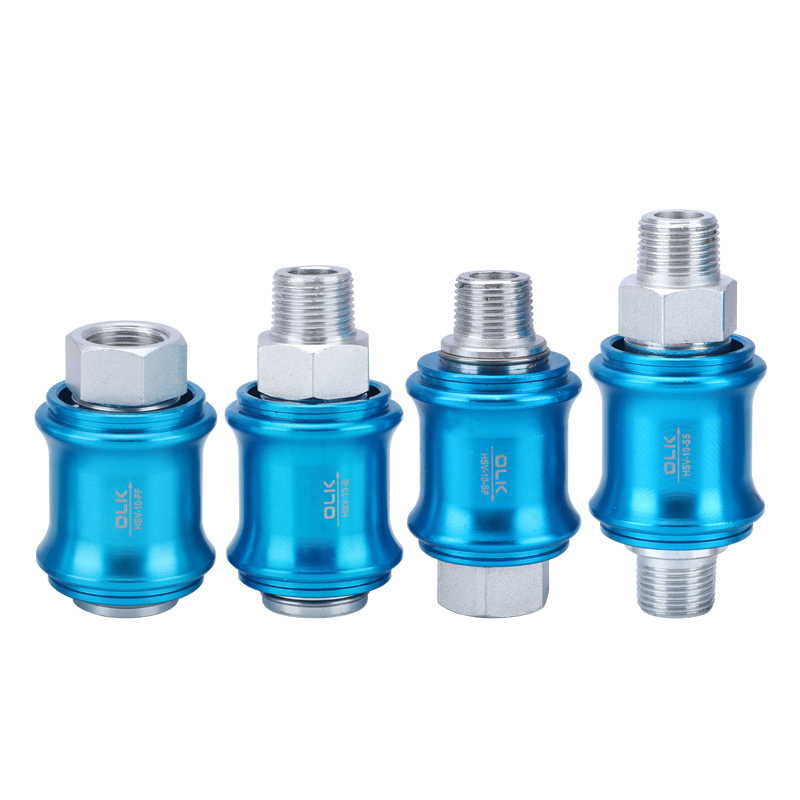

| Pesenan kode |
||||
|
Hsv |
- | 08 | Ss |
|
| Model: |
|
Ukuran Port: | Tipe Tipe: |
Jinis benang: |
| HSV: katup slide tangan |
|
06: 1/8 |
Blank: Standard |
Blank: PT |
|
|
|
08: 1/4 |
SS: benang lanang kaping pindho |
G: g |
|
|
|
10: 3/8 |
FF: Utas Wanita Double |
T: NPT |
|
|
|
15: 1/2 |

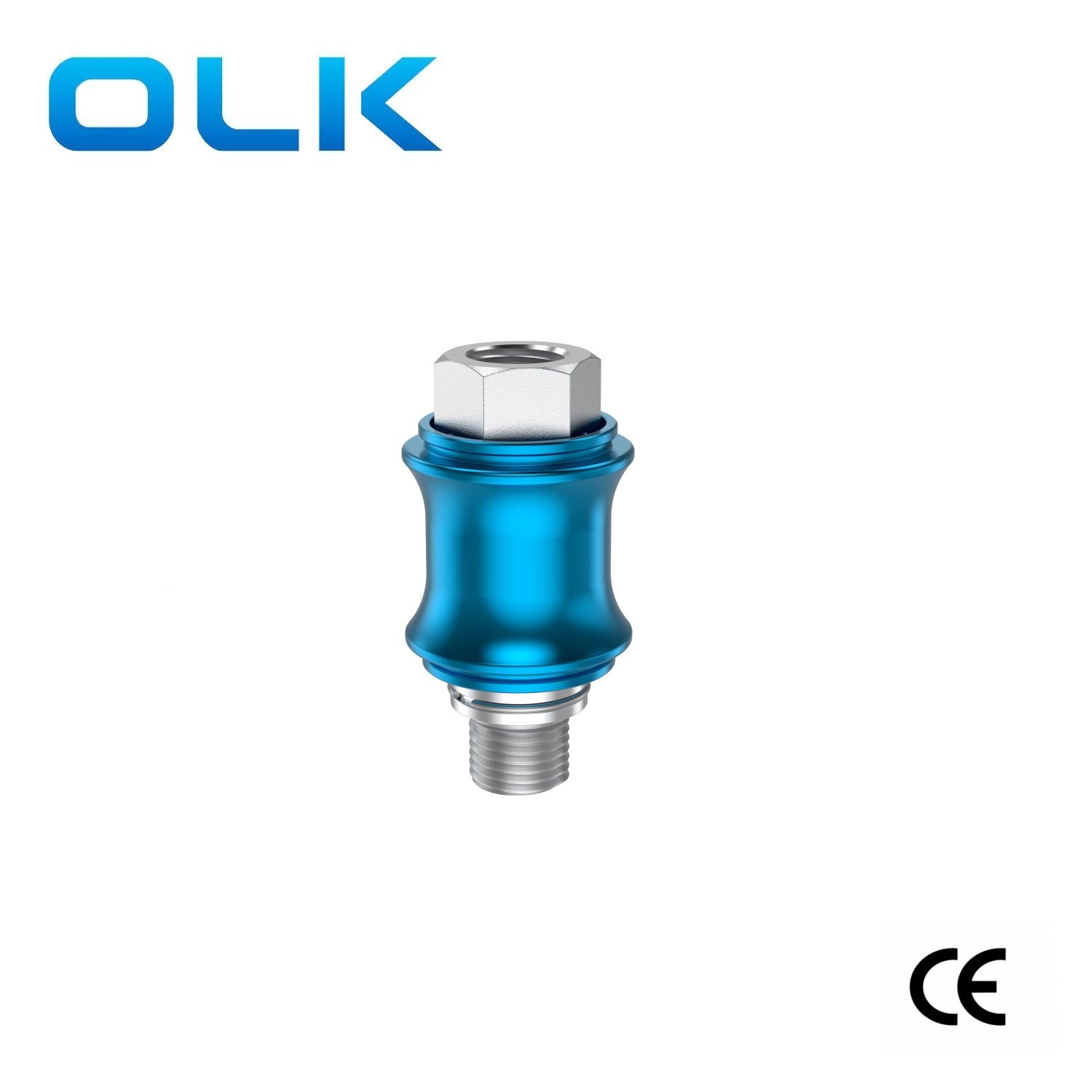

SF: Utas lanang lan wadon |
|
|
|
|
20: 3/4 |
|
|
|
|
|
25: 1 |
|
|
Fitur Produk:
1 .. macem-macem sambungan sambungan internal lan eksternal, cocog kanggo macem-macem sistem piping:
2. Gelang lancar kanthi umpan balik taktik sing apik.
3. Area aliran sing efektif.
4. Hard anodized permukaan ing spool, lan perawatan anodisasi ing permukaan awak katve, njaga vibranci warna kanggo wektu sing lengkap.
|
medium sing digunakake |
Udhara (disaring liwat saringan luwih saka 40μm) |
|
Tumindak |
Tindakan langsung manual |
|
Jumlah posisi |
Loro posisi telung cara |
|
Lubricating |
ora perlu |
|
Range Pressure MPA (PSI) |
0~1.0 (~ 145) |
|
Resistensi Tekanan Dijamin |
1.5MPA (215psi) |
|
Suhu suhu ° C |
-20~70 |
|
Bahan Biru |
Aloi Aluminium |
|
model |
Diameteripun port |
Wilayah salib-bagean MM² (nilai CV) |
|
Hsv06 |
G1 / 8 |
12,0 (0.67) |
|
HSV08 |
G1 / 4 |
40.0 (2.20) |
|
HSV10 |
G3 / 8 |
60.0 (3,50) |
|
Hsv15 |
G1 / 2 |
140.0 (7.80) |
|
HSV20 |
G3 / 4 |
250.0 (13,80) |
|
Hsv25 |
G1 |
392.0 (21.78) |
