Brand:
OLKType:
L Type Elbow BSPP Male Thread (G Thread)Color:

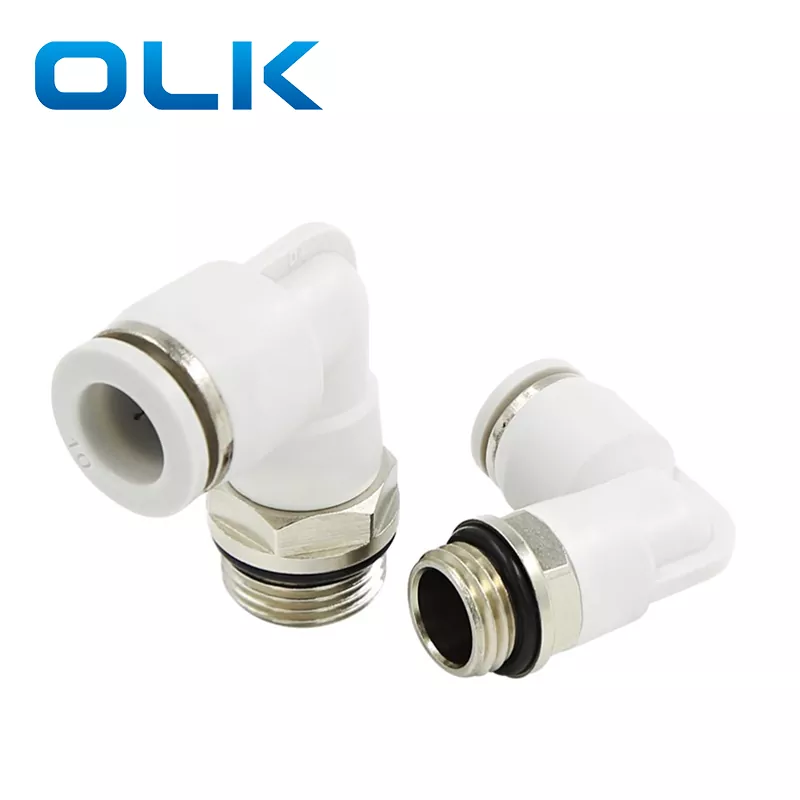

Black,White,BluePL-G lanang Elbow Push In Tube Fitting minangka konektor sikut 90 derajat lan benang G sing cocog kanggo digunakake ing papan sing dikurung utawa ing ngendi pangalihan tabung dibutuhake. Dilengkapi dering sealing kanggo nyegah bocor udara utawa cairan.

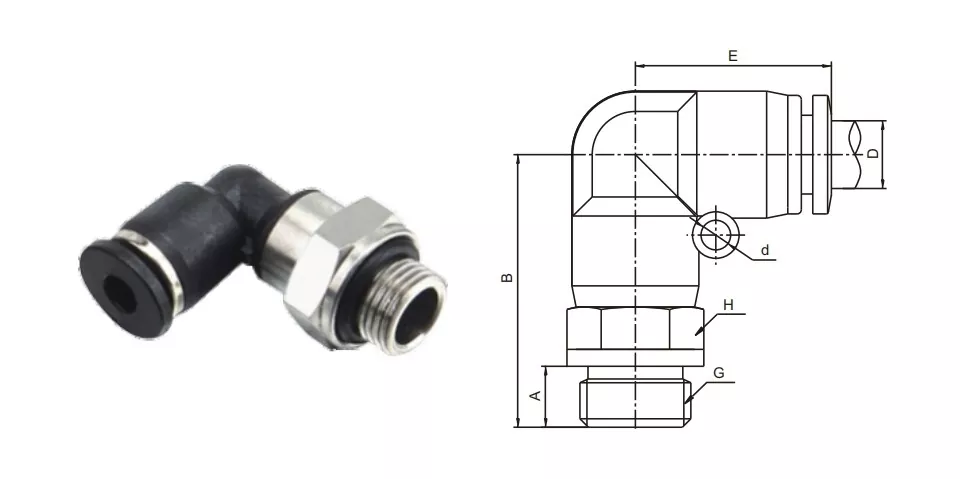

Fitur produk: Struktur kompak, cocok kanggo spasi cilik; Desain setir sudut tengen, trep kanggo kabel trakea
|
Kode pesenan |
|||
|
PL |
8 |
-- |
G01 |
|
Model |
Ukuran tabung (metrik) |
|
Tipe Utas (Utas tabung lurus 55°) |
|
|
4: 4mm |
|
01:G1/8 |
|
|
6: 6mm |
|
02:G1/4 |
|
|
8: 8mm |
|
03:G3/8 |
|
|
10:10 mm |
|
04:G1/2 |
|
|
12:12 mm |
|
|
|
|
14:14 mm |
|
|
|
|
16:16 mm |
|
|
|
Cairan |
Udara/banyu (kondisional)/vakum |
|
Tekanan operasi |
0-1.0Mpa |
|
Tekanan vakum |
-100Kpa (10 Torr) |
|
Suhu operasi |
-10-60 ℃ |
|
Bahan |
NYLON(PA),Polyurethane(PU) |
|
|
D |
G |
A |
B |
E |
H |
d |
|
PL4-G01 |
4 |
G1/8 |
6 |
24 |
19.7 |
14 |
- |
|
PL4-G02 |
G1/4 |
8 |
25 |
19.7 |
17 |
- |
|
|
PL6-G01 |
6 |
G1/8 |
6 |
24 |
20.8 |
14 |
3.5 |
|
PL6-G02 |
G1/4 |
8 |
25 |
20.8 |
17 |
3.5 |
|
|
PL6-G03 |
G3/8 |
10 |
25 |
20.8 |
20 |
3.5 |
|
|
PL6-G04 |
G1/2 |
12 |
25 |
20.8 |
24 |
3.5 |
|
|
PL8-G01 |
8 |
G1/8 |
6 |
25 |
23.5 |
14 |
4.5 |
|
PL8-G02 |
G1/4 |
8 |
25 |
23.5 |
17 |
4.5 |
|
|
PL8-G03 |
G3/8 |
10 |
26 |
23.5 |
20 |
4.5 |
|
|
PL8-G04 |
G1/2 |
12 |
29 |
23.5 |
24 |
4.5 |
|
|
PL10-G01 |
10 |
G1/8 |
6 |
29 |
27.4 |
14 |
4.5 |
|
PL10-G02 |
G1/4 |
8 |
29 |
27.4 |
17 |
4.5 |
|
|
PL10-G03 |
G3/8 |
10 |
30 |
27.4 |
20 |
4.5 |
|
|
PL10-G04 |
G1/2 |
12 |
31 |
27.4 |
24 |
4.5 |
|
|
PL12-G02 |
12 |
G1/4 |
8 |
31 |
30.3 |
17 |
5 |
|
PL12-G03 |
G3/8 |
10 |
33 |
30.3 |
20 |
5 |
|
|
PL12-G04 |
G1/2 |
12 |
33 |
30.3 |
24 |
5 |
|
|
PL16-G03 |
16 |
G3/8 |
10 |
43 |
34 |
24 |
4 |
|
PL16-G04 |
G1/2 |
12 |
45 |
34 |
24 |
4 |
|
Jeneng / jinis |
Katrangan Struktur Antarmuka |
|
PC Siku |
Sambungan pipa ditekuk ing sudut 90 °, lan ujung liyane diikat ing njero |
|
PL Siku |
Siji ujung dilebokake lan ujung liyane duwe benang njaba 90 ° |
|
PV Siku |
Ujung loro kasebut minangka jinis sisipan tabung, kanthi tikungan 90 ° |
Konektor PL digawe saka materi apa?
tembaga
Apa jeneng bagean fitting tabung nyambungake?

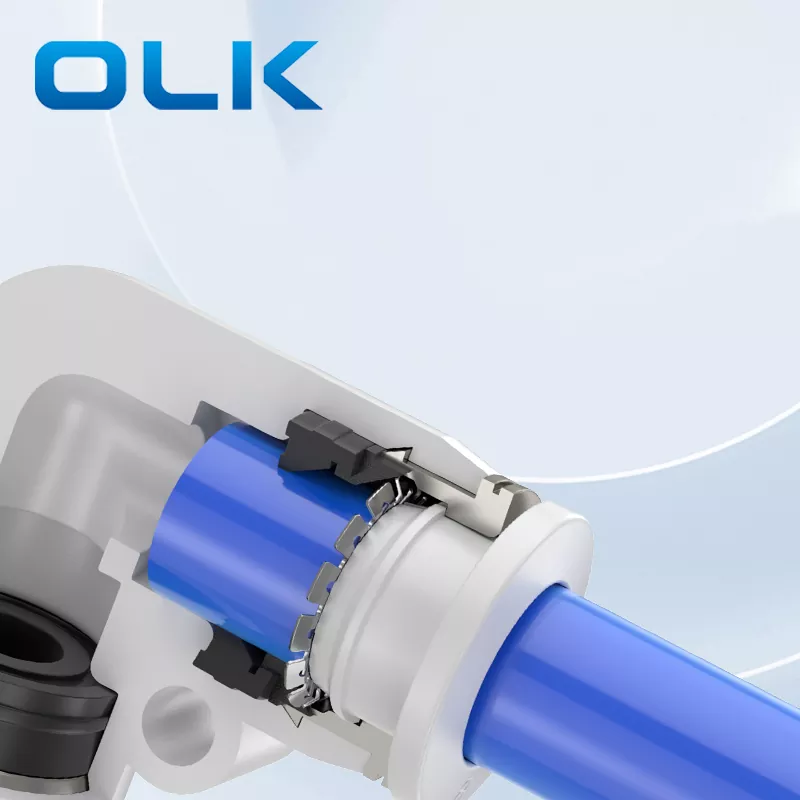

Cepet nyambungake tabung pas struktur internal: Rilis, paduan seng kartu set, kunci klip spring, kunci lengan, clasp sealing ring, kekuatan tinggi plastik
Apa jinis utas PL iku?
Iki minangka benang metrik, diwakili M.
Apa tegese 'Elbow' ing pas pneumatik?
Fitting Elbow: Pas pneumatik sing ngidini tabung ngganti arah, biasane ing sudut 90 derajat.
